Cylinder Head Installation - Left

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 36660-A  Torque Angle Meter

  1. Install the cylinder head locator dowel pins, if necessary.
  2. Inspect the cylinder head locator dowel pins for proper installation.
  3. Install the cylinder head gasket.

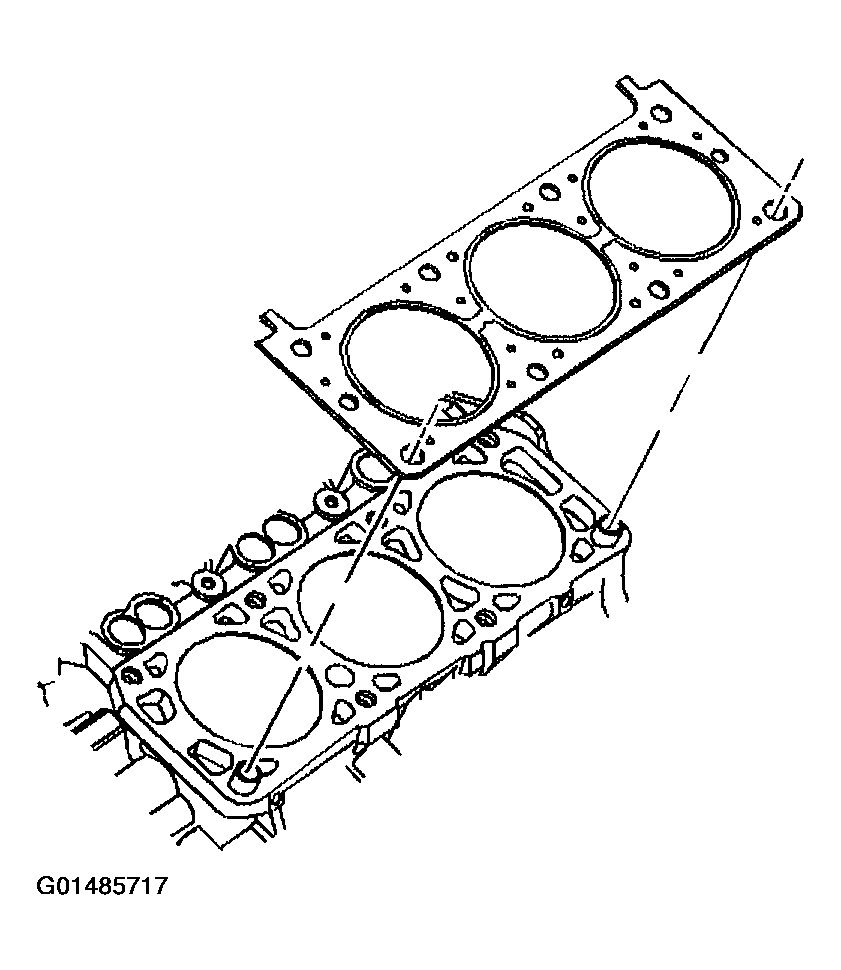

    Fig 1: Installing Cylinder Head Gasket
    G01485717Courtesy of GENERAL MOTORS CORP.
  4. Install the cylinder head.

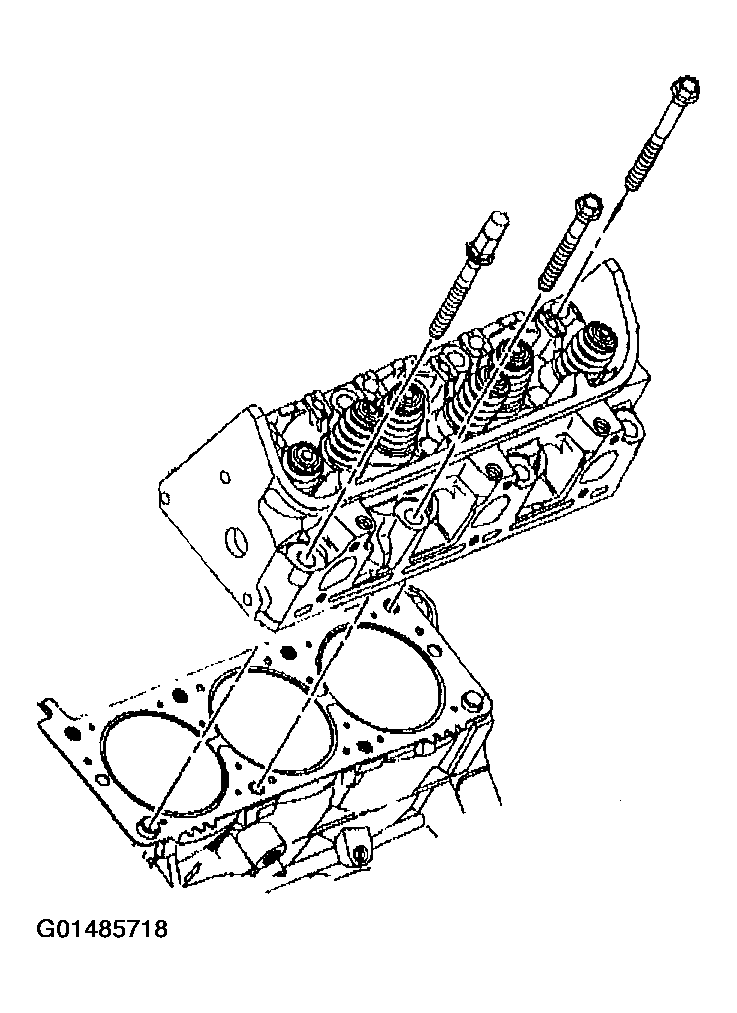

    Fig 2: Installing Cylinder Head
    G01485718Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the cylinder head bolts.

    Tighten

    Tighten the cylinder head bolts in sequence to 60 N.m (44 lb ft). Turn the bolts an additional 95 degrees using the J 36660-A.

    Fig 3: Installing Cylinder Head Bolts In Sequence
    G01485719Courtesy of GENERAL MOTORS CORP.
