Crankshaft and Bearings Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft position sensor stud.
  2. Remove the crankshaft position sensor from the side of the block.

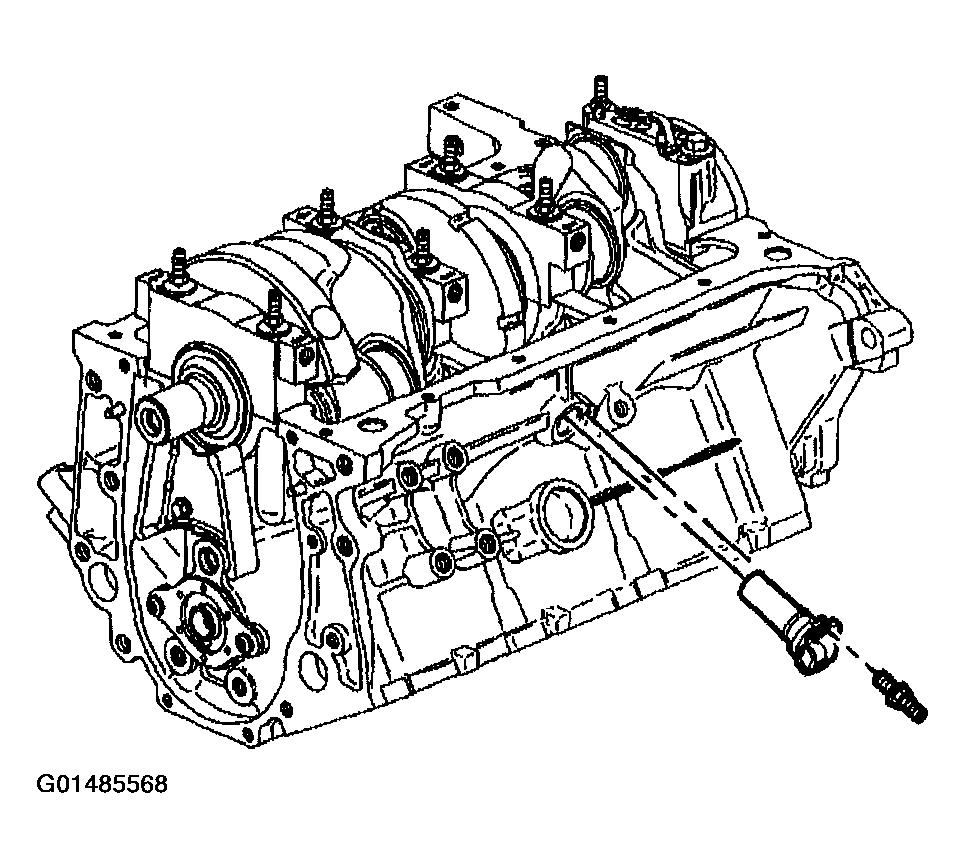

    Fig 1: Removing Crankshaft Position Sensor And Stud
    G01485568Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft main bearing cap bolt and studs.
  4. Remove the crankshaft main bearing caps and lower crankshaft main bearing halves.

    Important:  Use Care when handling the crankshaft. Avoid damage to the crankshaft position sensor reluctor wheel teeth. Nicks, burrs or other damage to the teeth may effect On-board Diagnostics - OBD II system performance.

  5. Remove the crankshaft.
  6. Remove the upper crankshaft main bearing halves.

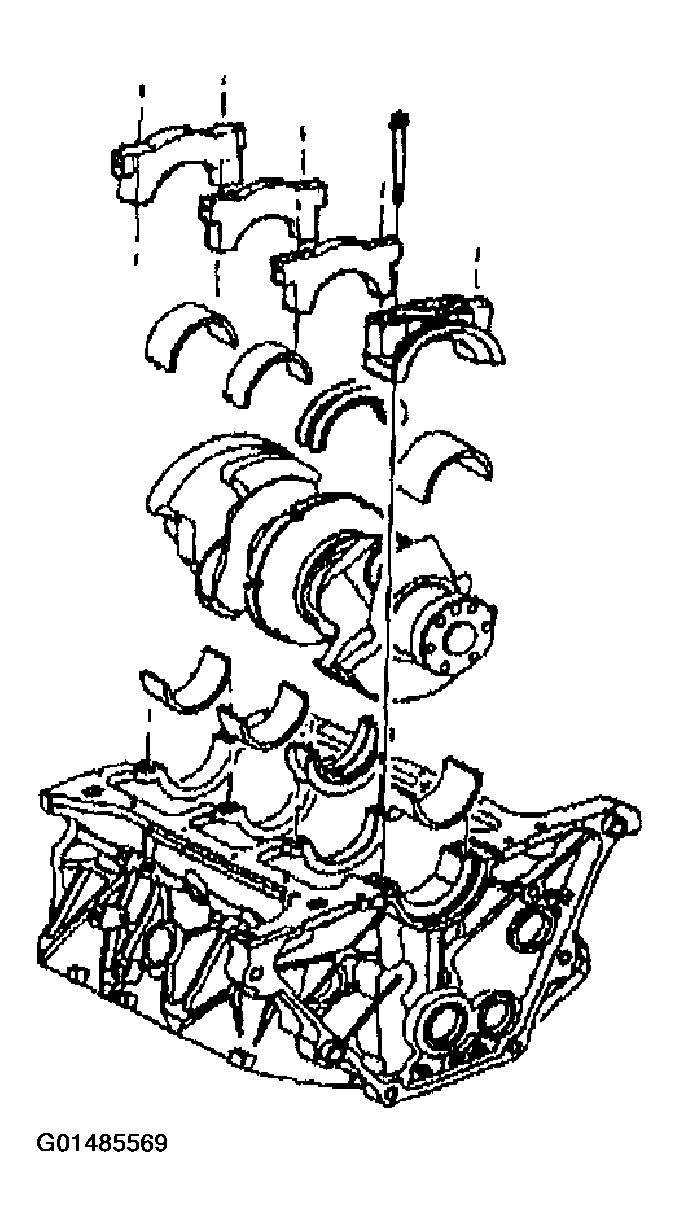

    Fig 2: Removing Crankshaft Main Bearing Cap Bolt And Studs, And Lower Crankshaft Main Bering Halves
    G01485569Courtesy of GENERAL MOTORS CORP.
