Crankshaft Front Oil Seal Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Pry out the crankshaft front oil seal using a suitable tool. Use care not to damage the engine front cover or the crankshaft.

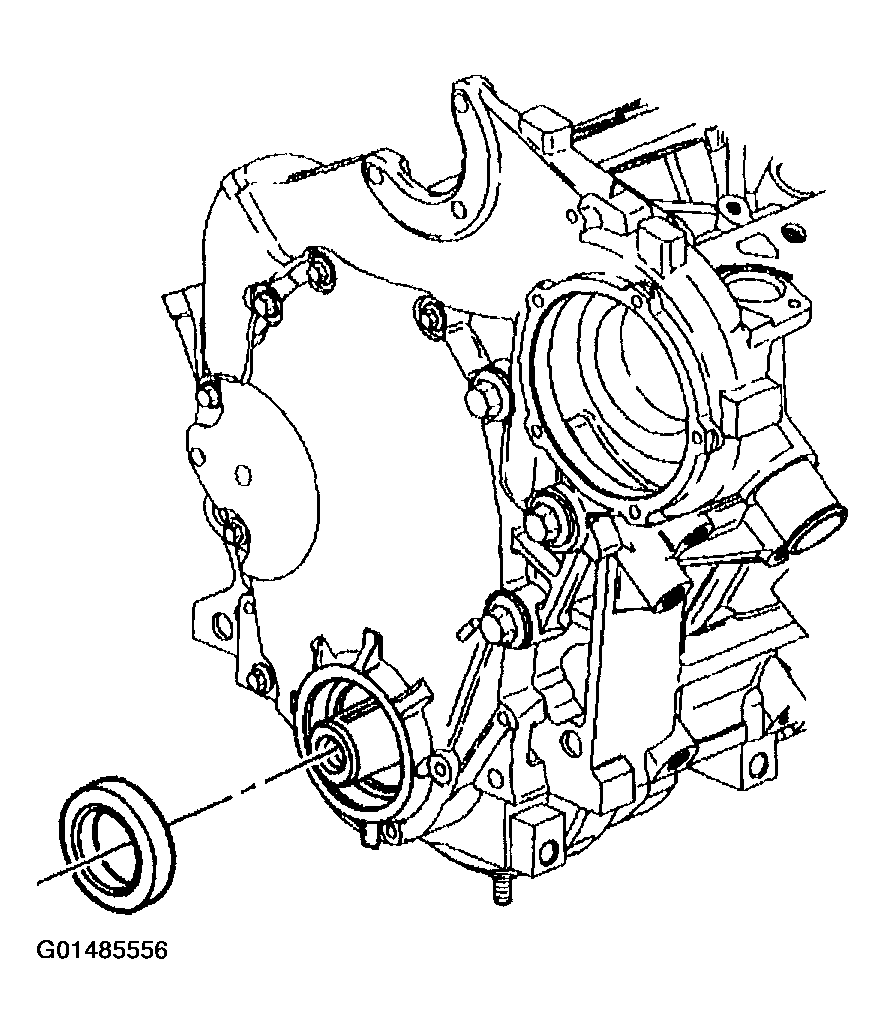

Fig 1: Prying Out Crankshaft Front Oil Seal
G01485556Courtesy of GENERAL MOTORS CORP.
