Crankshaft Front Oil Seal Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 35468  Cover Aligner and Seal Installer

  1. Align the J 35468  and the crankshaft front oil seal with the engine front cover and crankshaft.
  2. Install the crankshaft front oil seal using the J 35468  and a suitable tool.

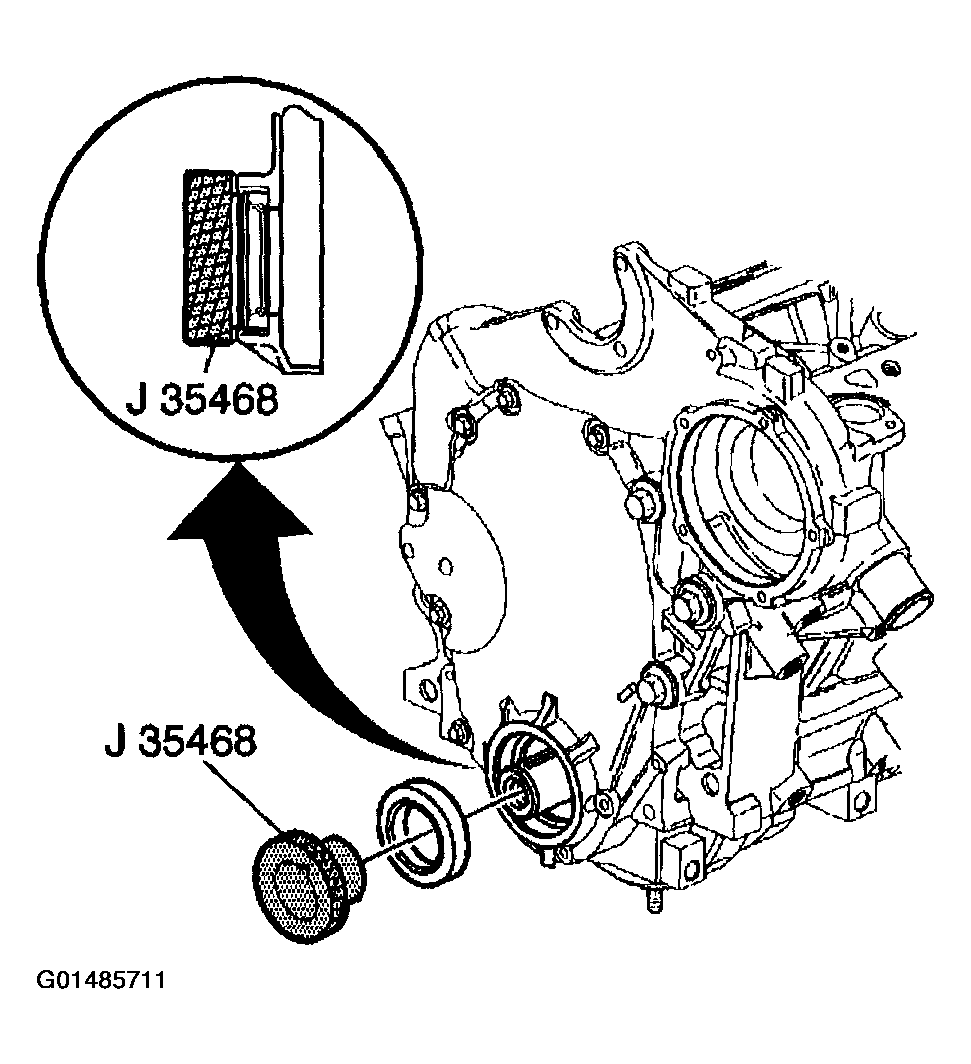

    Fig 1: Installing Crankshaft Front Oil Seal Using Cover Aligner And Seal Installer
    G01485711Courtesy of GENERAL MOTORS CORP.
