Crankshaft Balancer Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 24420-C  Harmonic Balancer Puller

  1. Remove the crankshaft balancer retaining bolt and washer.

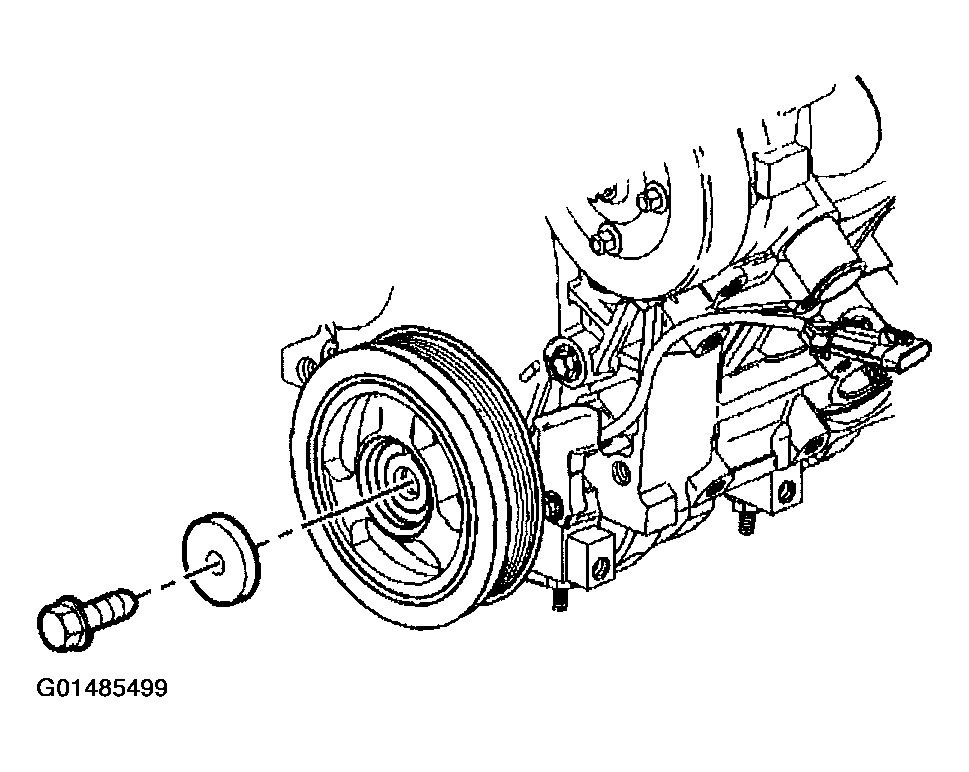

    Fig 1: Removing Crankshaft Balancer Retaining Bolt And Washer
    G01485499Courtesy of GENERAL MOTORS CORP.
  2. Remove the crankshaft balancer using the J 24420-C.

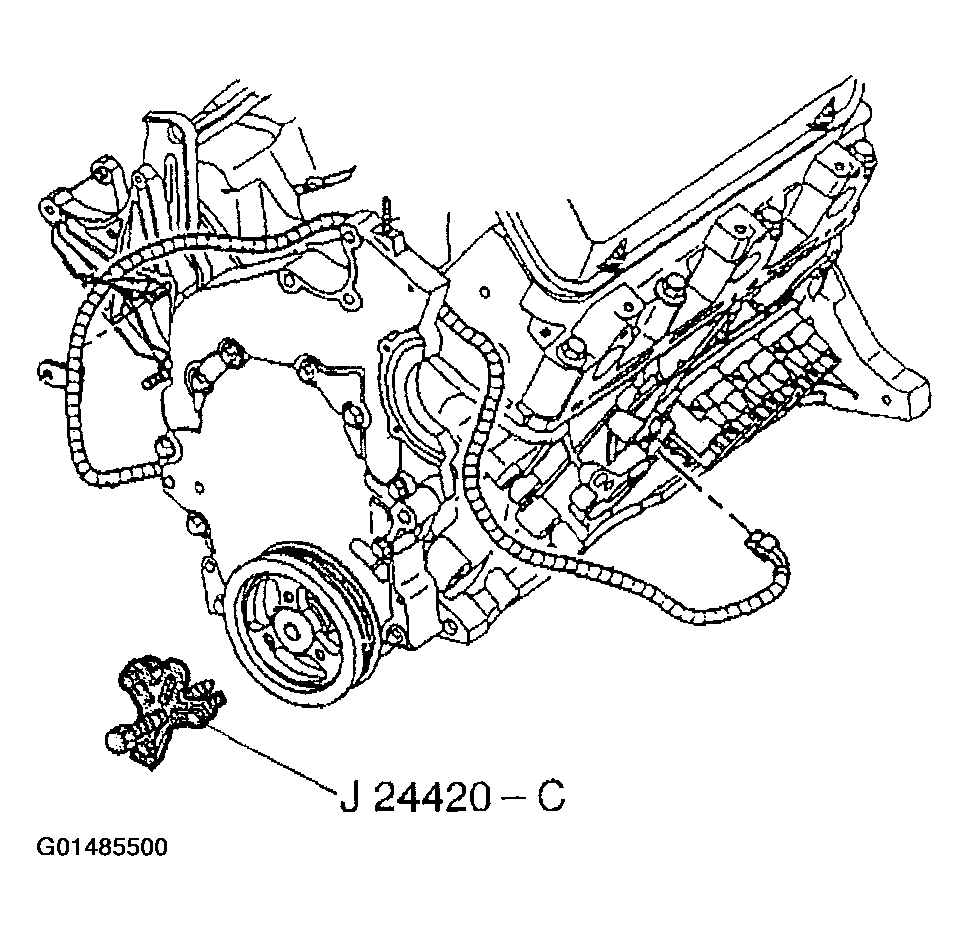

    Fig 2: Removing Crankshaft Balancer Using Suitable Tool
    G01485500Courtesy of GENERAL MOTORS CORP.
