Camshaft Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft position sensor and sensor bolt.

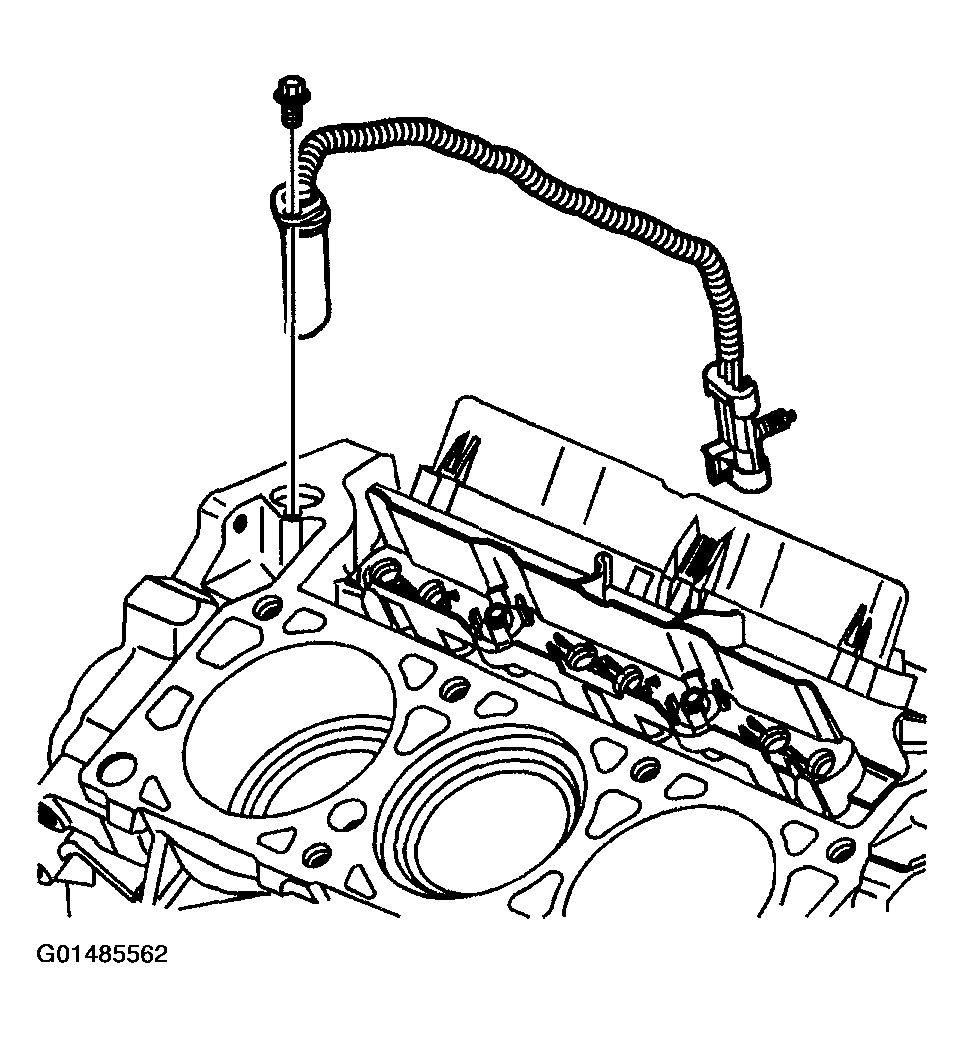

    Fig 1: Removing Camshaft Position Sensor And Sensor Bolt
    G01485562Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft thrust plate screws.
  3. Remove the camshaft thrust plate.

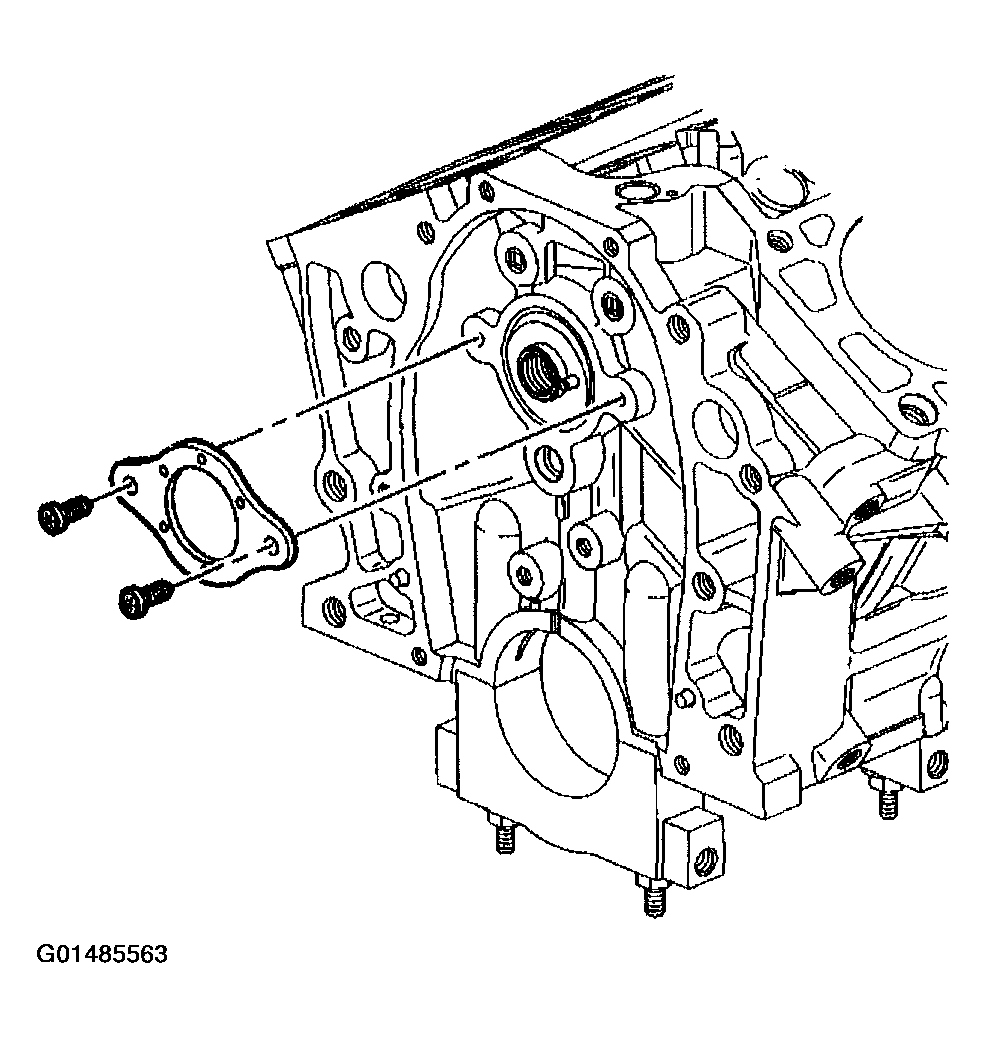

    Fig 2: Removing Camshaft Thrust Plate Screws And Plate
    G01485563Courtesy of GENERAL MOTORS CORP.
    NOTE: All camshaft journals are the same diameter, so care must be used in removing or installing the camshaft to avoid damage to the camshaft bearings.
  4. Complete the following steps in order to remove the camshaft:
    1. 4.1. Install a large screwdriver in the camshaft bolt hole. Do not damage the threads.
    2. 4.2. Carefully rotate and pull the camshaft out of the camshaft bearings.

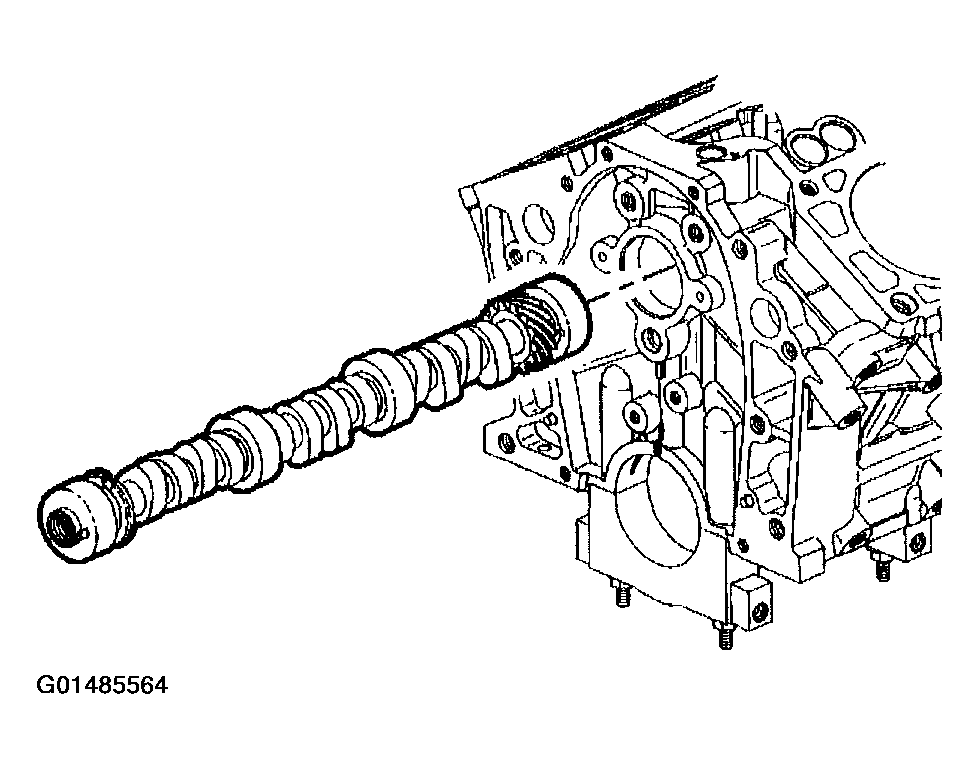

    Fig 3: Pulling Camshaft Out Of Camshaft Bearings
    G01485564Courtesy of GENERAL MOTORS CORP.
