Camshaft Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Coat the camshaft journals with clean engine oil.
Coat the camshaft lobes with prelube GM P/N United States 12345501, GM P/N Canada 992704 or the equivalent.
Install the camshaft using the following procedure:
1. 3.1. Install a large screwdriver into the camshaft bolt hole for support. Do not damage the threads.
2. 3.2. Rotate the camshaft while installing the camshaft into the camshaft bearings.

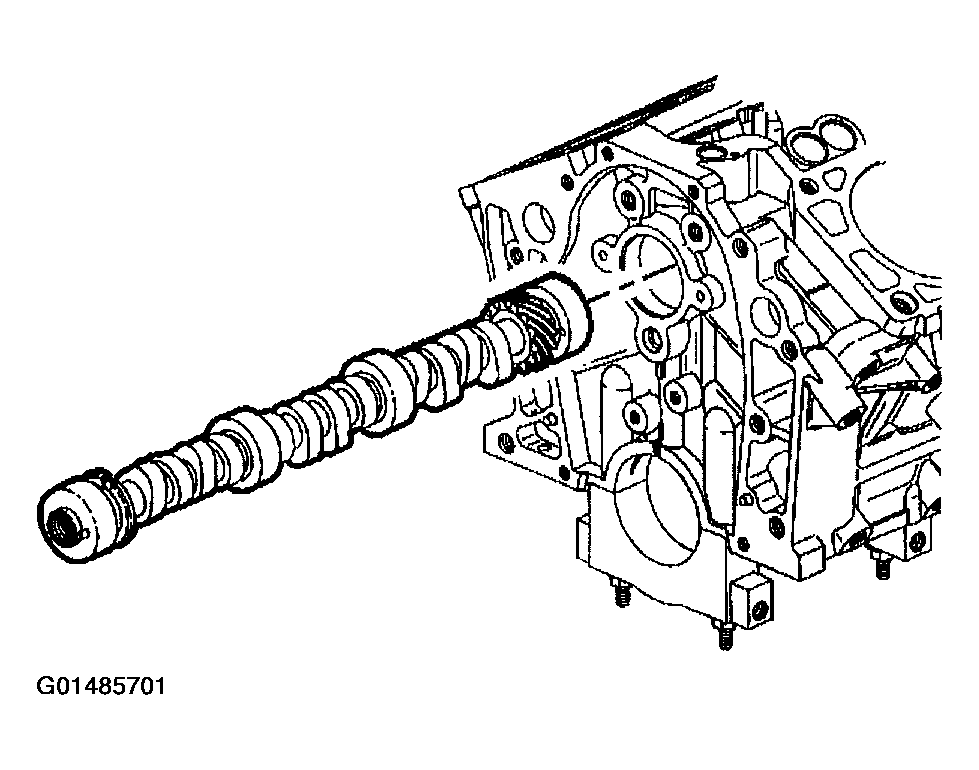

Fig 1: Installing Camshaft
Courtesy of GENERAL MOTORS CORP.
Install the camshaft thrust plate.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the camshaft thrust plate screws.
Tighten

Tighten the camshaft thrust plate screws to 10 N.m (89 lb in).

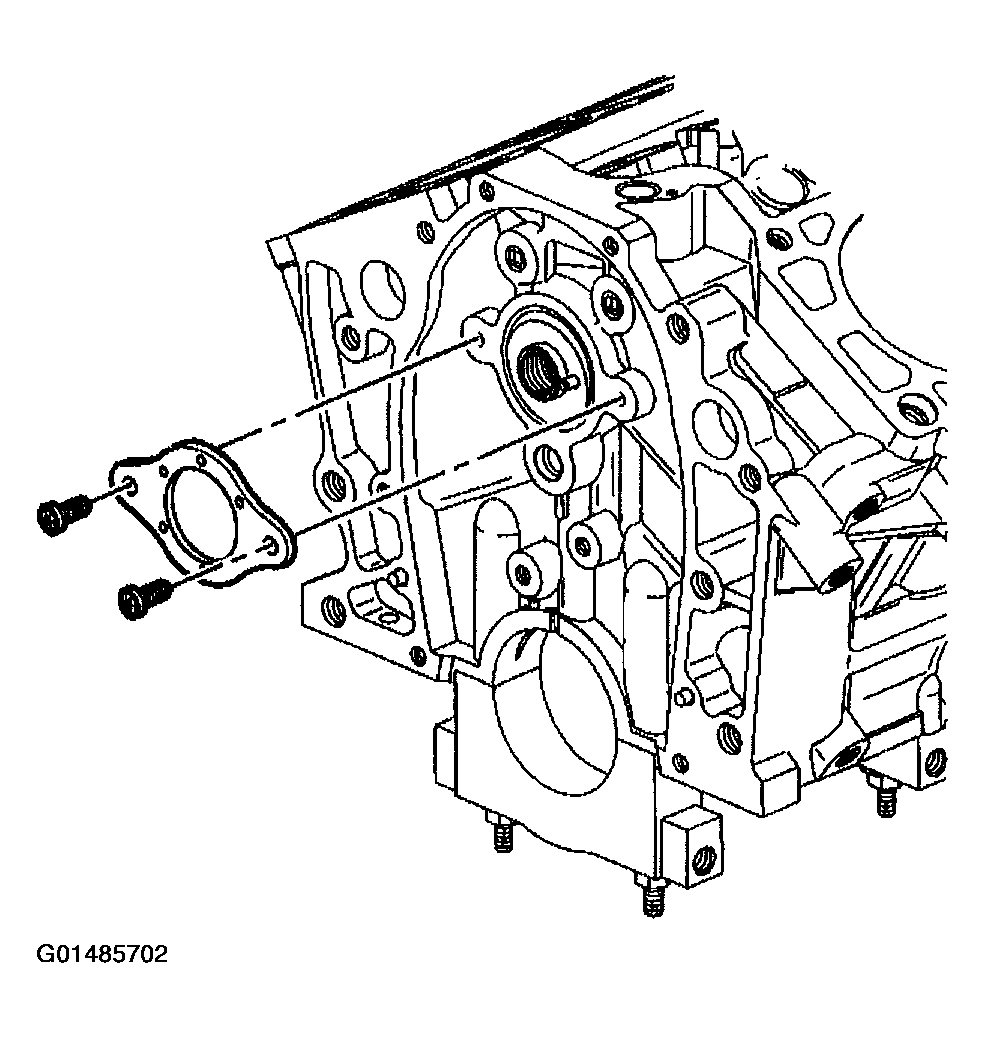

Fig 2: Installing Camshaft Thrust Plate And Screws
Courtesy of GENERAL MOTORS CORP.
Install the camshaft position sensor.
Install the camshaft position sensor bolt.
Tighten

Tighten the camshaft position sensor bolt to 10 N.m (89 lb in).

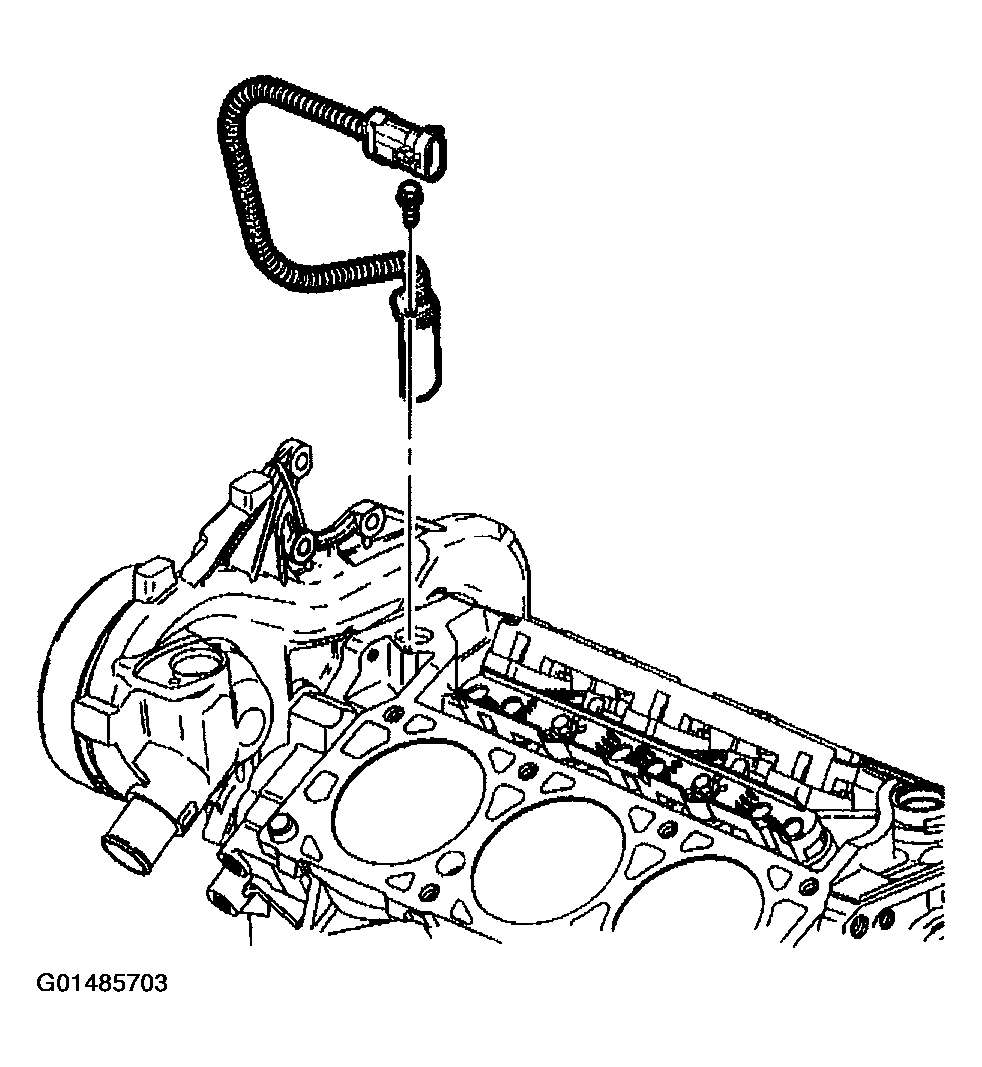

Fig 3: Installing Camshaft Position Sensor And Bolt
Courtesy of GENERAL MOTORS CORP.
