Camshaft Bearing Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 33049 Camshaft Bearing Remover/Installer

Select the expander assembly and driving washer.
Assemble the J 33049.

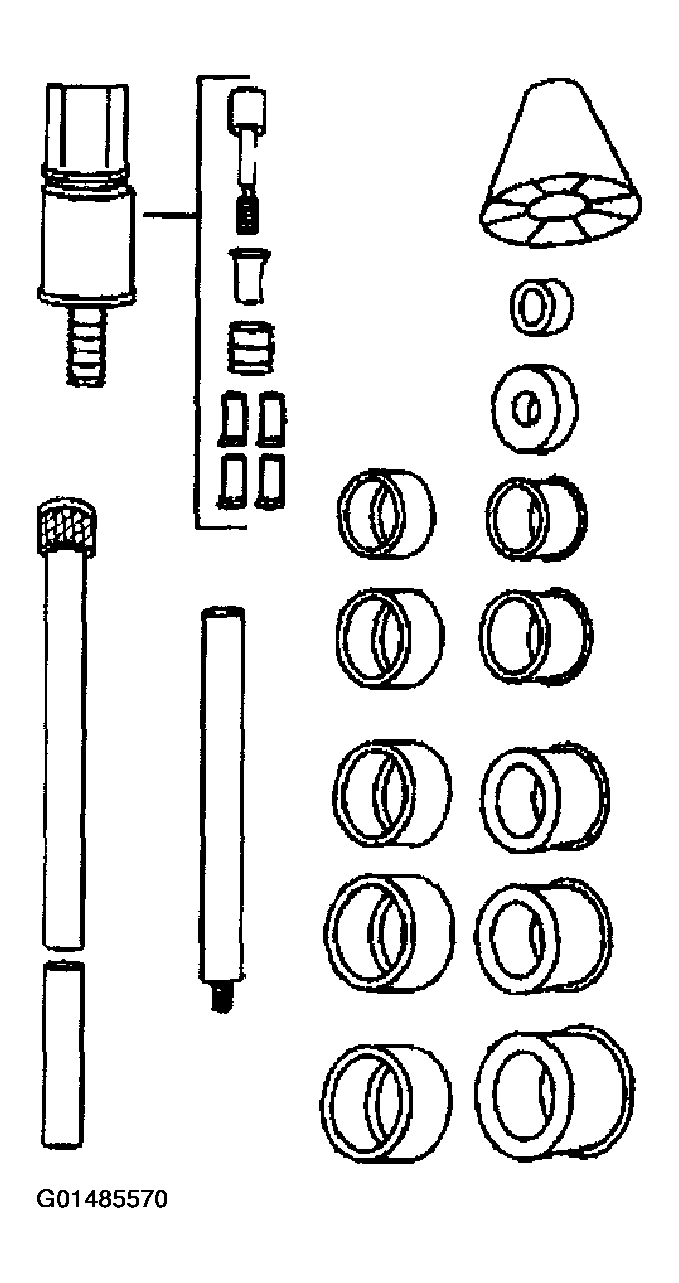

Fig 1: Identifying Expander Assembly And Driving Washer
Courtesy of GENERAL MOTORS CORP.
Drive out the camshaft bearings. Use the J 33049.

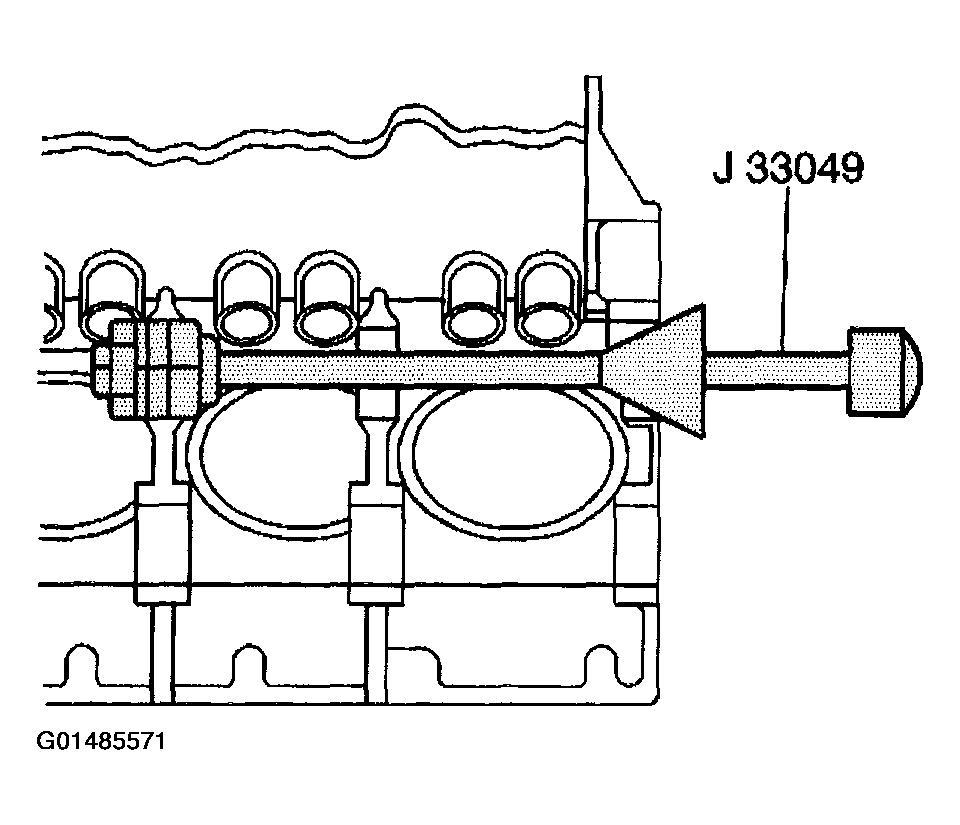

Fig 2: Driving Out Camshaft Bearings
Courtesy of GENERAL MOTORS CORP.
