WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

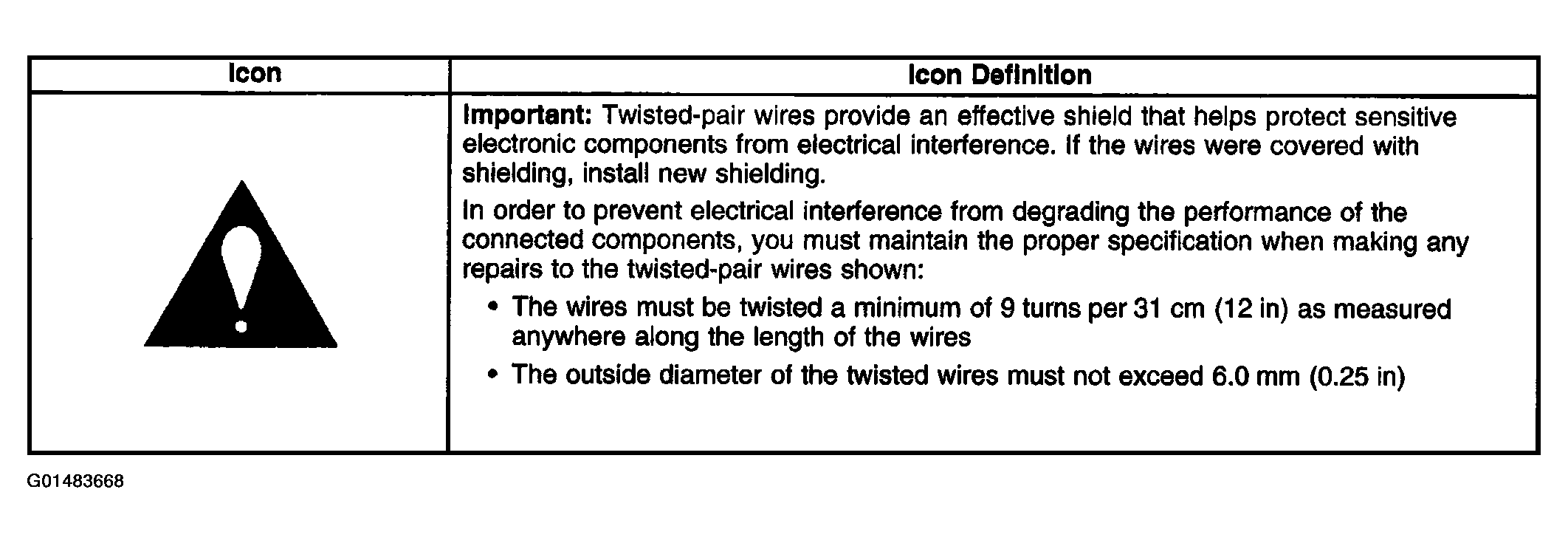

Fig 1: ABS Schematic Icons
Courtesy of GENERAL MOTORS CORP.

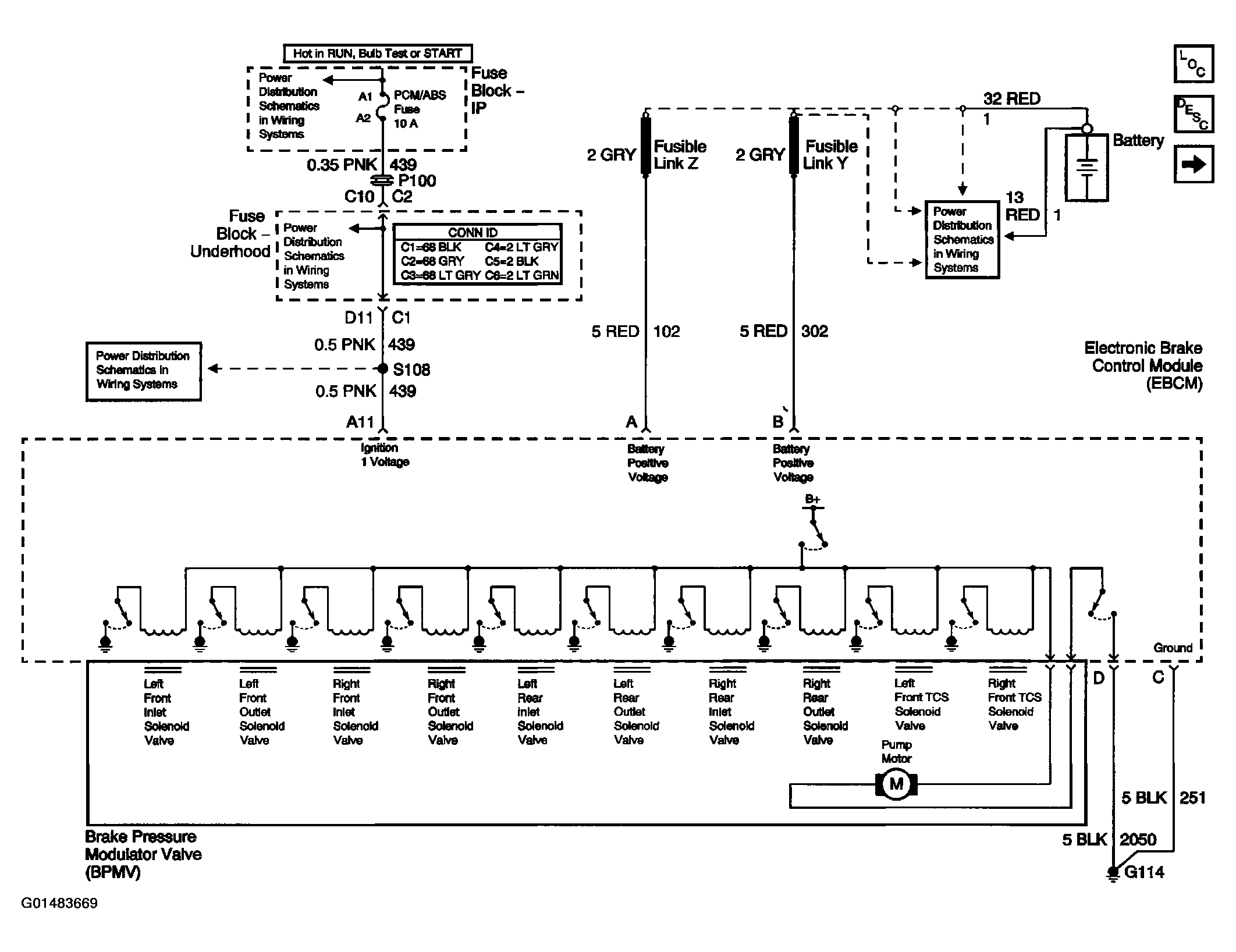

Fig 2: EBCM, Power and Ground Schematics
Courtesy of GENERAL MOTORS CORP.

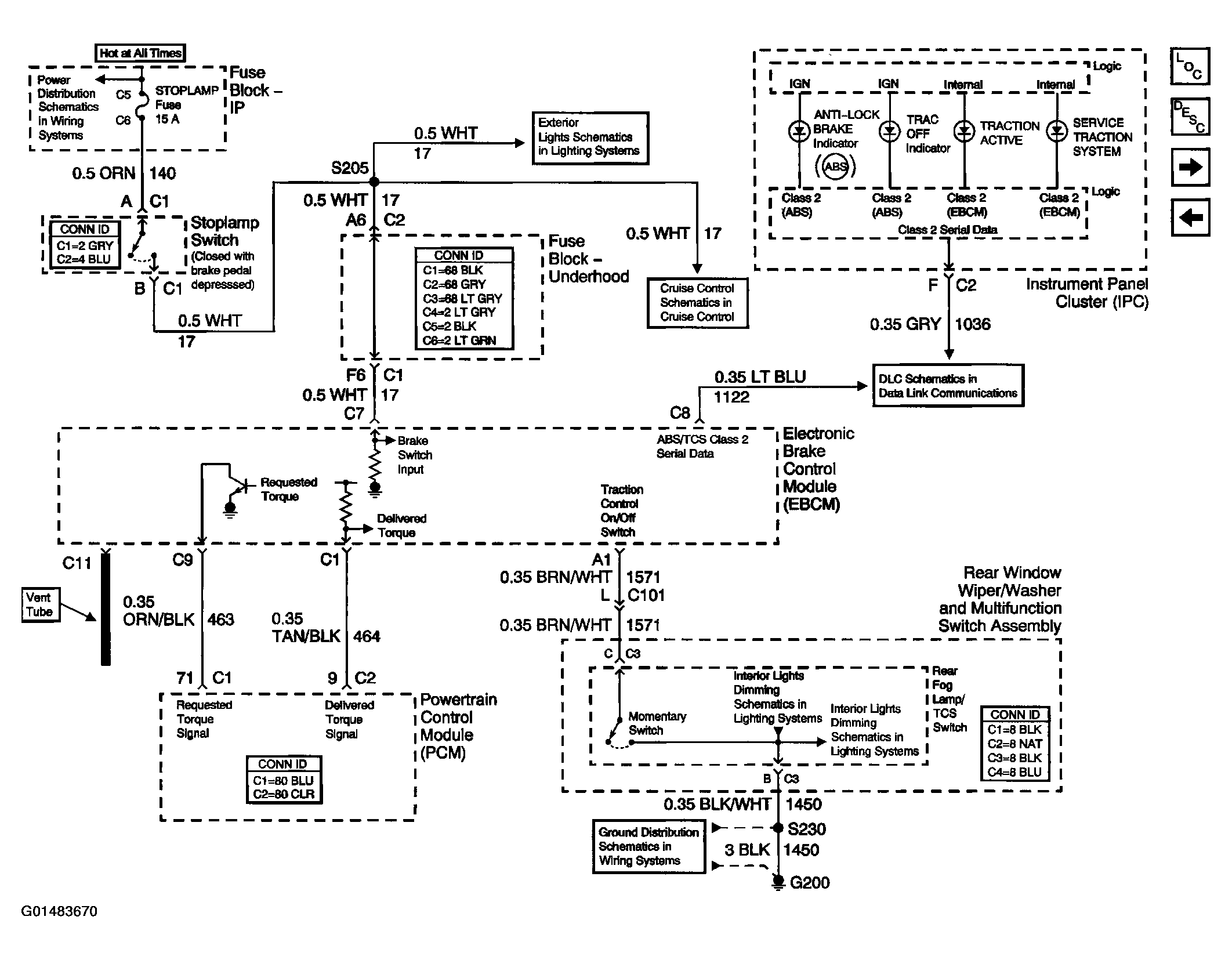

Fig 3: Data Link, MIL, PCM, and Stop Lamp Switch Schematics
