Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The rear wheel speed sensors and rings are integral with the hub and bearing assemblies.

If a speed sensor or a ring needs replacement, replace the entire hub and bearing assembly. Refer to WHEEL BEARING/HUB REPLACEMENT or WHEEL BEARING/HUB REPLACEMENT in Rear Suspension.

  1. Raise and support the vehicle on a suitable hoist. Refer to JACKING AND LIFTING in General Information.
  2. Remove the rear tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  3. Remove the rear wheel speed sensor electrical connector located next to the rear strut.

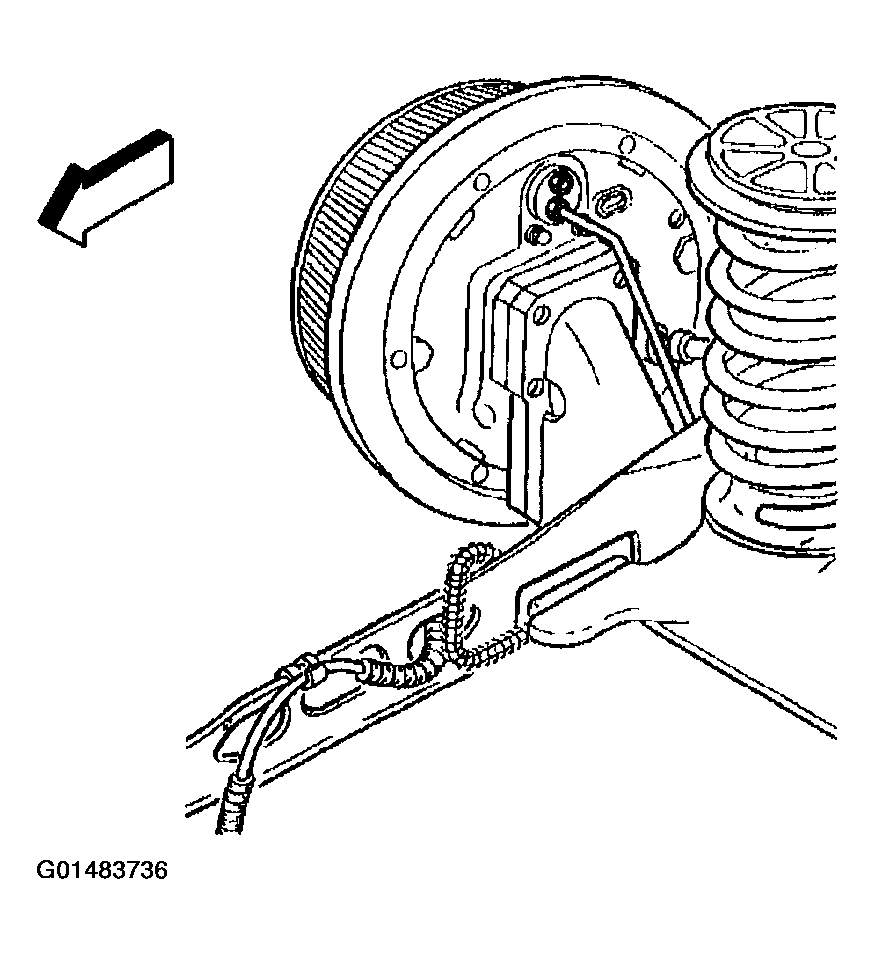

    Fig 1: Removing Rear Tire And Wheel Assembly
    G01483736Courtesy of GENERAL MOTORS CORP.
  4. Remove the hub and bearing assembly (1). Refer to WHEEL BEARING/HUB REPLACEMENT or WHEEL BEARING/HUB REPLACEMENT in Rear Suspension.

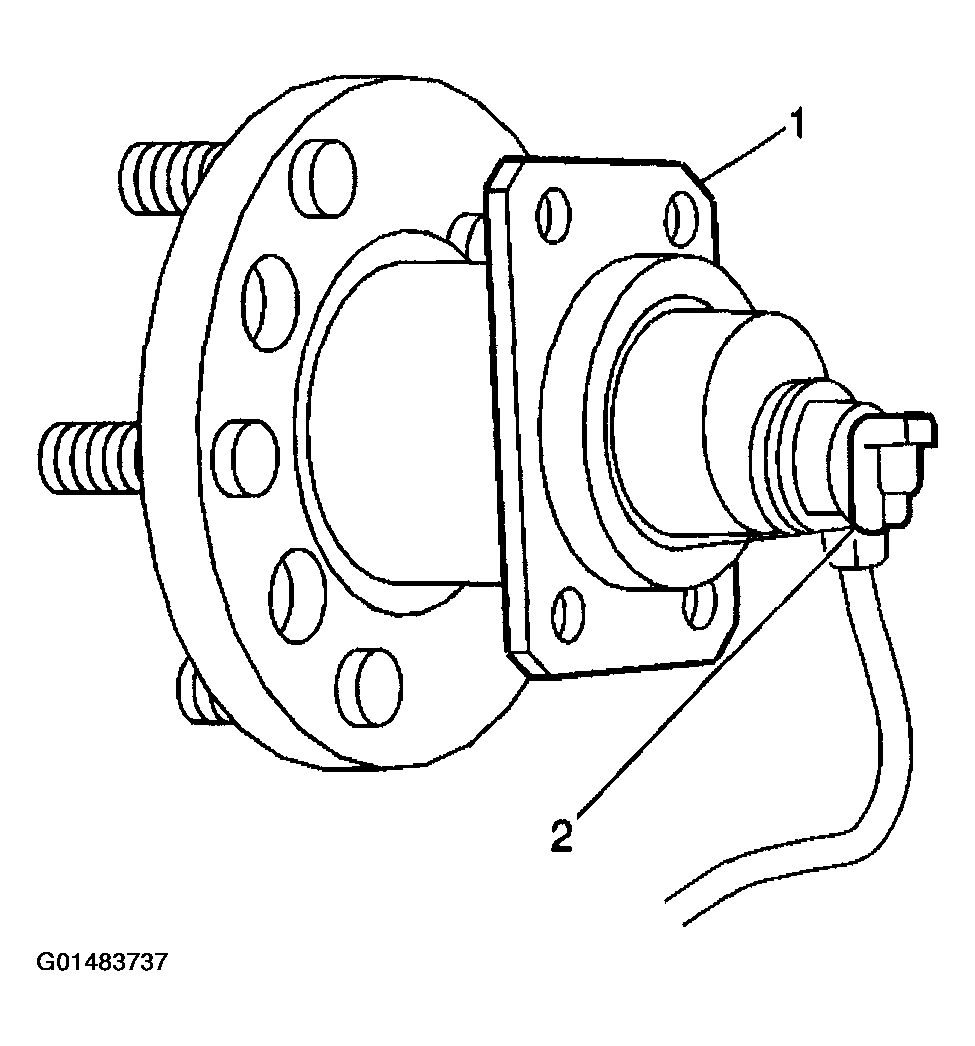

    Fig 2: Removing Hub And Bearing Assembly
    G01483737Courtesy of GENERAL MOTORS CORP.
