Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hub and bearing assembly (1) to the vehicle. Refer to WHEEL BEARING/HUB REPLACEMENT or WHEEL BEARING/HUB REPLACEMENT in Rear Suspension.

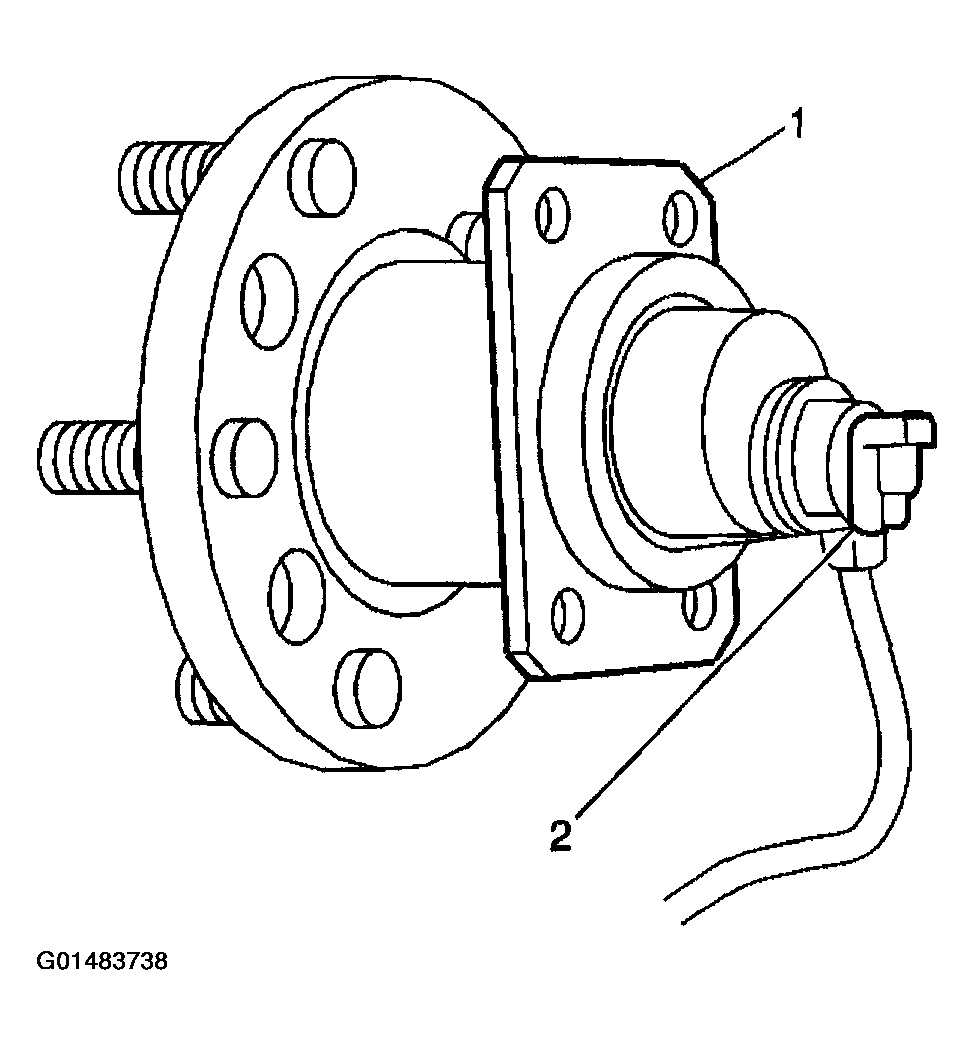

    Fig 1: Installing Hub And Bearing Assembly
    G01483738Courtesy of GENERAL MOTORS CORP.
  2. Install the rear wheel speed sensor electrical connector.
  3. Install the wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  4. Lower the vehicle.
  5. Turn the ignition switch to the RUN position with the engine off.
  6. Perform Diagnostic system check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS   .

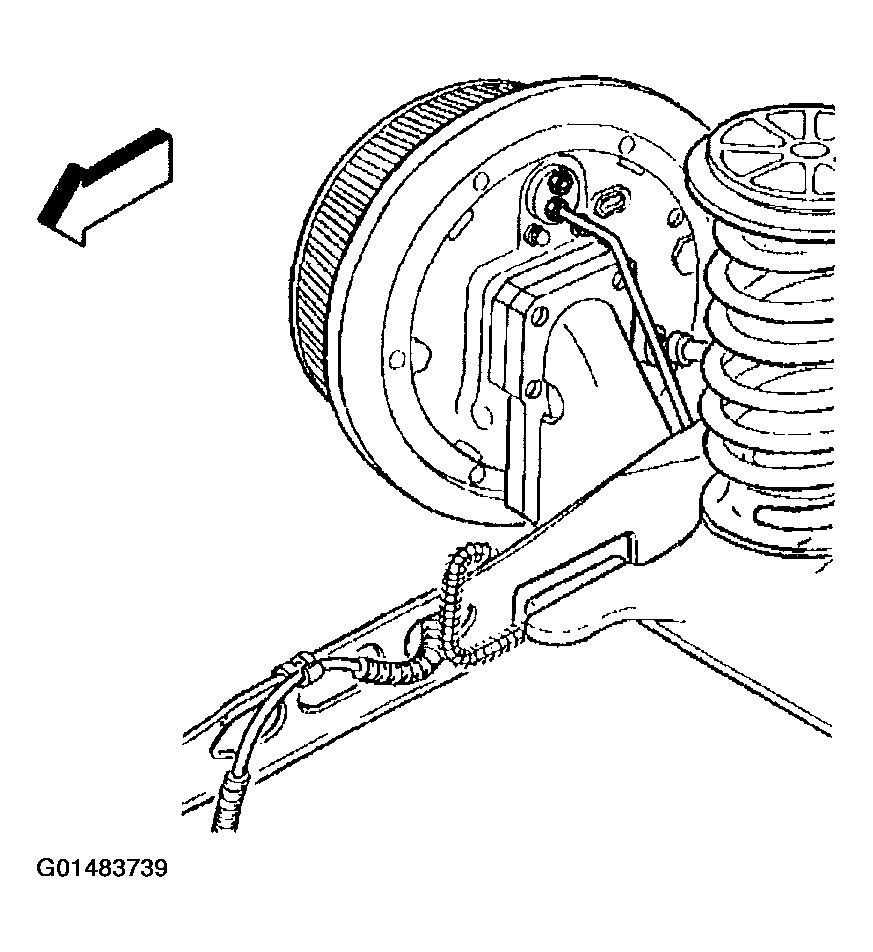

    Fig 2: Installing Wheel And Tire Assembly
    G01483739Courtesy of GENERAL MOTORS CORP.
