Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The front wheel speed sensors and rings are integral with the hub and bearing assemblies.

If a speed sensor or a ring needs replacement, replace the entire hub and bearing assembly. Do not service the harness pigtail individually because the harness pigtail is part of the sensor. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT  in Front Suspension.

  1. Raise and support the vehicle on a suitable hoist. Refer to JACKING AND LIFTING in General Information.
  2. Remove the front tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  3. Remove the front wheel speed sensor jumper harness electrical connector (1) from the front wheel speed sensor connector (3).

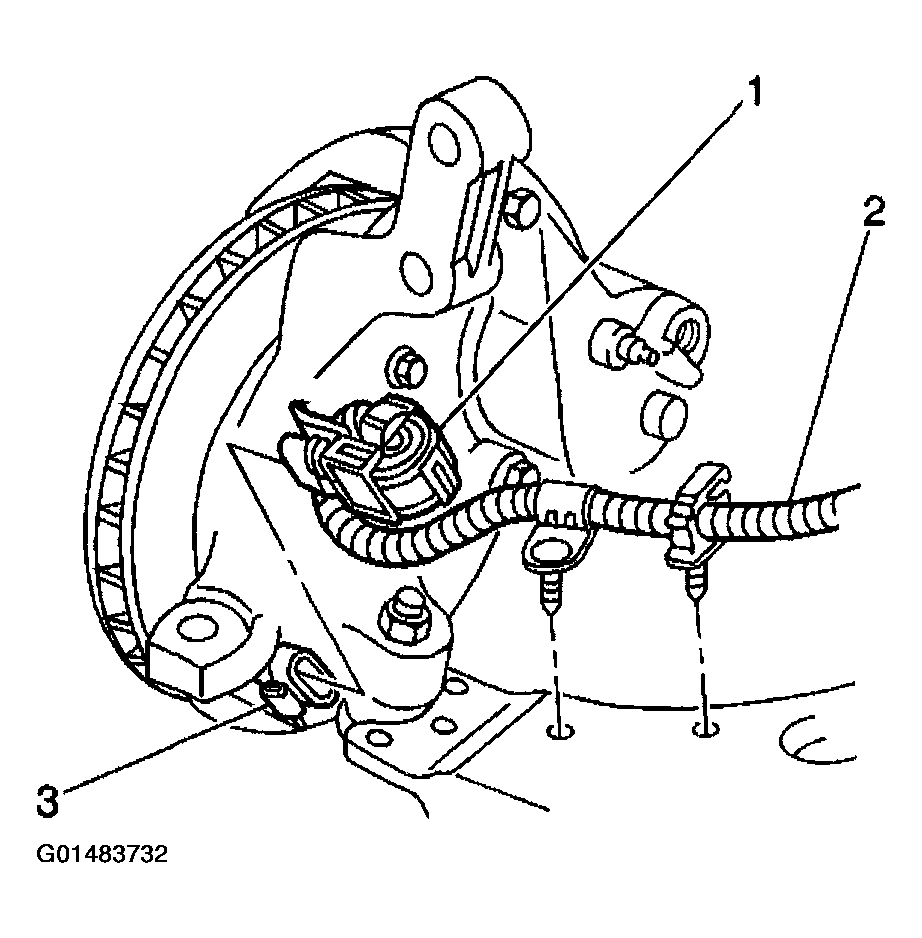

    Fig 1: Removing Front Wheel Speed Sensor Jumper Harness Electrical Connector From Front Wheel Speed Sensor Connector
    G01483732Courtesy of GENERAL MOTORS CORP.
  4. Remove the hub and bearing assembly (2). Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT  in Front Suspension.

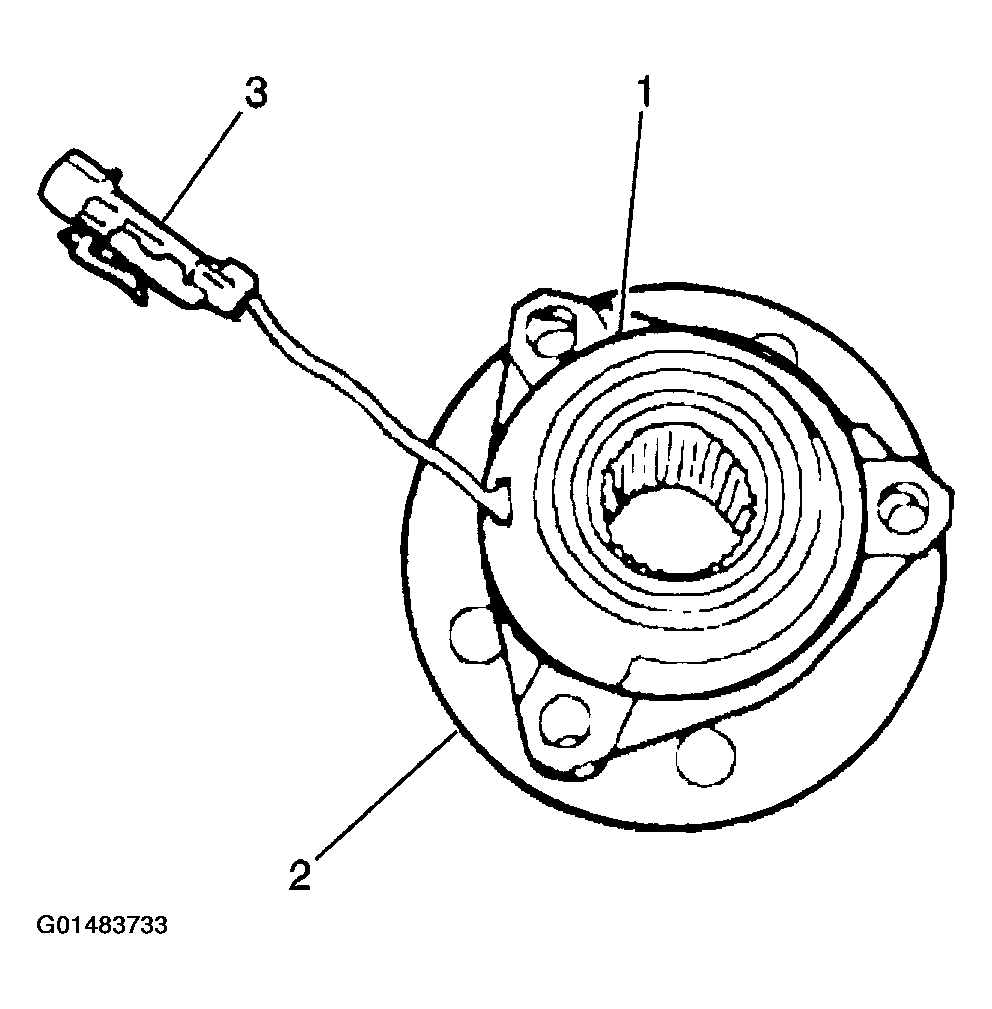

    Fig 2: Removing Hub And Bearing Assembly
    G01483733Courtesy of GENERAL MOTORS CORP.
