Test Description
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

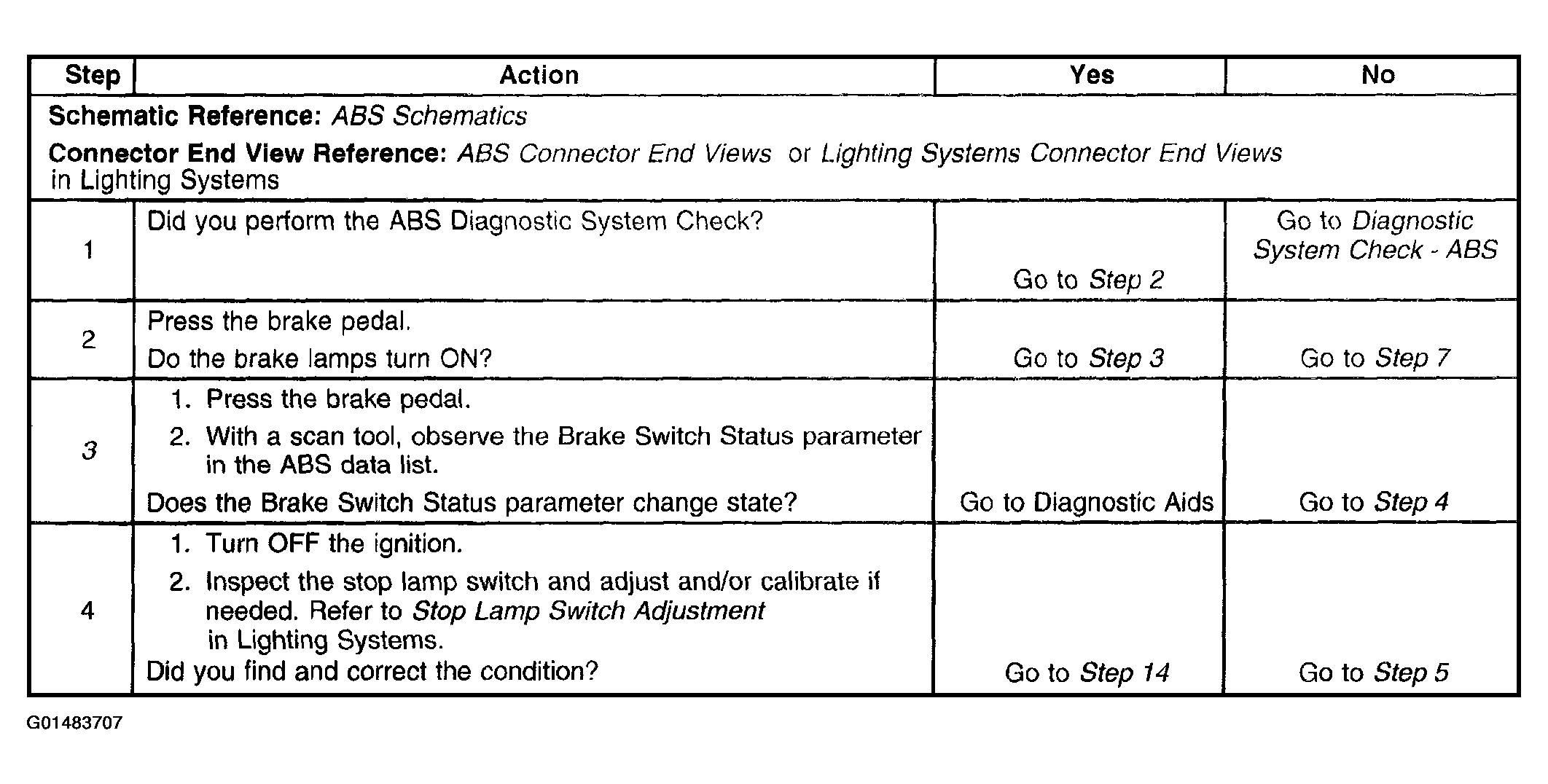

The numbers below refer to the step numbers on the diagnostic table.
3. Tests the circuit for a change in states.

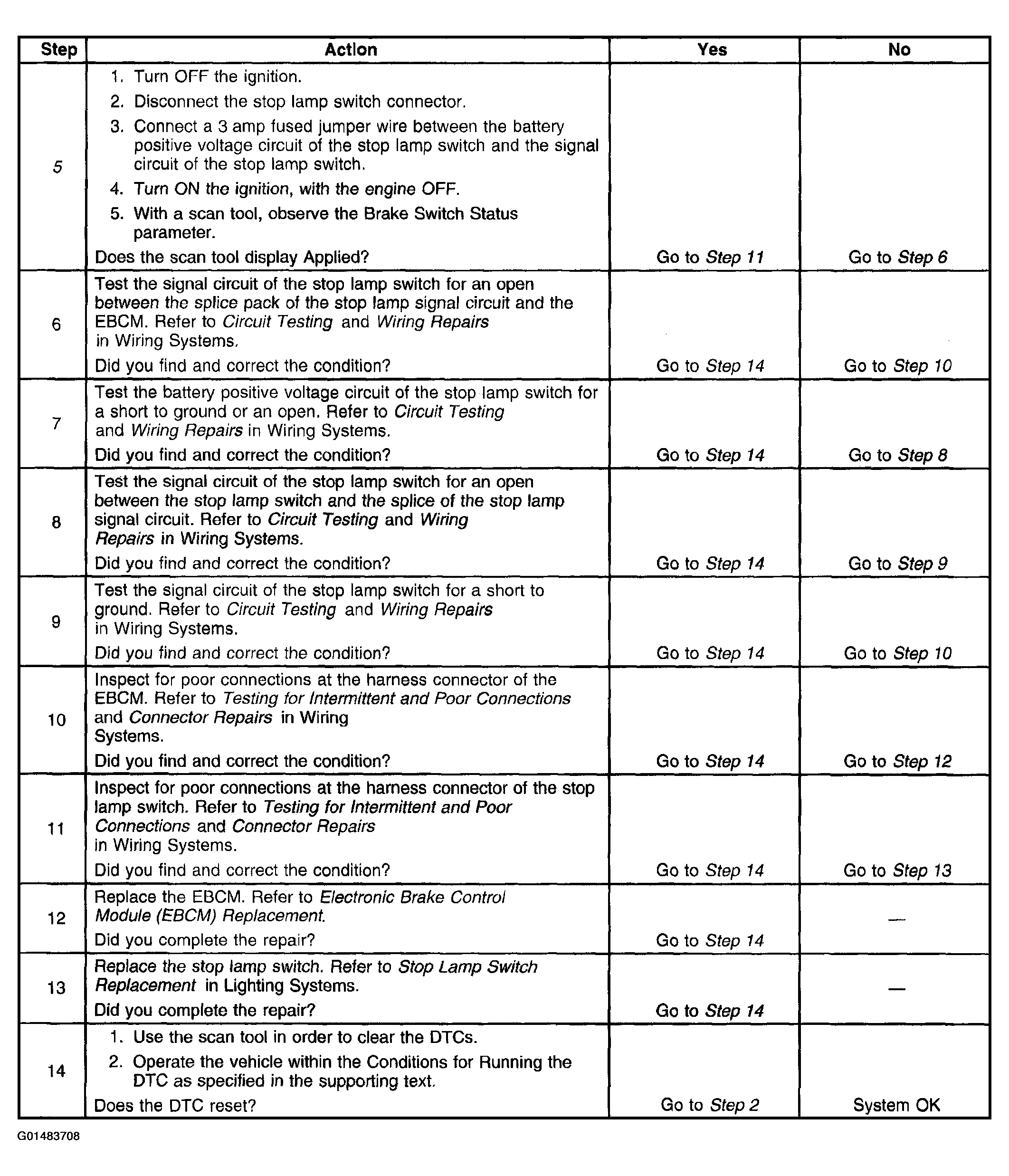

5. Tests for proper operation of the circuit by bypassing the stop lamp switch. If the fuse in the jumper opens when you perform this test, the signal circuit of the stop lamp switch is shorted to ground.
