Test Description
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

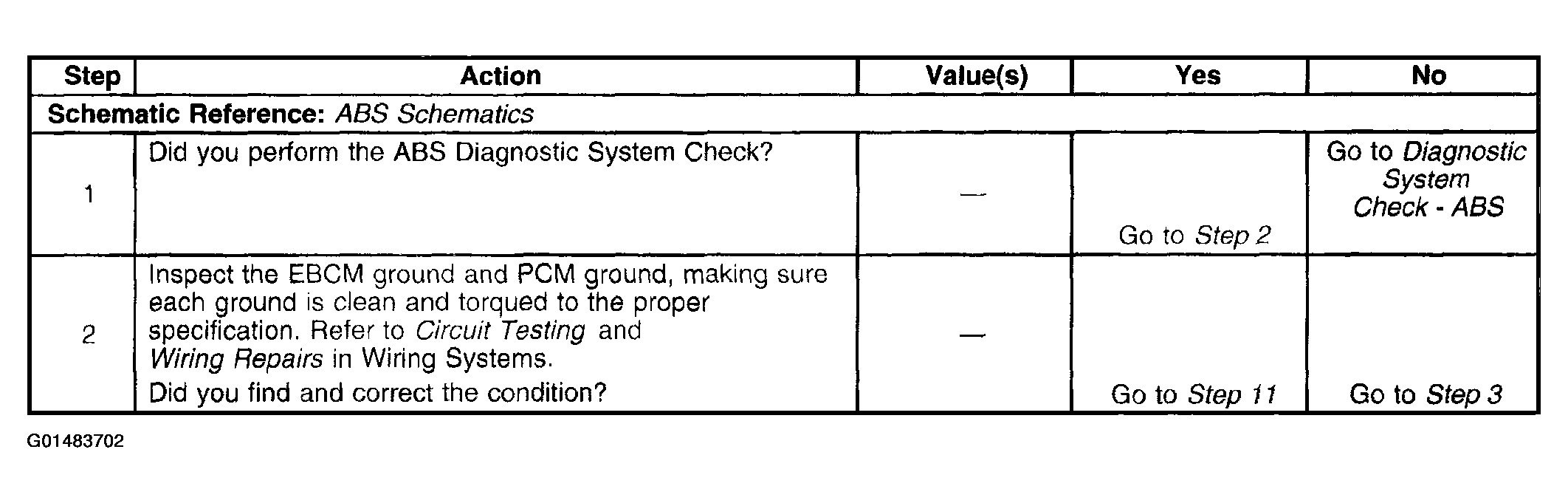

The numbers below refer to the step numbers on the diagnostic table.

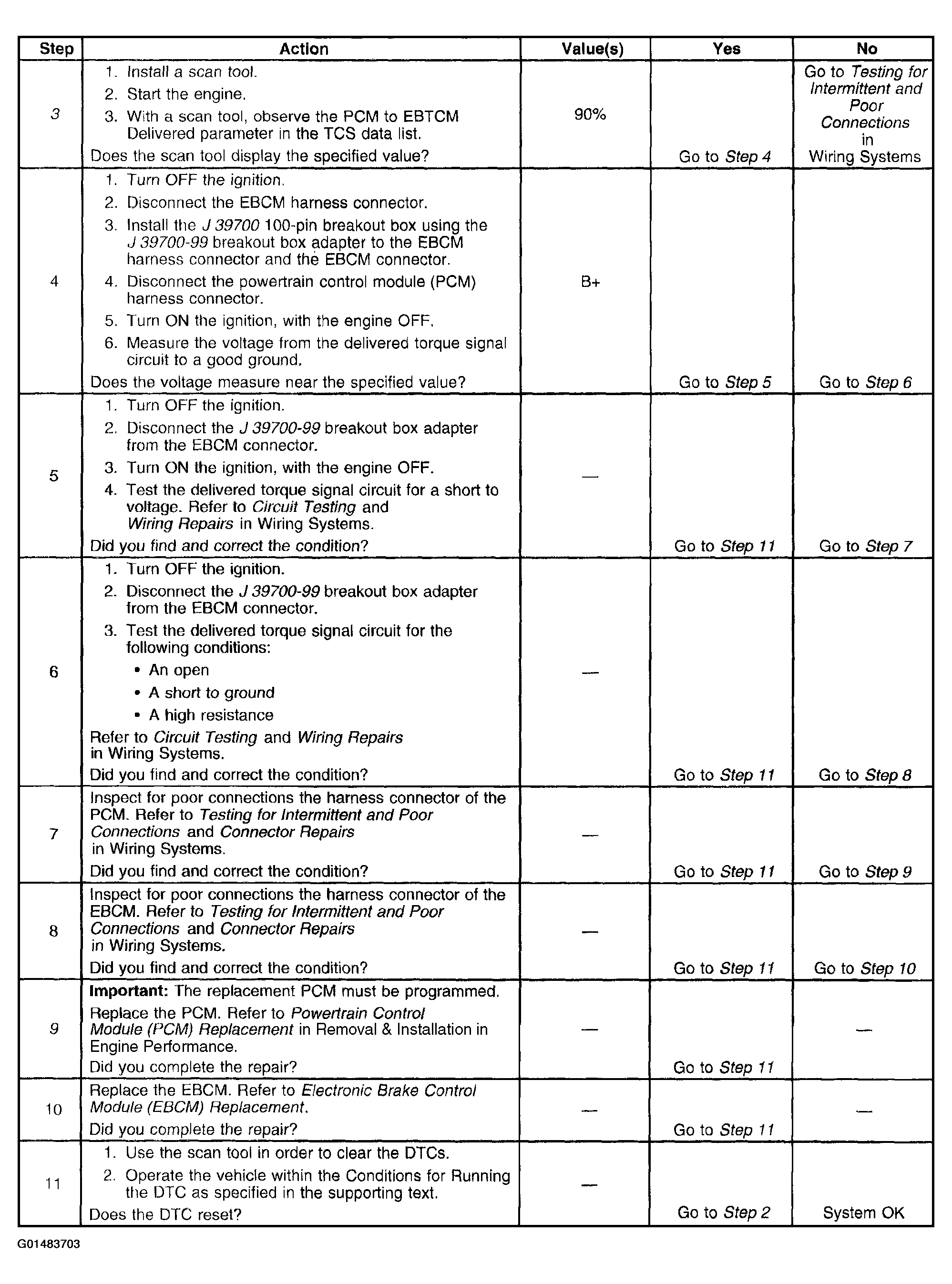

3. Use the scan tool in order to determine if the delivered torque signal has a valid duty cycle.
This vehicle is equipped with a PCM which uses an Electrically Erasable Programmable Read Only Memory (EEPROM). When replacing the PCM, the replacement PCM must be programmed.
