Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Release the vent hose clamp (1) from the extension housing assembly.
  3. Disconnect the vent hose (2) from the retaining bracket on the transfer case assembly.
  4. Remove the vent hose from the extension housing assembly vent tube by carefully twisting the hose.

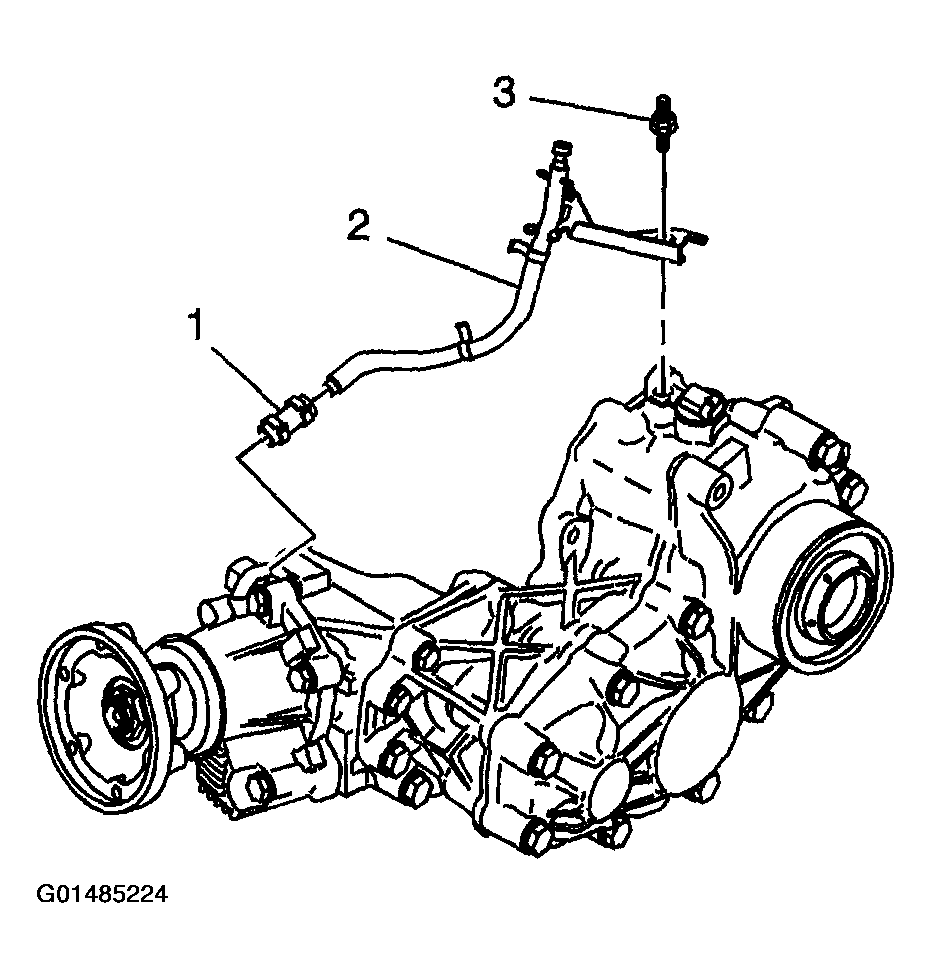

    Fig 1: Removing Vent Hose Assembly
    G01485224Courtesy of GENERAL MOTORS CORP.
