Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the fill plug (2) and gasket.
  3. Place a container under the drain plug (1) in order to catch the oil.
  4. Remove the drain plug and gasket. Allow the oil to drain.

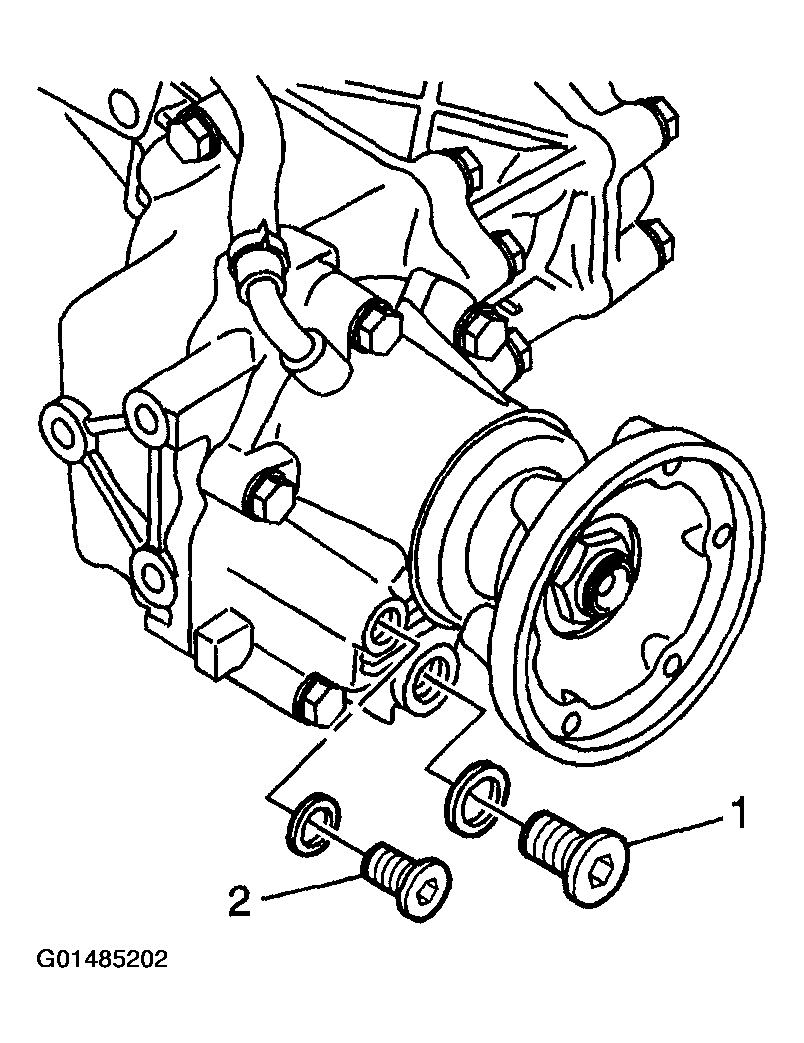

    Fig 1: Removing Transfer Case Drain Plug
    G01485202Courtesy of GENERAL MOTORS CORP.
