Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the transaxle brace bolts.
  3. Remove the transaxle brace.

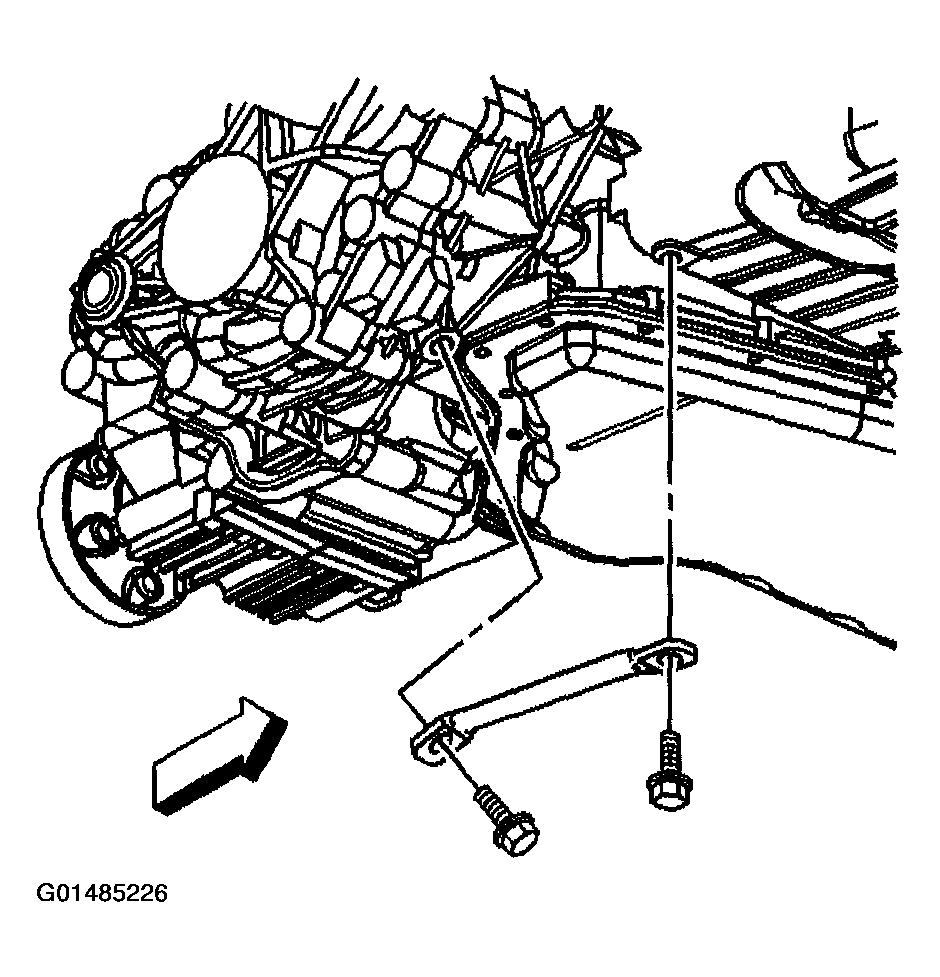

    Fig 1: Removing Transaxle Support Brace
    G01485226Courtesy of GENERAL MOTORS CORP.
