Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transaxle brace.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the transaxle brace bolts.

    Tighten

    Tighten the bolts to 47 N.m (35 lb ft).

  3. Lower the vehicle.

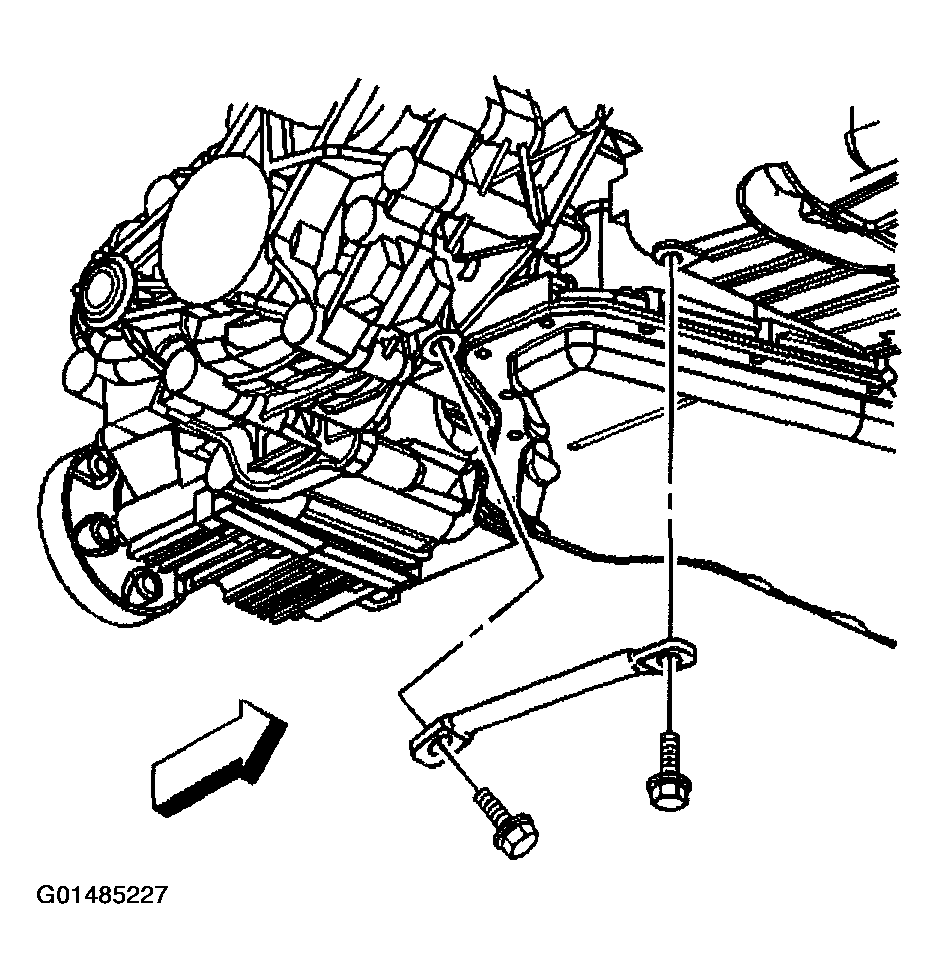

    Fig 1: Installing Transaxle Support Brace
    G01485227Courtesy of GENERAL MOTORS CORP.
