Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the lip of the axle shaft oil seal with automatic transaxle fluid.
  2. Using the J 44752  install the axle shaft oil seal to the transfer case.

    Important:  Carefully guide the axle shaft past the axle shaft oil seal. Do NOT allow the shaft splines to contact any portion of the sealing surface or damage to the oil seal can occur.

  3. Install the right front wheel drive shaft. Refer to AXLE SHAFT  in Wheel Drive Shafts.
  4. Install the right front tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  5. Lower the vehicle.

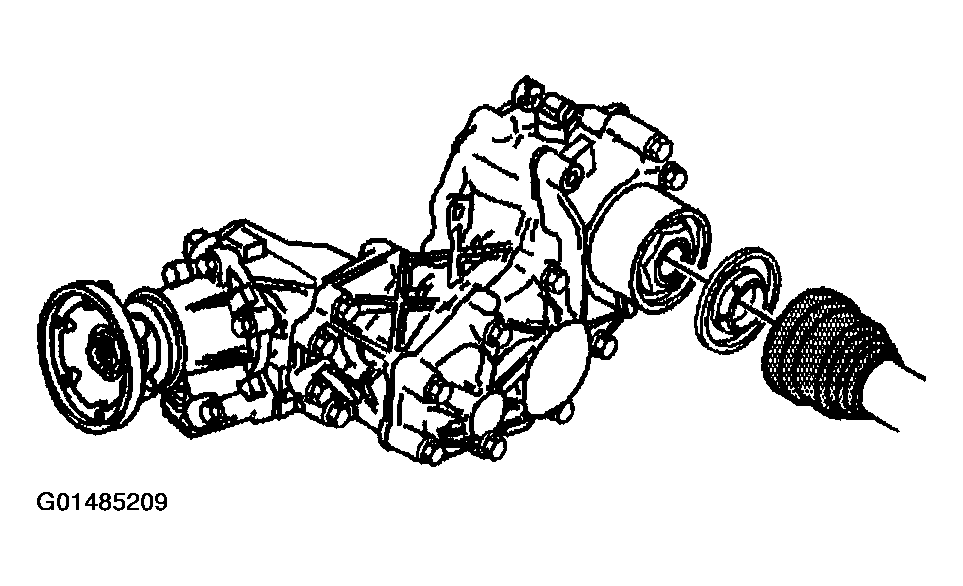

    Fig 1: Installing Axle Shaft Oil Seal To Transfer Case
    G01485209Courtesy of GENERAL MOTORS CORP.
  6. Inspect the transaxle fluid level. Refer to CHECKING FLUID LEVEL & CONDITION in Automatic Transaxle - 4T65-E.
  7. Inspect for fluid leaks. Refer to FLUID LEAK DIAGNOSIS  in Automatic Transaxle - 4T65-E and TRANSFER CASE LEAK DIAGNOSIS  .
