Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Reference mark the propeller shaft at the transfer case flange.

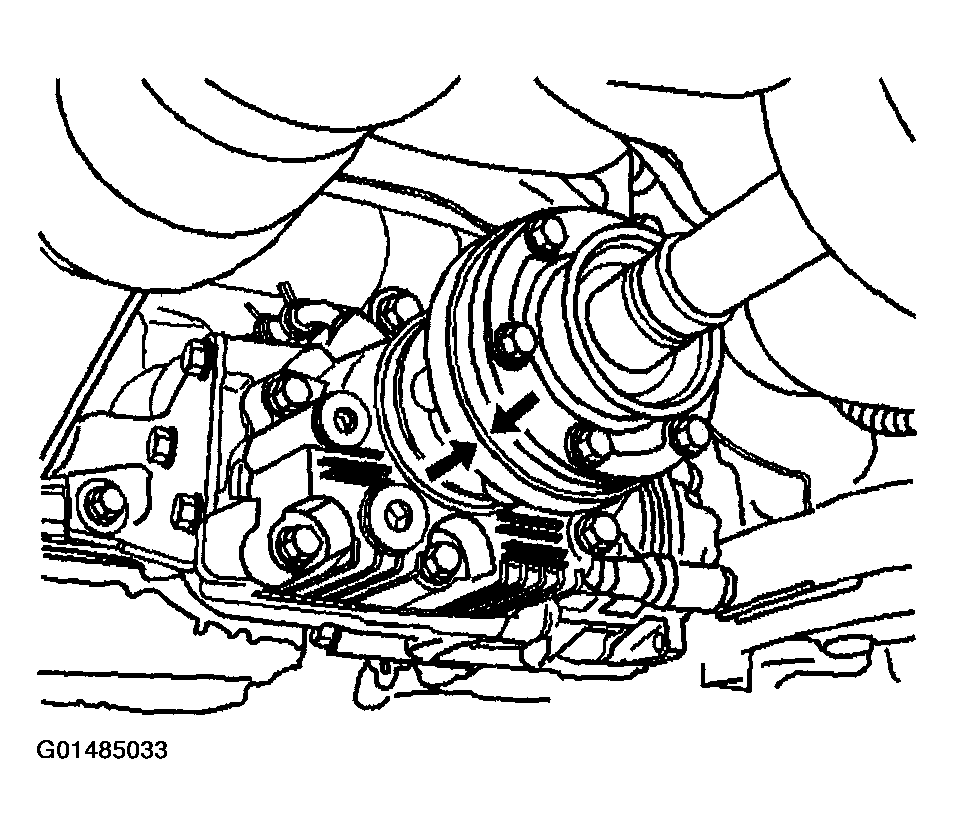

    Fig 1: Identifying Reference Mark Propeller Shaft At Transfer Case Flange
    G01485033Courtesy of GENERAL MOTORS CORP.
  3. Remove the propeller shaft-to-transfer case flange bolts.

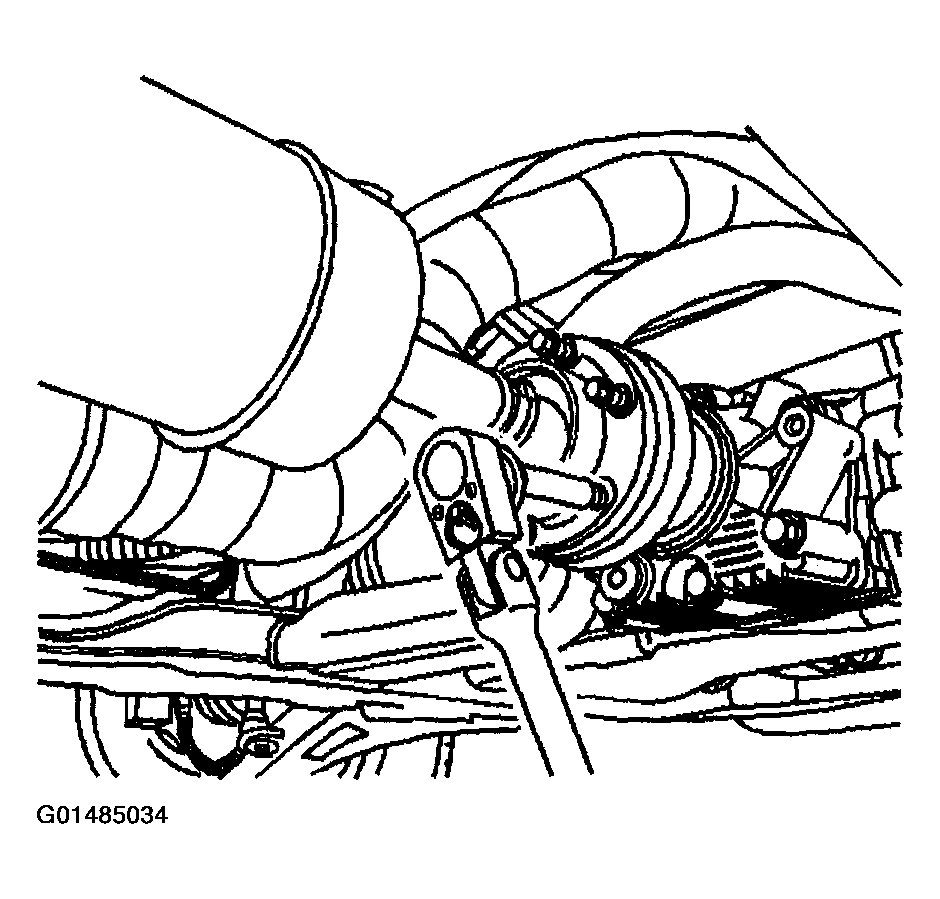

    Fig 2: Removing Propeller Shaft-To-Transfer Case Flange Bolts
    G01485034Courtesy of GENERAL MOTORS CORP.
  4. Reference mark the propeller shaft at the torque tube flange.

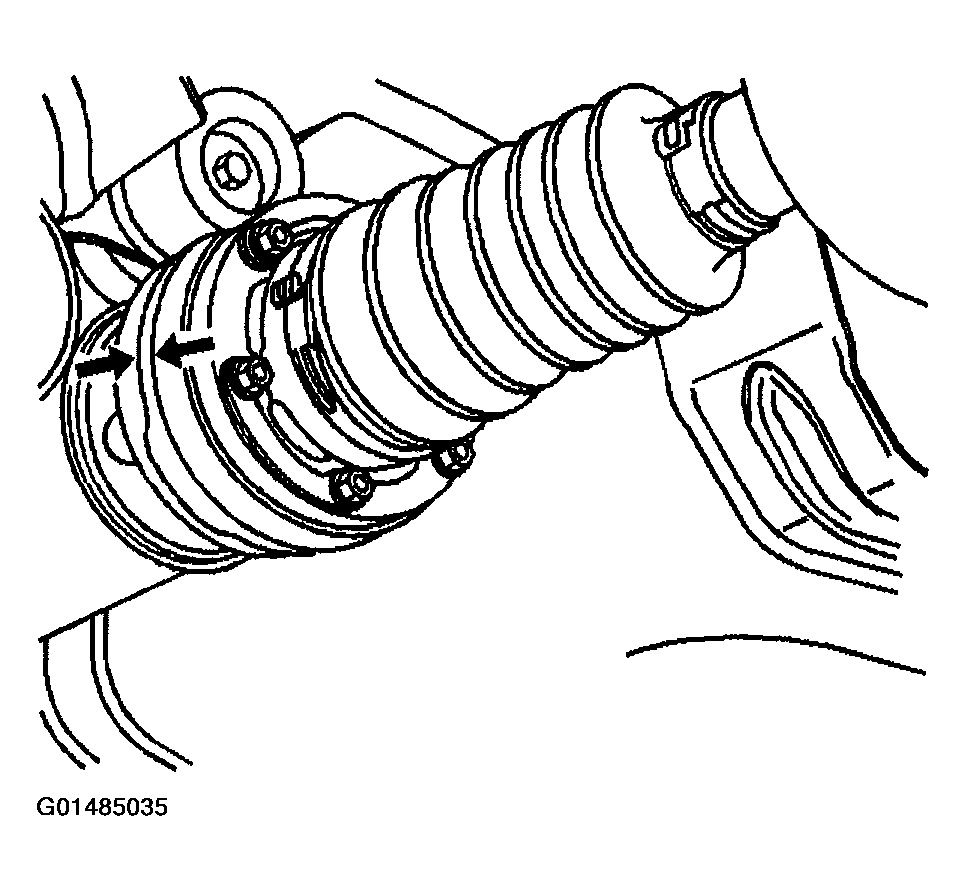

    Fig 3: Identifying Reference Mark Propeller Shaft At Torque Tube Flange
    G01485035Courtesy of GENERAL MOTORS CORP.
  5. Remove the propeller shaft-to-torque tube flange bolts.
  6. Push the propeller shaft toward the rear of the vehicle.
  7. Remove the propeller shaft.

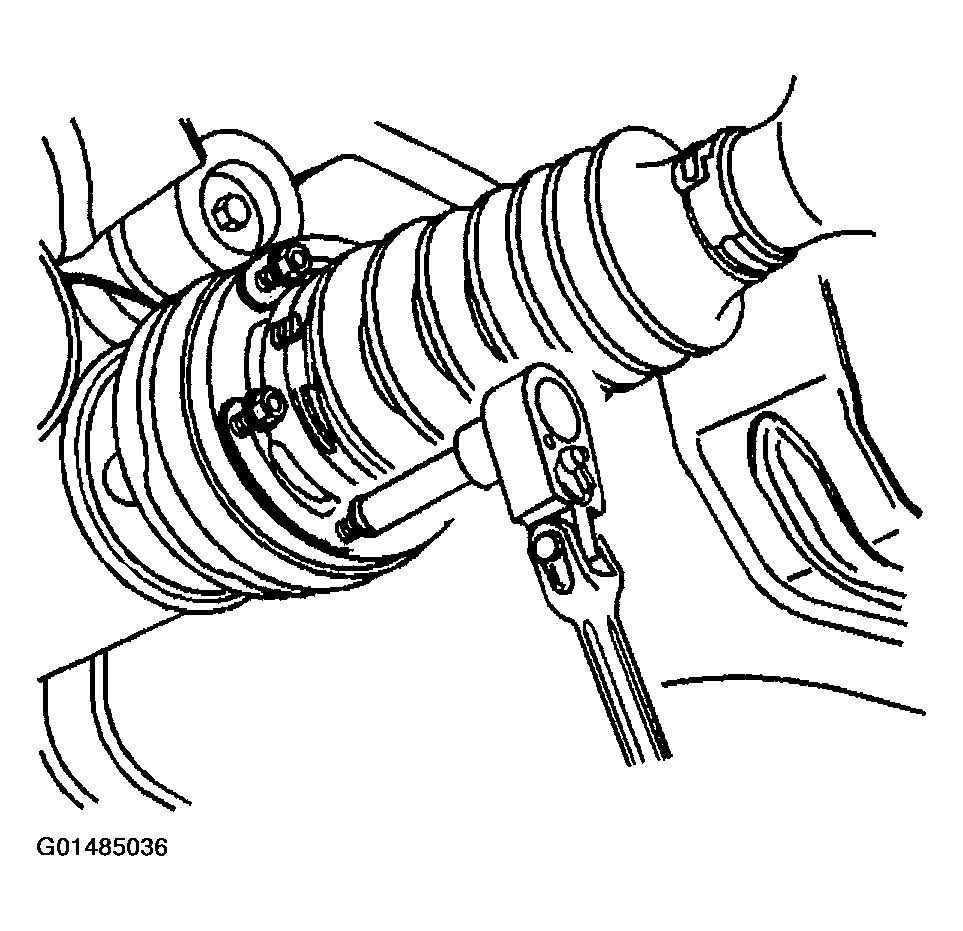

    Fig 4: Removing Propeller Shaft-To-Torque Tube Flange Bolts
    G01485036Courtesy of GENERAL MOTORS CORP.
