Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ELC/TRAILER fuse.
  2. Remove the inflator air valve opening cover by pulling the lever inboard.
  3. Remove the inflator control panel.
  4. Disconnect the inflator solenoid electrical connector.
  5. Remove the air lines from the inflator solenoid.

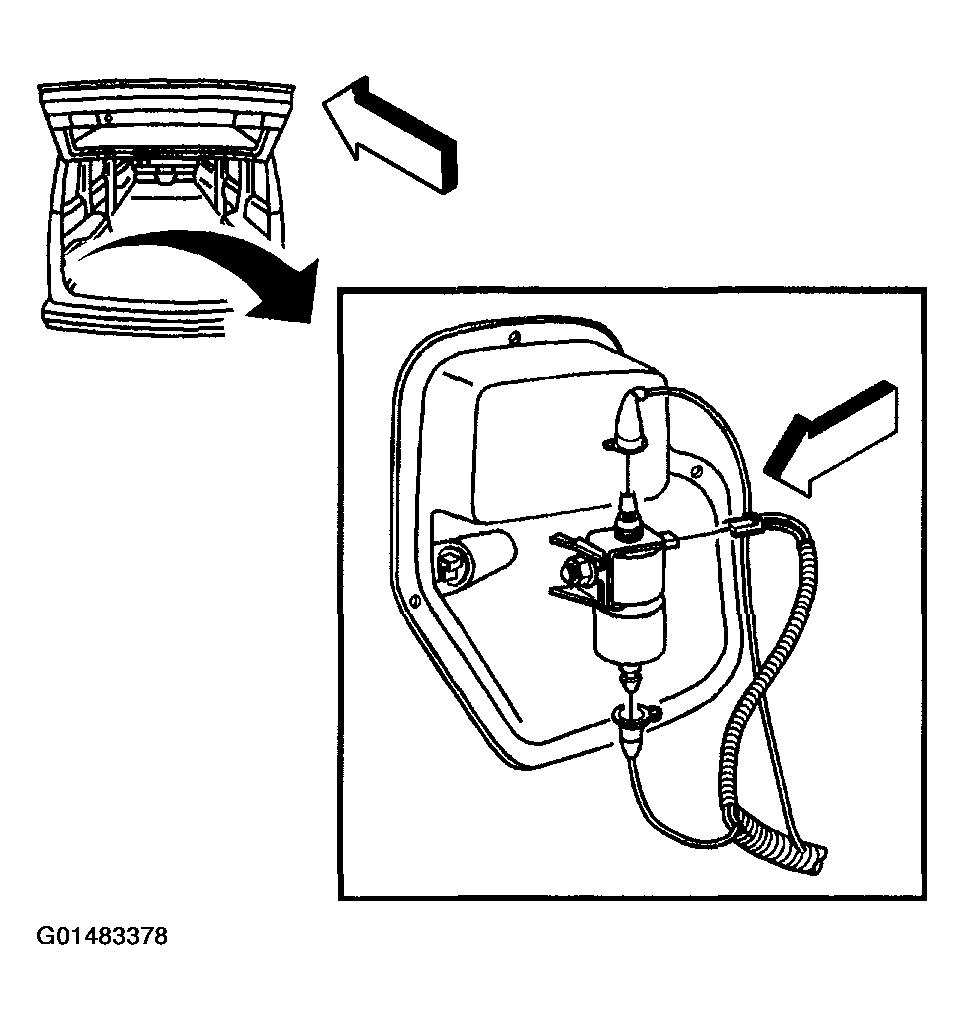

    Fig 1: Removing Air Lines From Inflator Solenoid
    G01483378Courtesy of GENERAL MOTORS CORP.
  6. Remove the inflator solenoid fill valve cap.
  7. Remove the inflator solenoid fill valve nut.
  8. Remove the inflator solenoid nut.
  9. Remove the inflator solenoid.
  10. Remove the inflator solenoid fill valve washer.

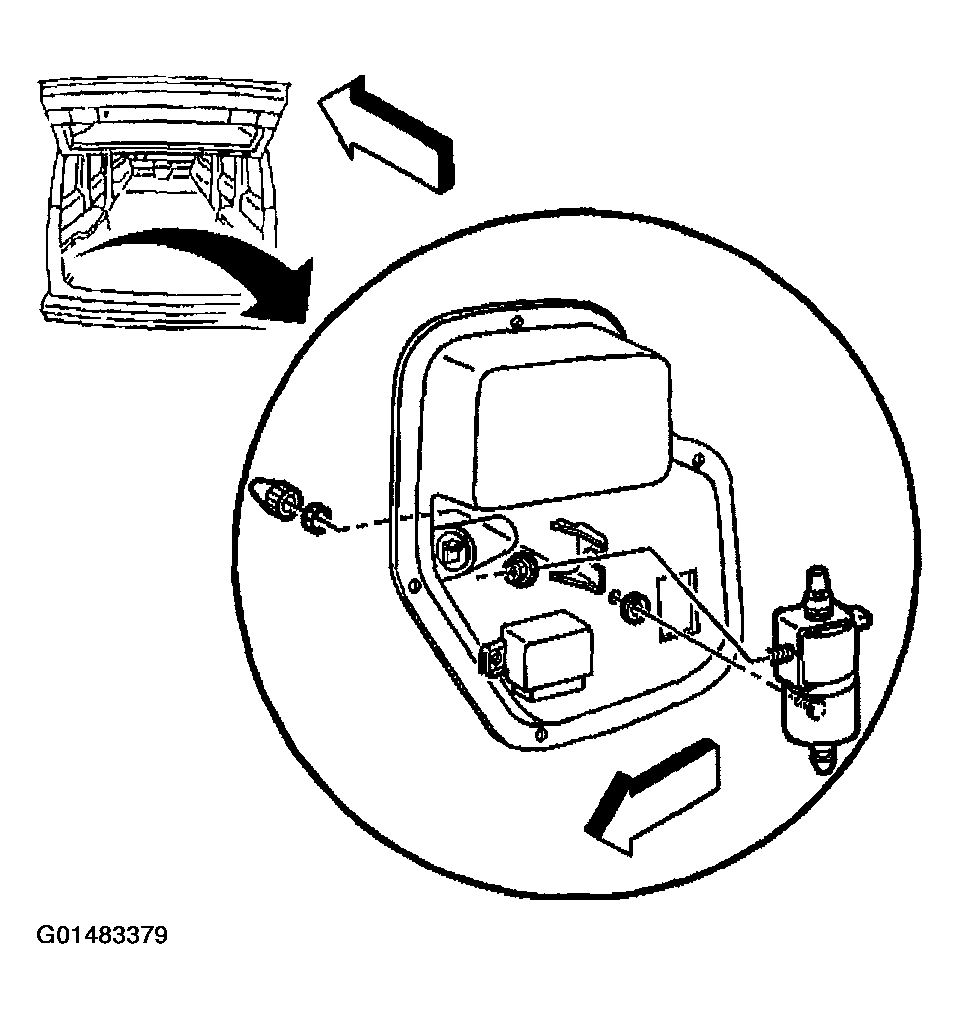

    Fig 2: Removing Inflator Solenoid Fill Valve Washer
    G01483379Courtesy of GENERAL MOTORS CORP.
