Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inflator solenoid washer over the fill valve.
  2. Install the inflator solenoid.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the inflator solenoid nut.

    Tighten

    Tighten the inflator solenoid nut to 3 N.m (27 lb in).

  4. Install the inflator solenoid fill valve nut.

    Tighten

    Tighten the inflator solenoid fill valve nut to 3 N.m (27 lb in).

  5. Install the inflator solenoid fill valve cap.

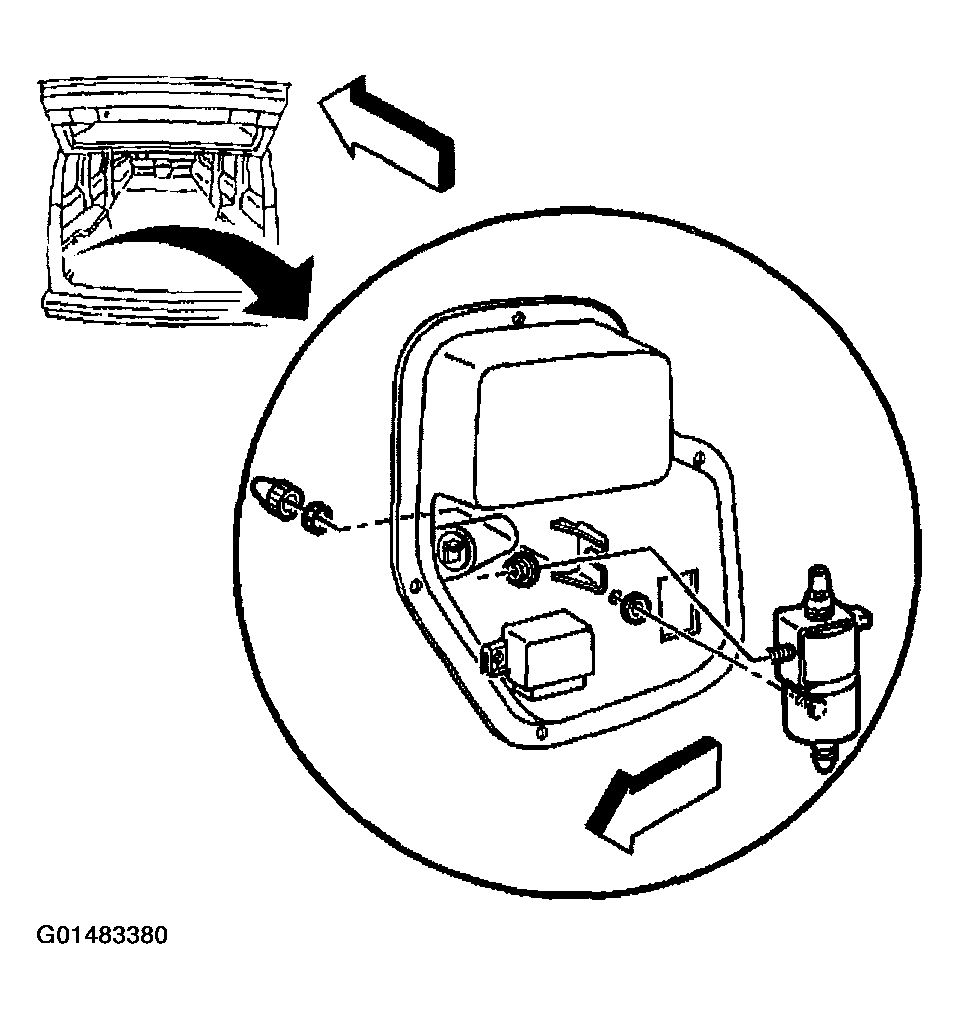

    Fig 1: Installing Inflator Solenoid Washer Over Fill Valve
    G01483380Courtesy of GENERAL MOTORS CORP.
  6. Install the air lines to the inflator solenoid.
  7. Connect the inflator solenoid electrical connector.
  8. Install the inflator control panel.
  9. Install the inflator air valve opening cover by pushing the lever outboard.
  10. Install the ELC/TRAILER fuse.

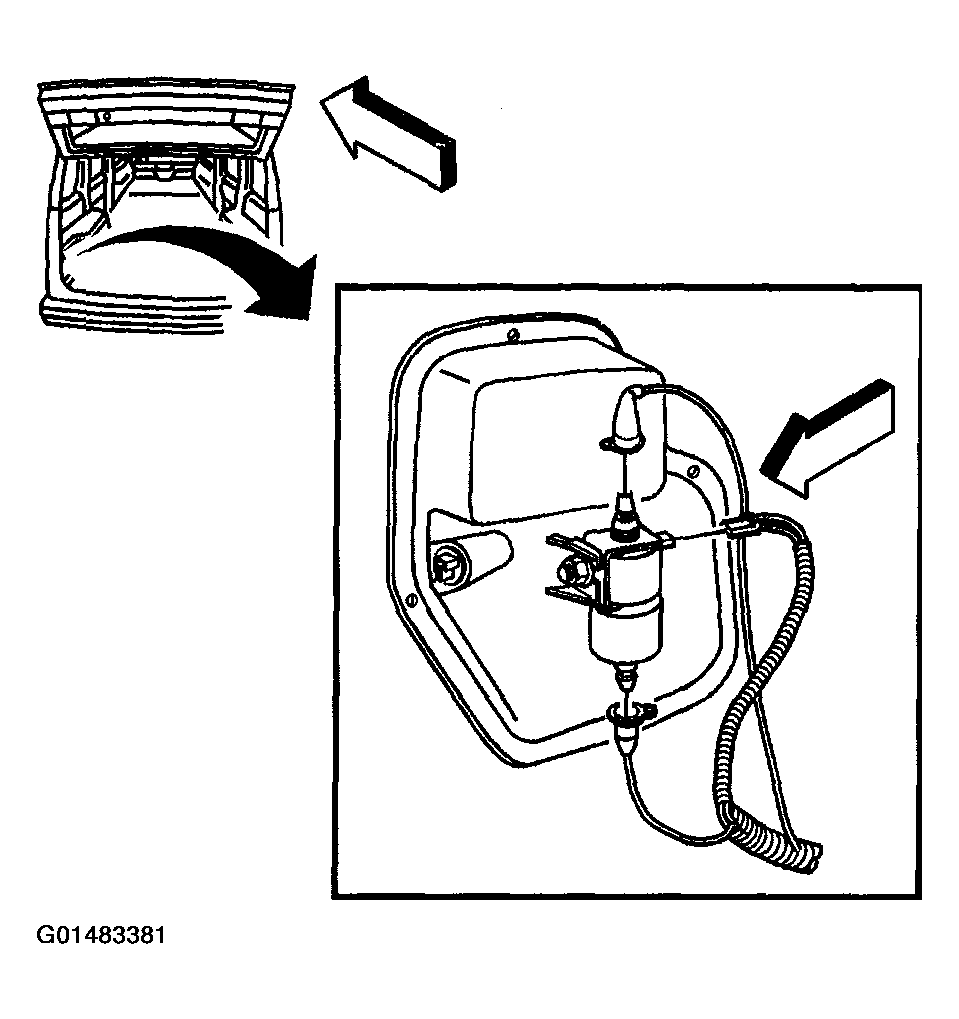

    Fig 2: Install The Air Lines To The Inflator Solenoid
    G01483381Courtesy of GENERAL MOTORS CORP.
