Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic level control air compressor from the vehicle. Refer to AIR COMPRESSOR REPLACEMENT   .
  2. Clean the area around the connection of the air dryer (2) to the automatic level control air compressor head (1).
  3. Rotate the spring clip retaining the dryer to the automatic level control air compressor 90 degrees.
  4. Remove the air dryer (2) from the air dryer bracket and the automatic level control air compressor.

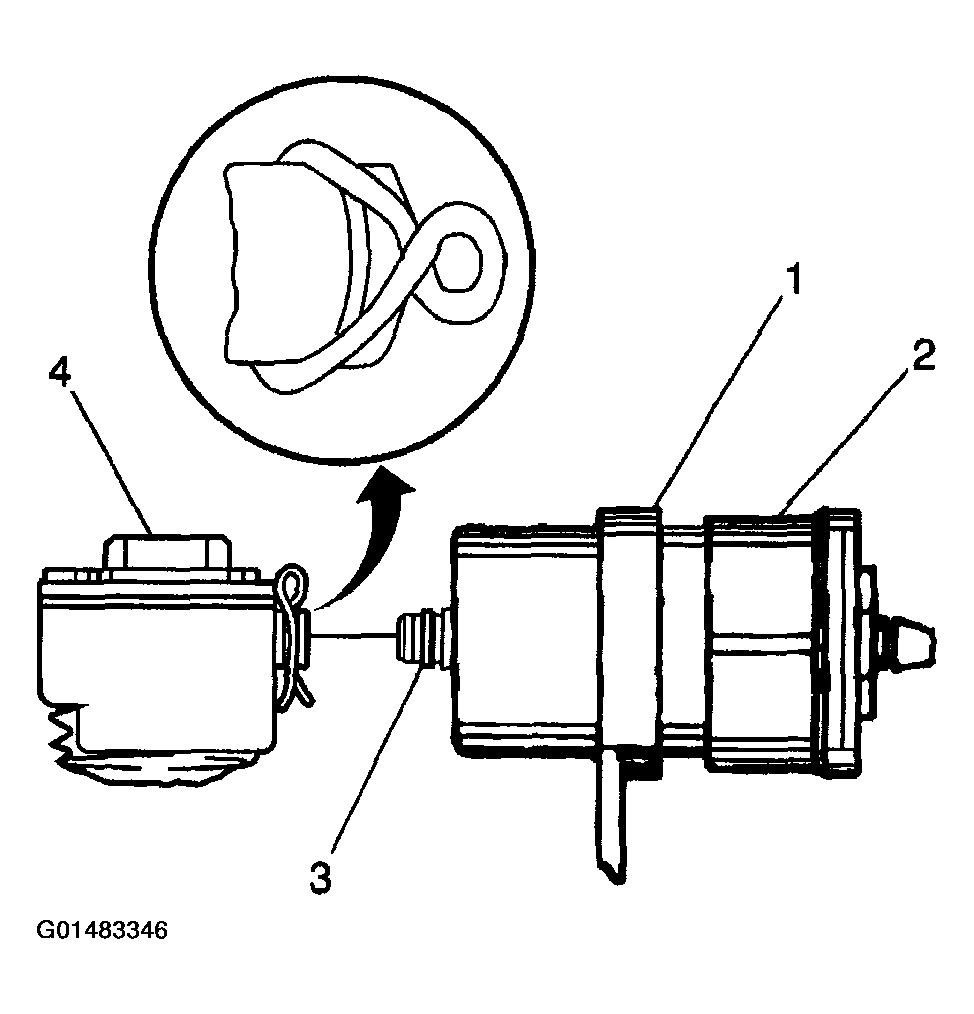

    Fig 1: Removing Air Dryer From Air Dryer Bracket And Automatic Level Control Air Compressor
    G01483346Courtesy of GENERAL MOTORS CORP.
