Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Replace any clips which you have removed from the vehicle with new clips.

  1. Install the clips to the vehicle.
  2. Install the air line (14) to the right shock absorber.
  3. Install the air line (1) to the left shock absorber.
  4. Lower the vehicle.
  5. Install the ELC/TRAILER fuse.

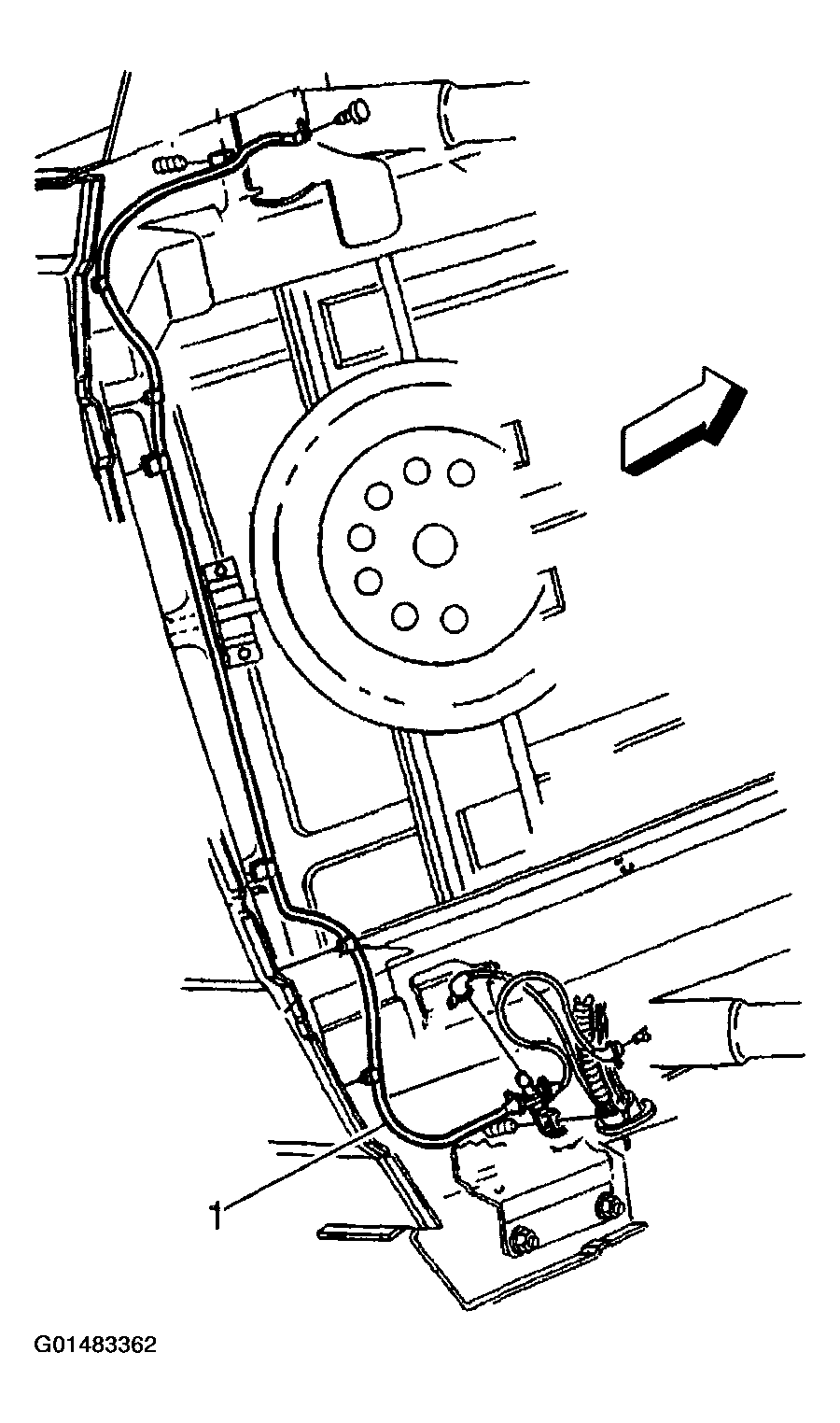

    Fig 1: Installing Air Line To Shock Absorber
    G01483362Courtesy of GENERAL MOTORS CORP.
