Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Squeeze the clips on the side of the air compressor filter (1) in order to remove the filter from the underbody rail.
  3. Remove the compressor bracket bolt.
  4. Remove the compressor bracket nuts. Allow the compressor to hang from the bracket hook.
  5. Remove the air line from the air dryer.
  6. Disconnect the air compressor electrical connector.
  7. Rotate the air compressor and the bracket 90 degrees in order to disengage the compressor bracket hook from the vehicle.
  8. Remove the air compressor with the air compressor bracket.
  9. Remove the air compressor dryer. Refer to AUTOMATIC LEVEL CONTROL AIR DRYER REPLACEMENT   .
  10. Remove the air compressor relay from the air compressor bracket.

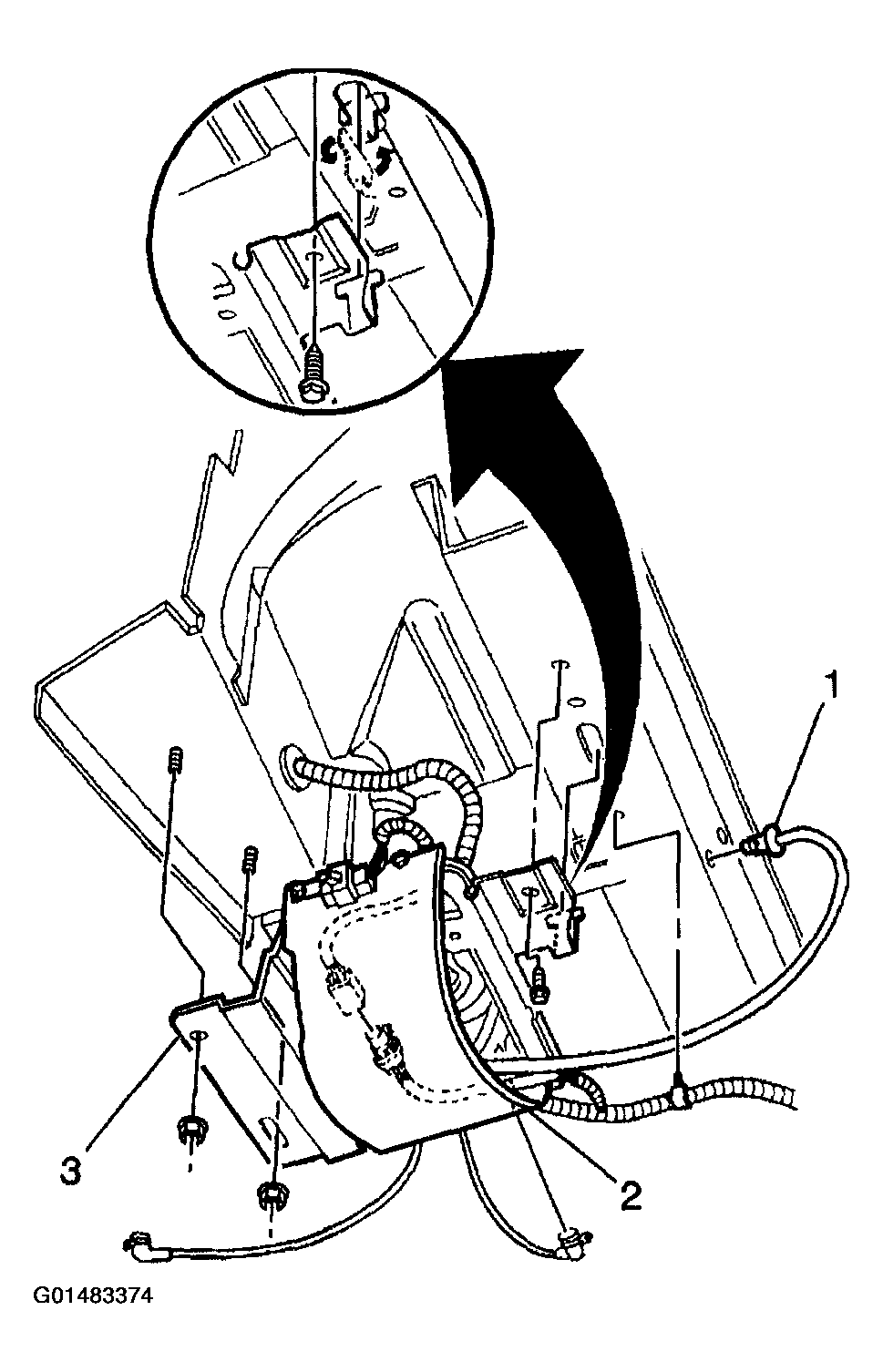

    Fig 1: Removing Air Compressor Relay From Air Compressor Bracket
    G01483374Courtesy of GENERAL MOTORS CORP.
  11. Remove the air compressor bolts.
  12. Remove the air compressor from the air compressor bracket.
  13. Remove the air compressor filter hose from the air compressor at 2 places.

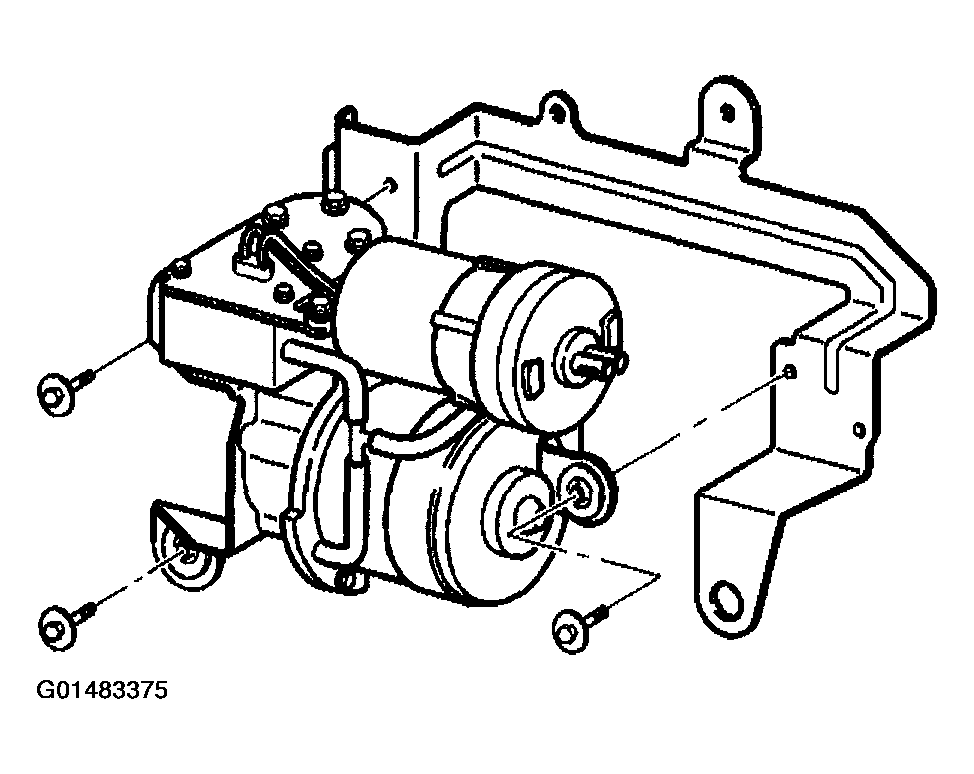

    Fig 2: Removing Air Compressor Filter Hose From Air Compressor At 2 Places
    G01483375Courtesy of GENERAL MOTORS CORP.
