Rear of Vehicle Low

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

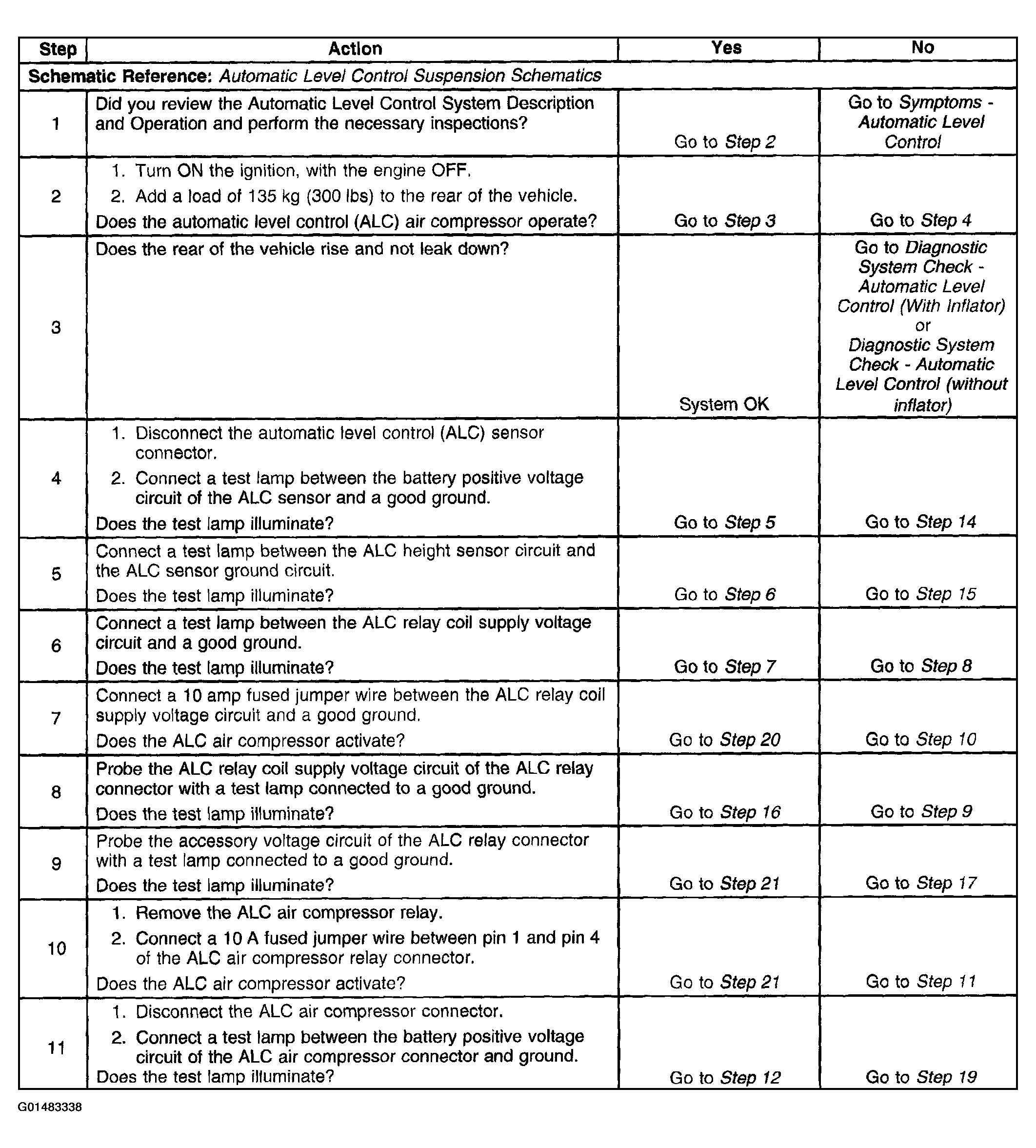

Fig 1: Rear of Vehicle Low - Diagnostic Chart (1 Of 2)
G01483338Courtesy of GENERAL MOTORS CORP.

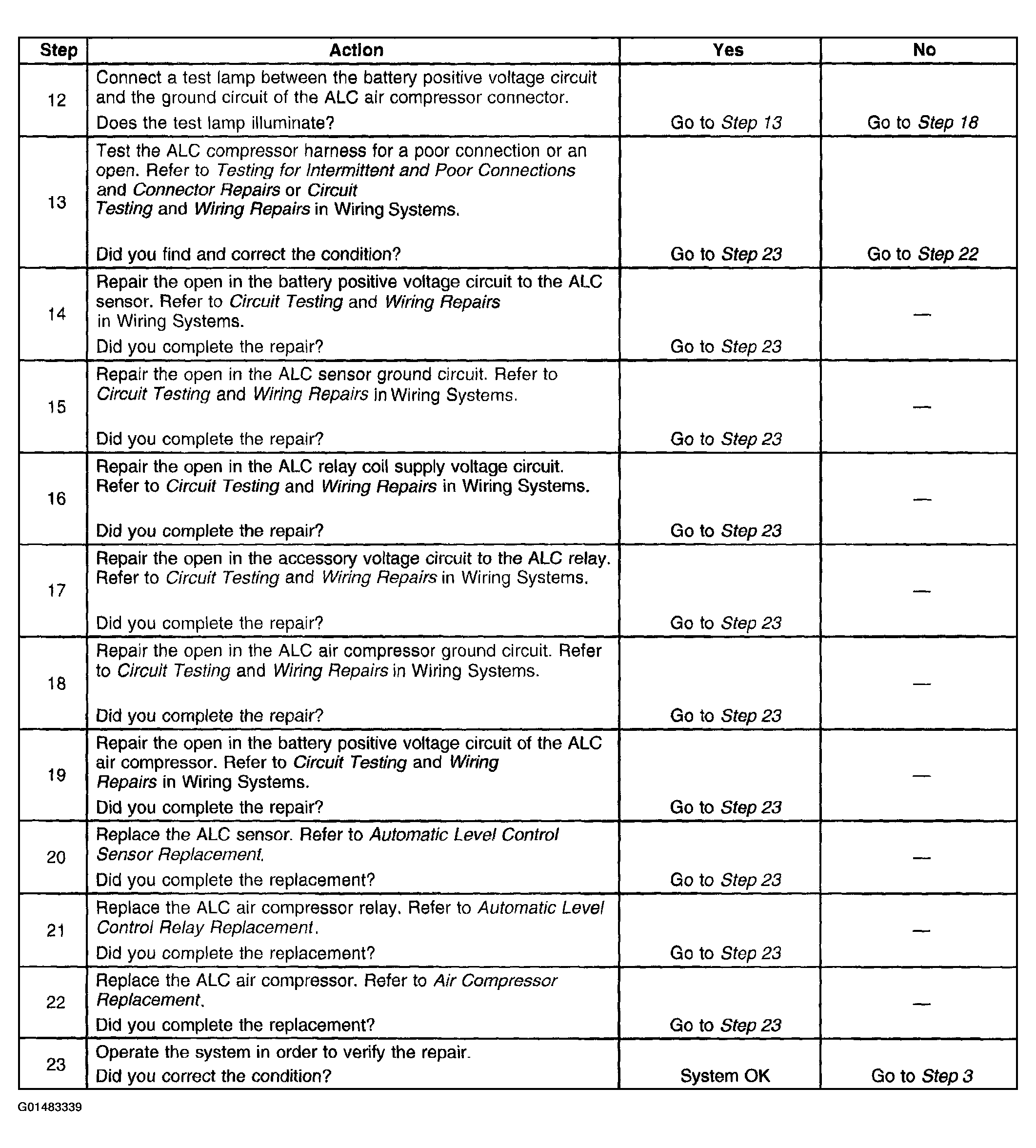

Fig 2: Rear of Vehicle Low - Diagnostic Chart (2 Of 2)
G01483339Courtesy of GENERAL MOTORS CORP.
