Test Description

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

1. The presence of DTCs

4. The symptom list in Symptoms will determine the correct diagnostic procedure to use.

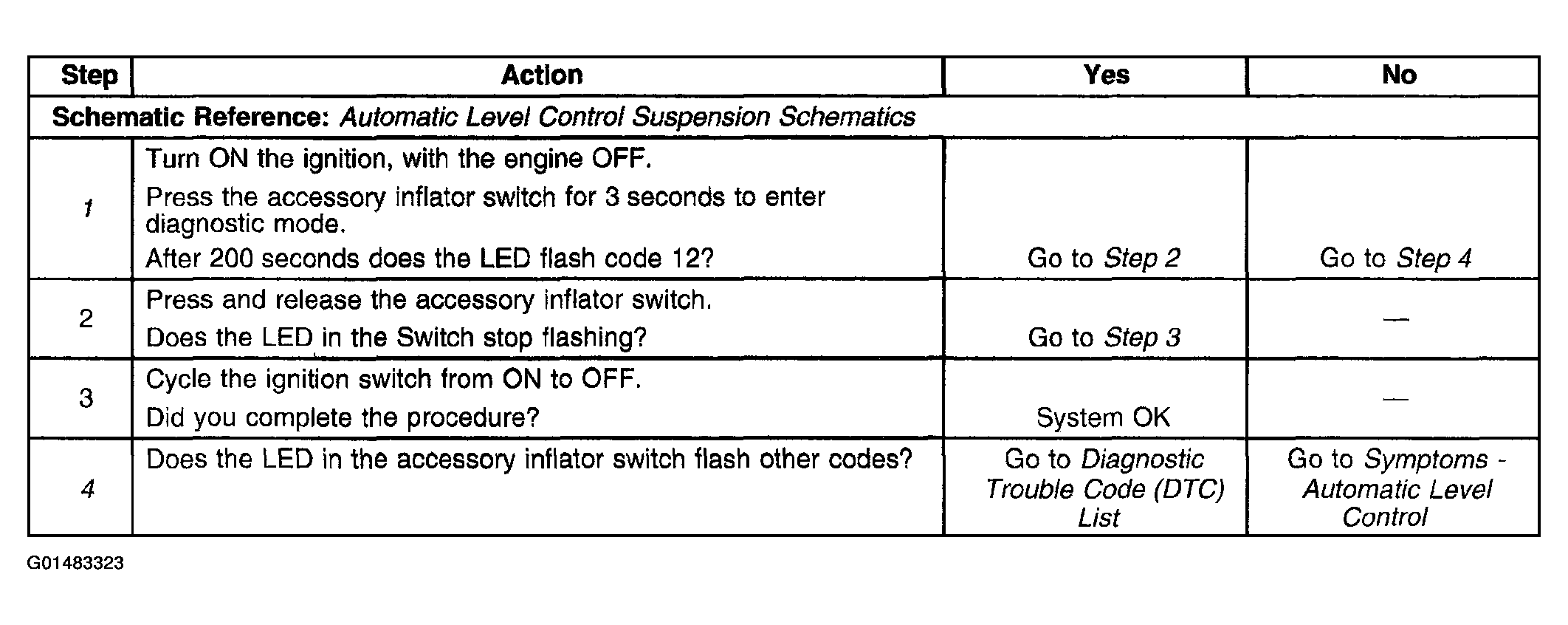

Fig 1: Automatic Level Control (With Inflator) - Diagnostic Chart
G01483323Courtesy of GENERAL MOTORS CORP.
