Test Description
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

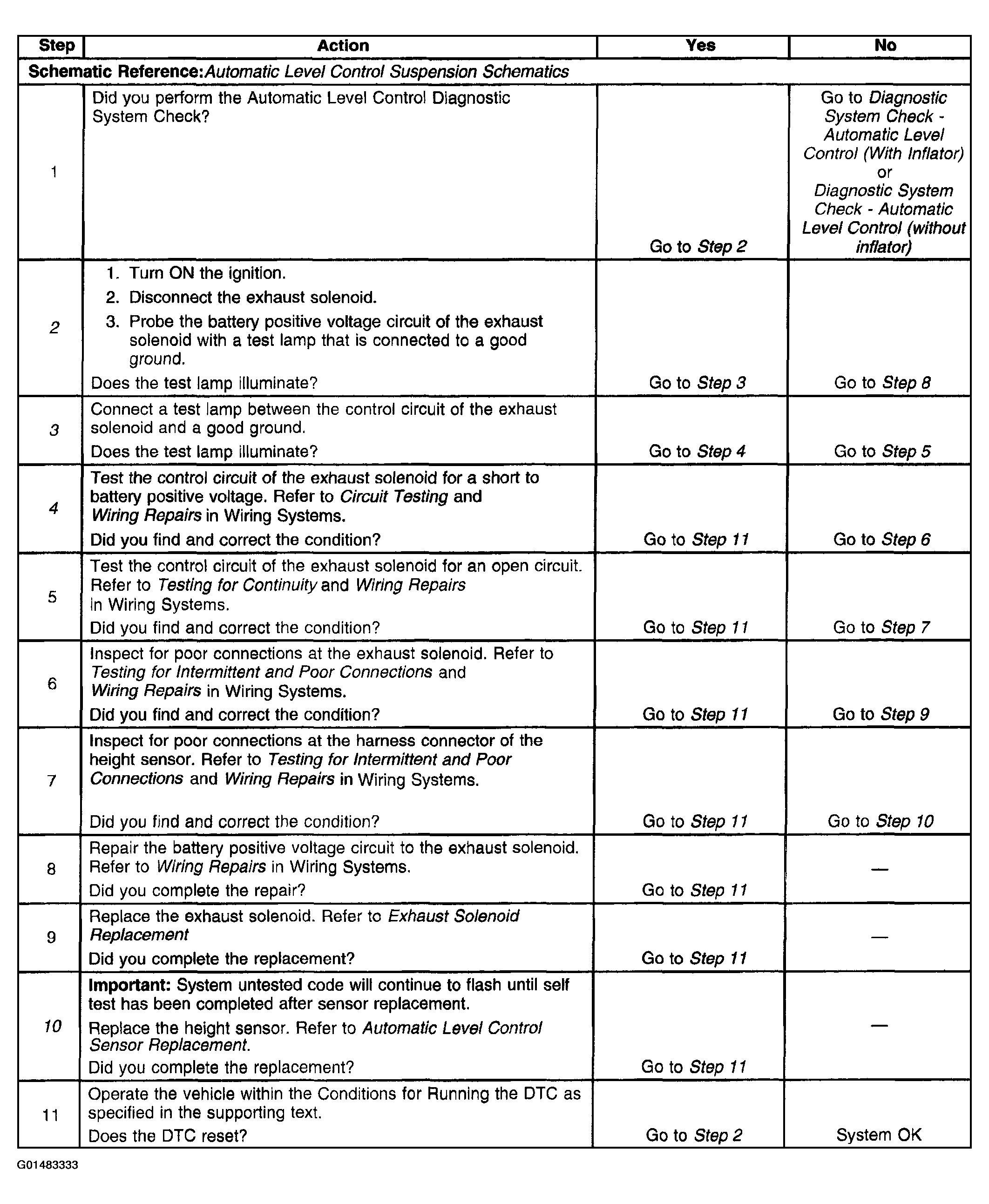

The number(s) below refer to the step number(s) on the diagnostic table.
2. Tests for voltage at the coil side of the exhaust solenoid. The ELC fuse supplies power to the coil side of the exhaust solenoid.
3. Verifies that the height sensor is providing ground to the exhaust solenoid.
4. Tests if ground is constantly being applied to the exhaust solenoid.
10. Verifies that the sensor is self tested after replacement
