Test Description

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

2. Tests for mechanical damage to height sensor link.

3. Height sensor replacement.

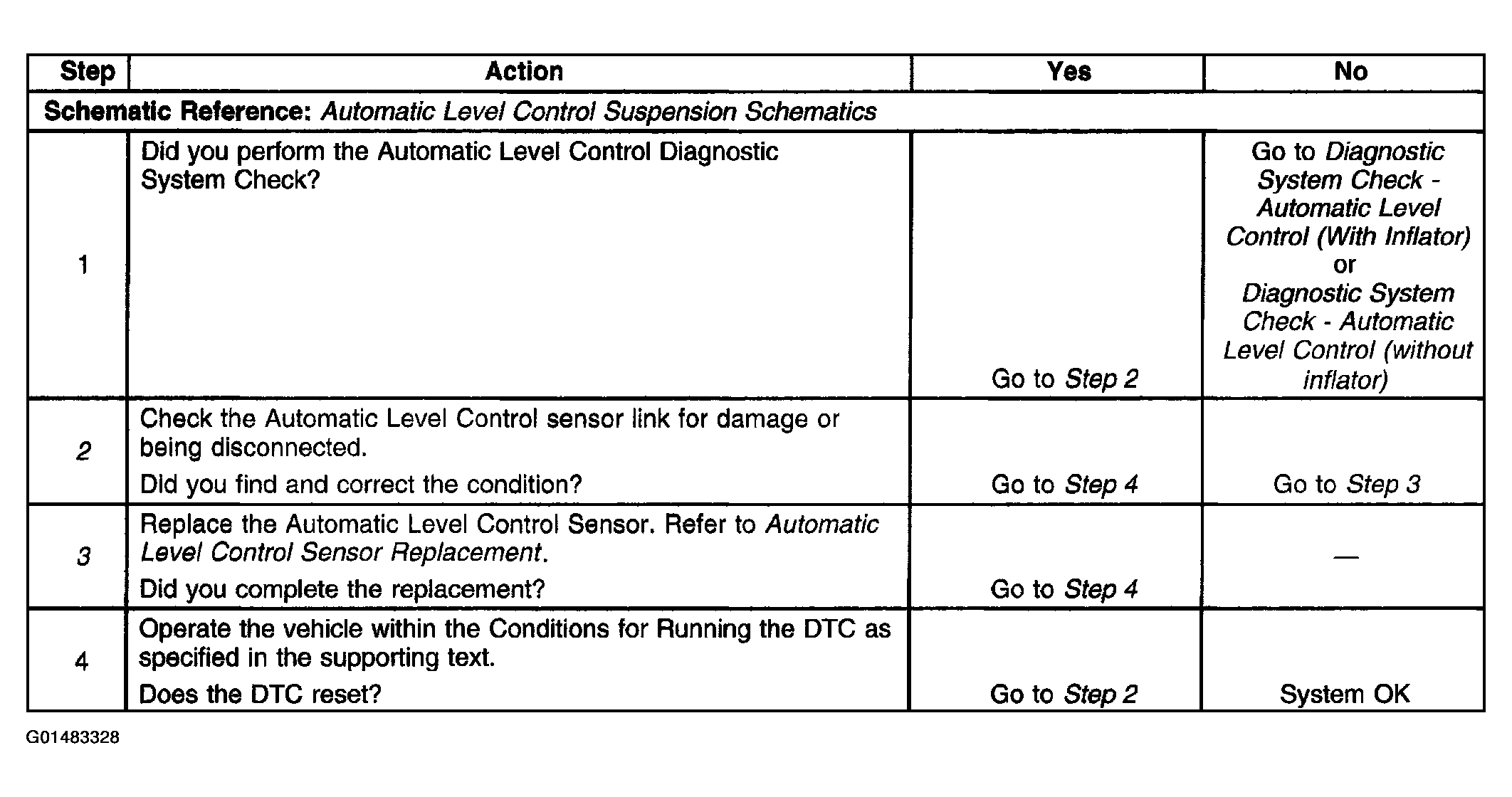

Fig 1: DTC 013 - Diagnostic Chart
G01483328Courtesy of GENERAL MOTORS CORP.
