Special Tools and Equipment

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

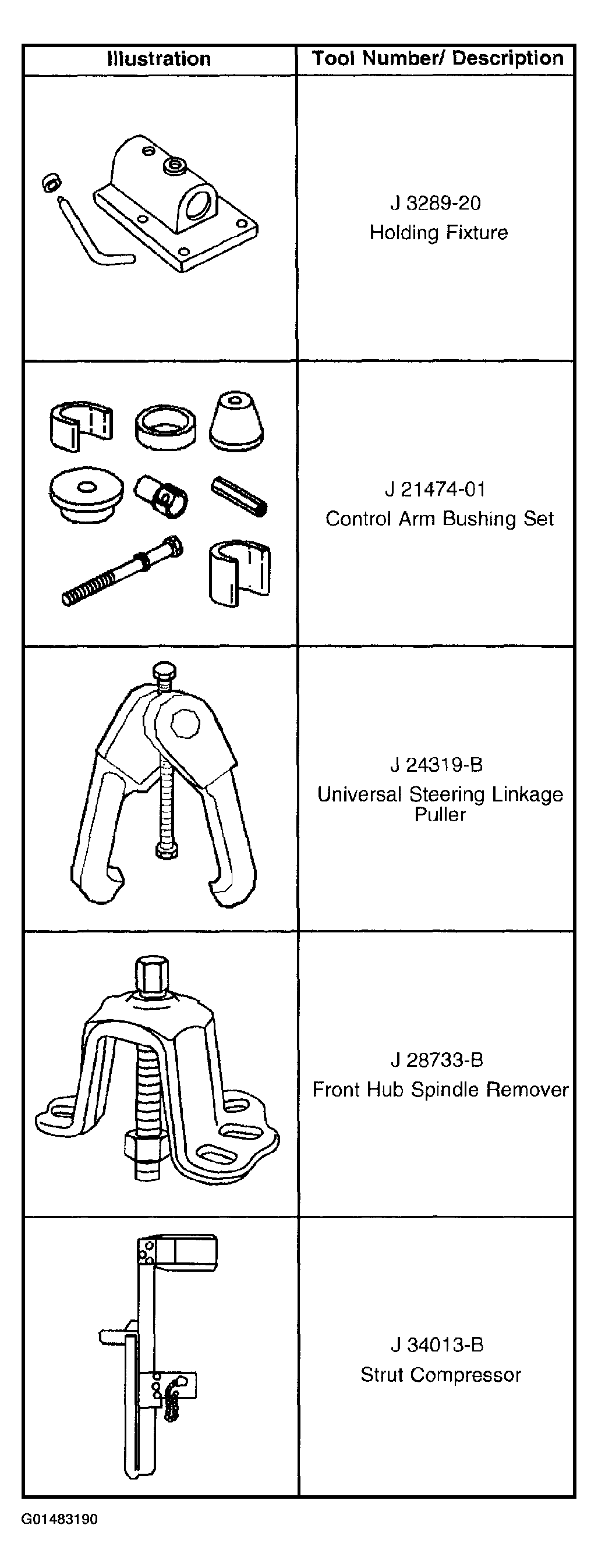

Fig 1: Special Tools And Equipments (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

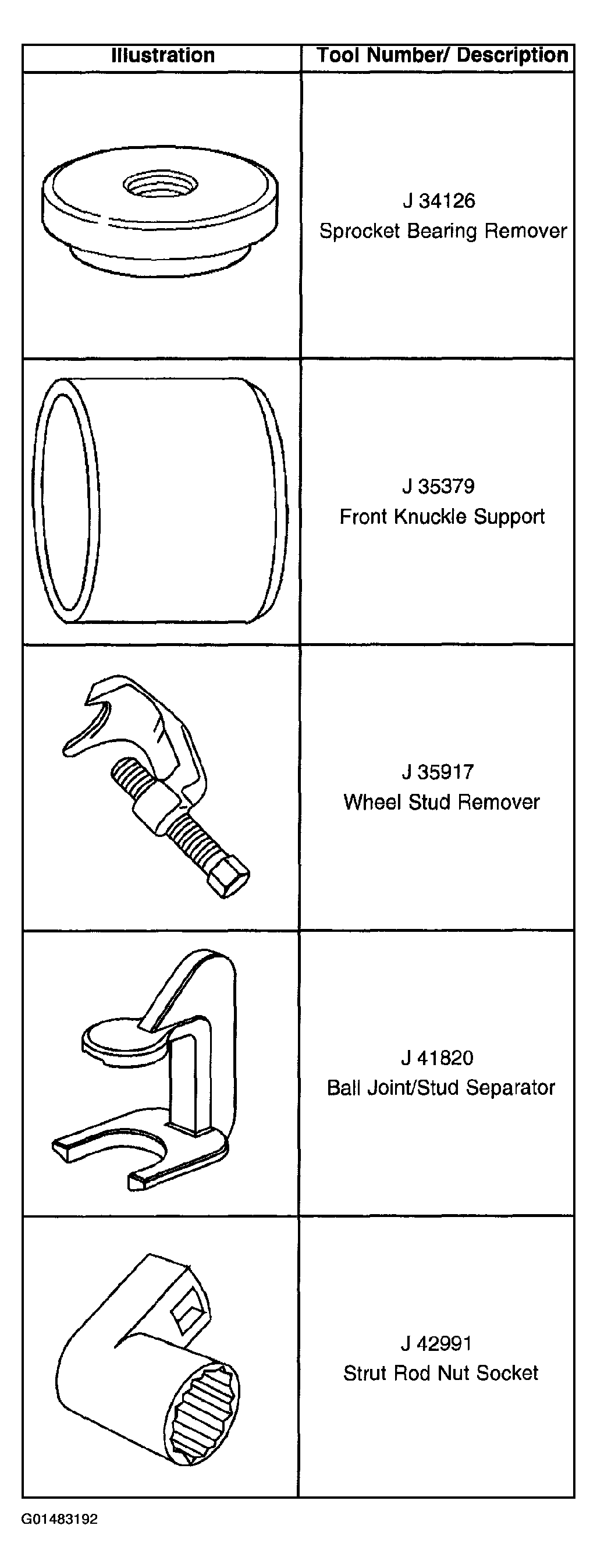

Fig 2: Special Tools And Equipments (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

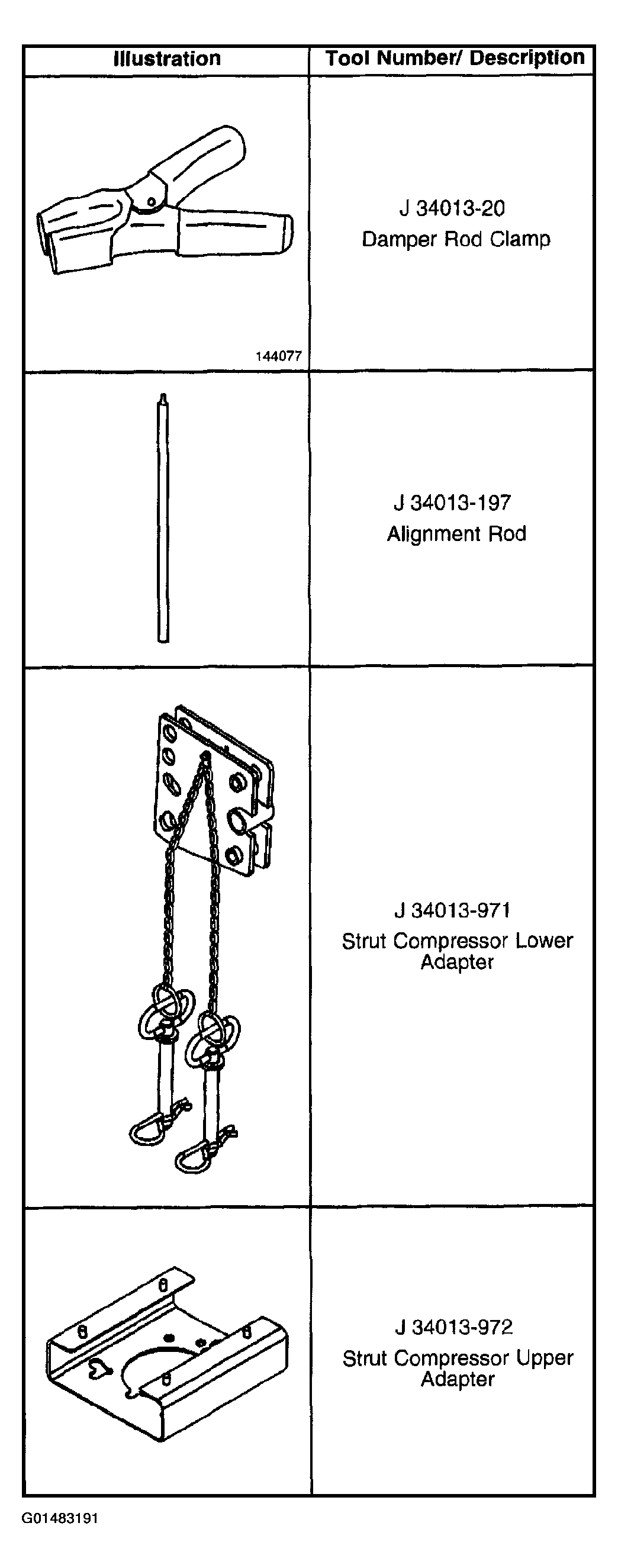

Fig 3: Special Tools And Equipments (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
