Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the knuckle to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts which connect the strut to the knuckle.

    Tighten

    Tighten the strut to knuckle bolts to 123 N.m (90 lb ft).

  3. Install the outer tie rod to the steering knuckle. Refer to TIE ROD END REPLACEMENT - OUTER  in Power Steering.
  4. Connect the front lower control arm ball stud to knuckle. Refer to LOWER CONTROL ARM REPLACEMENT   .
  5. Install the front wheel drive shaft bearing. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT   .
  6. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  7. Lower the vehicle.

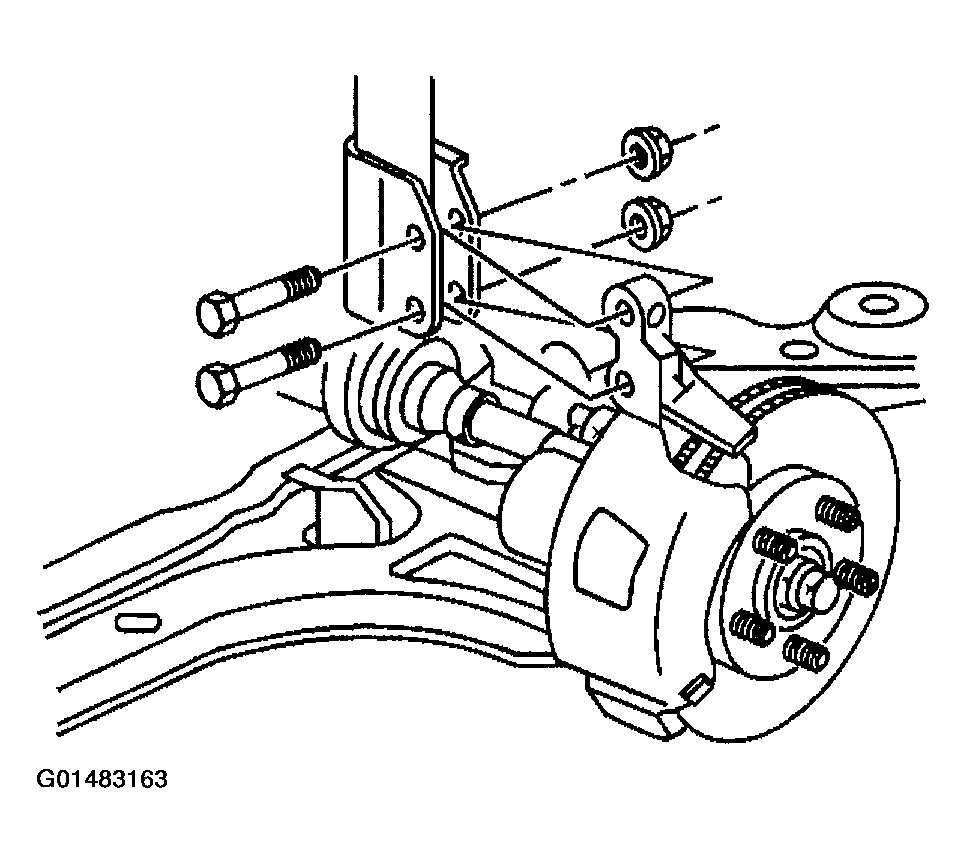

    Fig 1: Installing Knuckle To Vehicle
    G01483163Courtesy of GENERAL MOTORS CORP.
