Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  3. Remove the left and right stabilizer shaft insulators and brackets. Refer to STABILIZER SHAFT INSULATOR REPLACEMENT   .

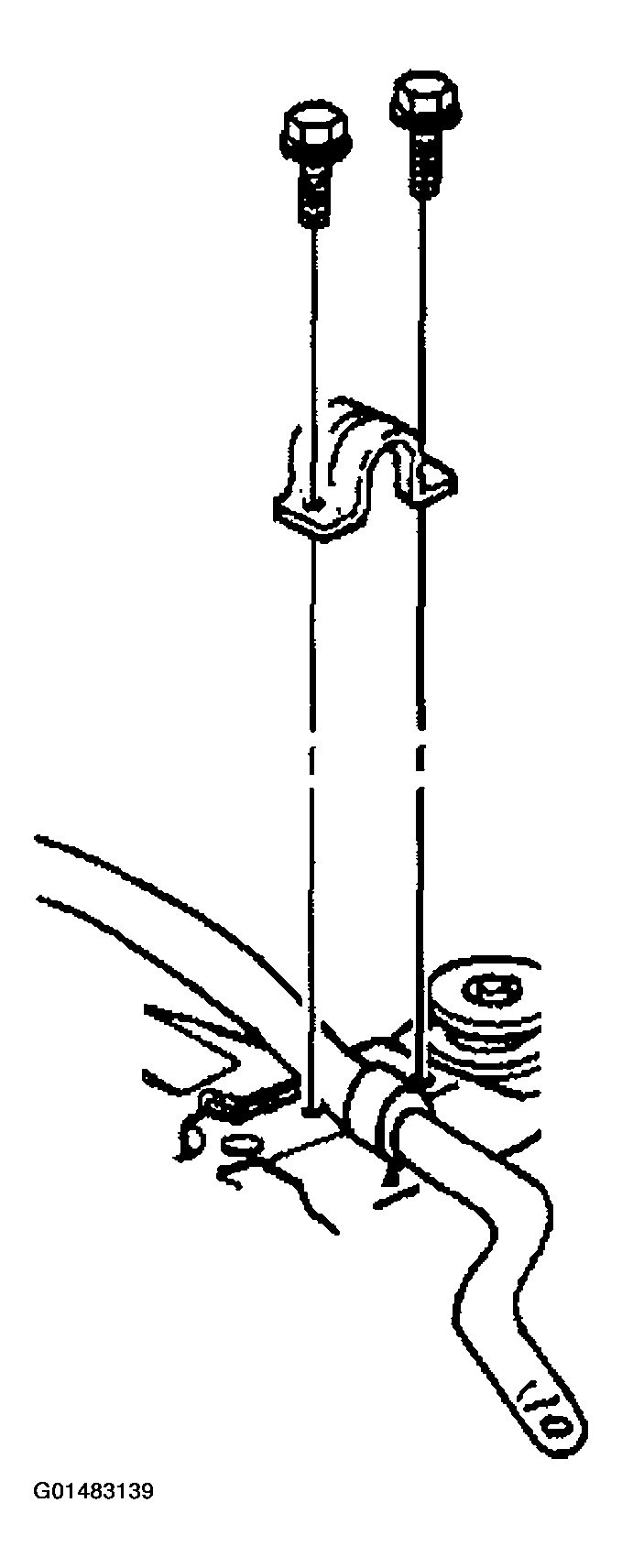

    Fig 1: Removing Stabilizer Shaft Brackets
    G01483139Courtesy of GENERAL MOTORS CORP.
  4. Remove the left and right stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT   .
  5. Remove the stabilizer shaft from the left side of the vehicle.
    Fig 2: Removing Stabilizer Shaft From Left Side Of Vehicle
    G01483140Courtesy of GENERAL MOTORS CORP.
