Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft from the left side of the vehicle.
  2. Install the left and right stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT   .
    Fig 1: Install Stabilizer Shaft From Left Side Of Vehicle
    G01483141Courtesy of GENERAL MOTORS CORP.
  3. Install the left and right stabilizer shaft insulators and brackets. Refer to STABILIZER SHAFT INSULATOR REPLACEMENT   .
  4. Install the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  5. Lower the vehicle.

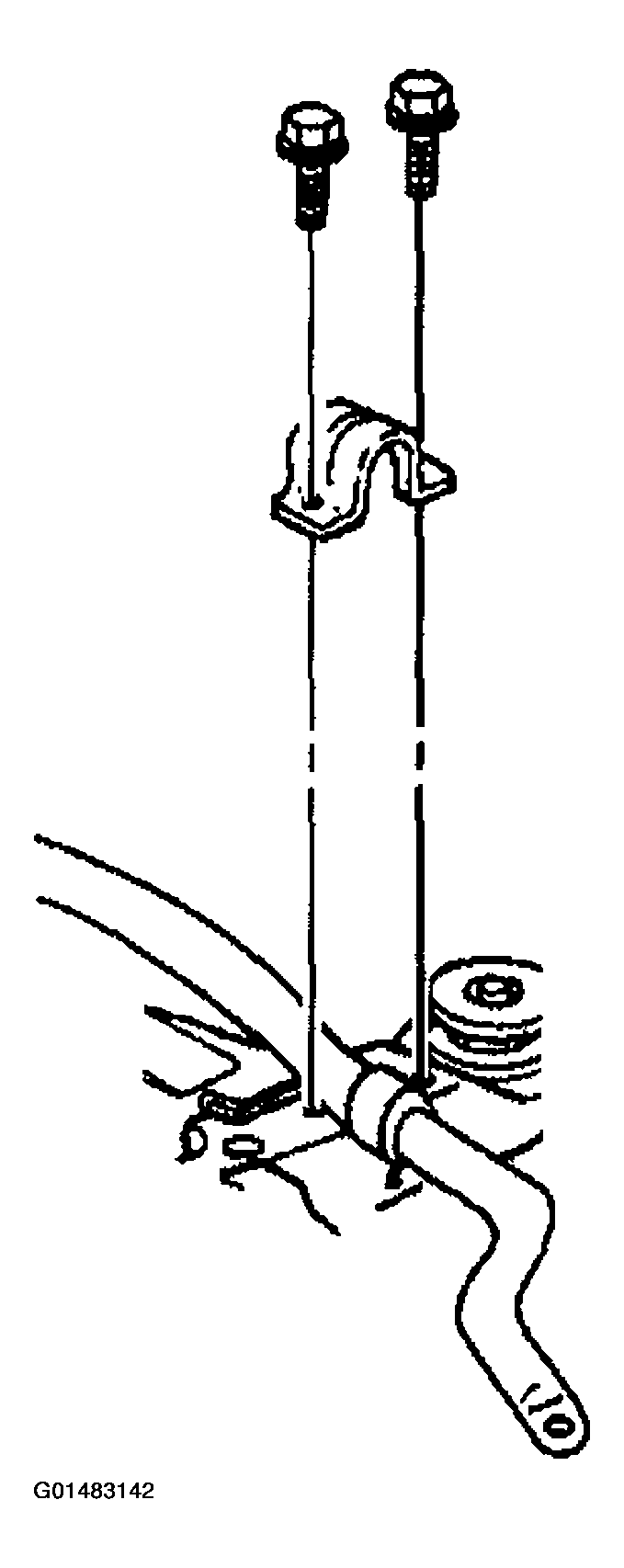

    Fig 2: Installing Stabilizer Shaft Brackets
    G01483142Courtesy of GENERAL MOTORS CORP.
