Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Move/turn the tires in order to access the stabilizer shaft insulator brackets.
  3. Remove the left and right side stabilizer shaft insulator bracket bolts.
  4. Remove the left and right side stabilizer shaft insulator brackets.

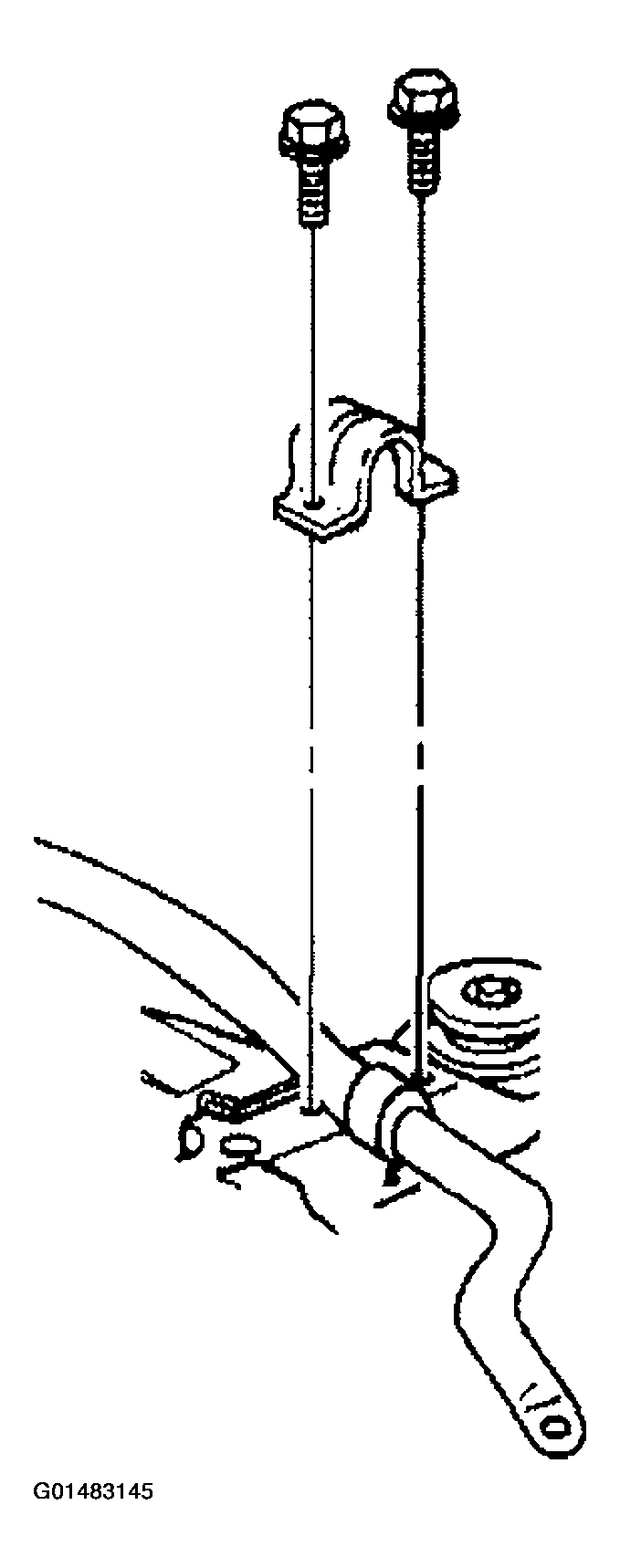

    Fig 1: Removing Left And Right Side Stabilizer Shaft Insulator Brackets
    G01483145Courtesy of GENERAL MOTORS CORP.
  5. Remove the left and right side stabilizer shaft insulators (1) from the stabilizer shaft (2).
    Fig 2: Removing Left And Right Side Stabilizer Shaft Insulators From Stabilizer Shaft
    G01483146Courtesy of GENERAL MOTORS CORP.
