Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left and right side stabilizer shaft insulators (1) to the stabilizer shaft (2).
    Fig 1: Installing Left And Right Side Stabilizer Shaft Insulators To Stabilizer Shaft
    G01483147Courtesy of GENERAL MOTORS CORP.
  2. Install the left and right side stabilizer shaft insulator brackets.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the left and right side stabilizer shaft insulator bracket bolts.

    Tighten

    Tighten the stabilizer shaft insulator bracket bolts to 48 N.m (35 lb in).

  4. Lower the vehicle.

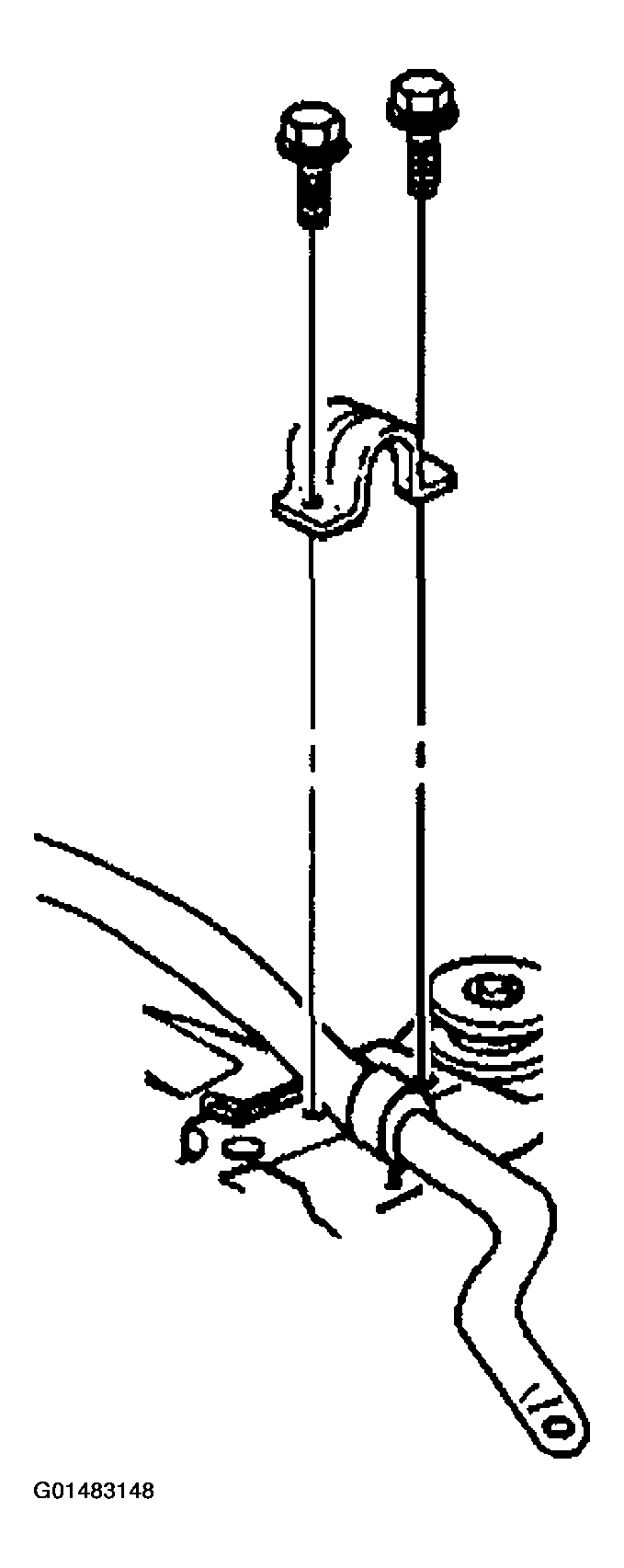

    Fig 2: Installing Left And Right Side Stabilizer Shaft Insulator Brackets
    G01483148Courtesy of GENERAL MOTORS CORP.
