Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower control arm. Refer to LOWER CONTROL ARM REPLACEMENT   .
  2. Secure the lower control arm in a vice.
  3. Mark the lower control arm along the flat edge of the bushing flange.

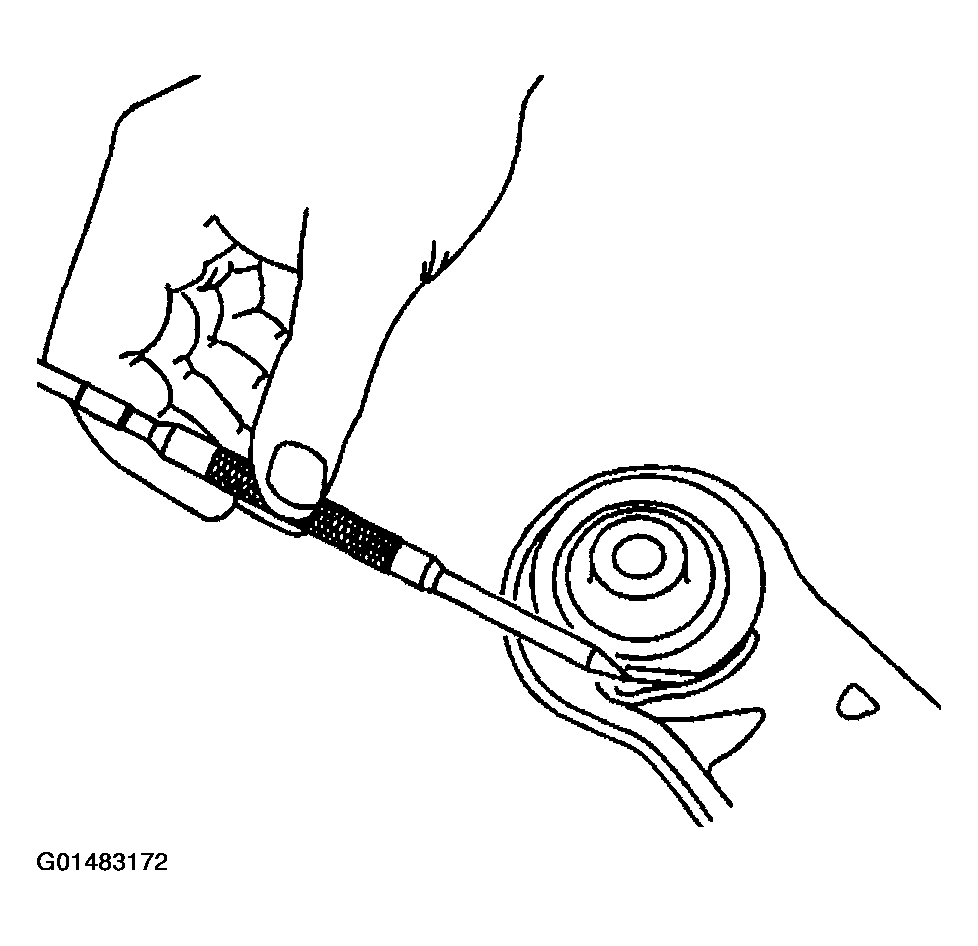

    Fig 1: Marking Lower Control Arm Along Flat Edge Of Bushing Flange
    G01483172Courtesy of GENERAL MOTORS CORP.

    Important:  Apply J 23444-A, or equivalent high pressure lubricant, to the threads of the J 21474-27.

  4. Assemble the following bushing removal tools as shown:
    • J 21474-27  Puller Bolt
    • J 21474  Control Arm Bushing Installer
    • J 34126  Driven Sprocket Support Bearing Installer
    • J 35379  Front Knuckle Support
    • J 21474-2  Bushing Installer
    • J 21474-4  Nut
  5. Tighten the J 21474-4  until the bushing is removed from the control arm.
  6. Disassemble the bushing removal tools.

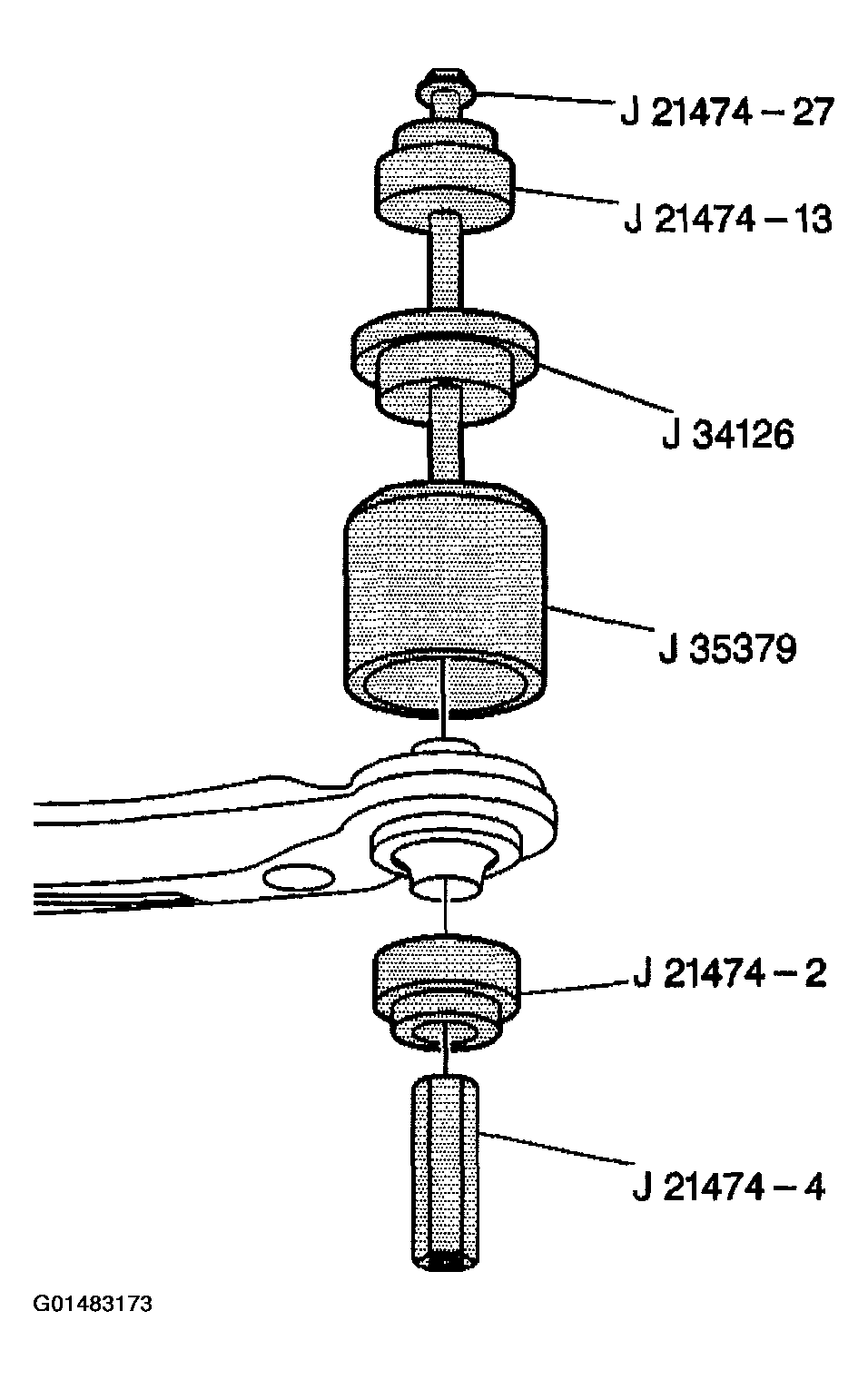

    Fig 2: Disassembling Bushing Removal Tools
    G01483173Courtesy of GENERAL MOTORS CORP.
