Rear Toe Adjustment

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important: Make any adjustments to camber before setting toe.

Loosen the jam nut (6) at the rear wheel tie rod.
Adjust the toe to the proper setting by turning the inner link adjustment hex (4). Refer to WHEEL ALIGNMENT SPECIFICATIONS .
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
When the toe adjustment is correct, tighten the jam nut.
Tighten

Tighten the nut to 62 N.m (45 lb ft).
Recheck the toe alignment.

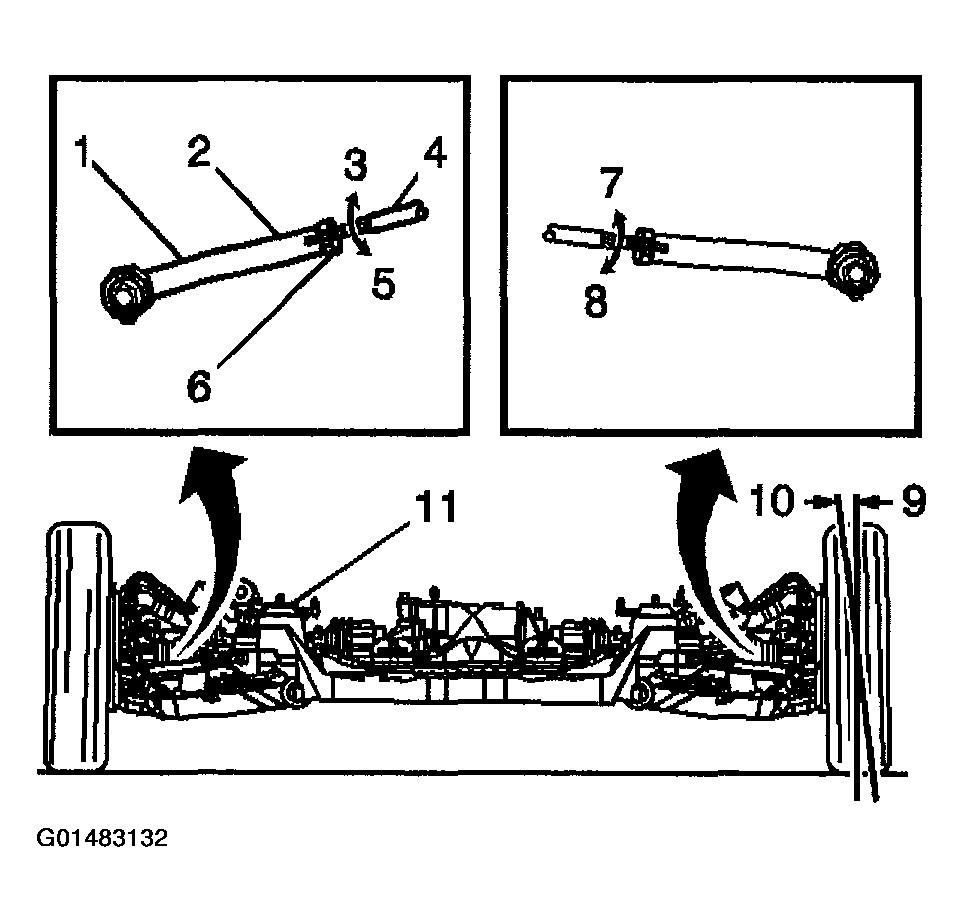

Fig 1: Identifying Rear Toe Adjustment
Courtesy of GENERAL MOTORS CORP.
