Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place vehicle on alignment machine with rear wheels supported by Weaver plates.
  2. Loosen rear lower control arm mounting nuts (3, 4).
  3. Adjust camber with cam bolt (1).
  4. Confirm correct camber value.
  5. Check toe alignment and adjust if required.

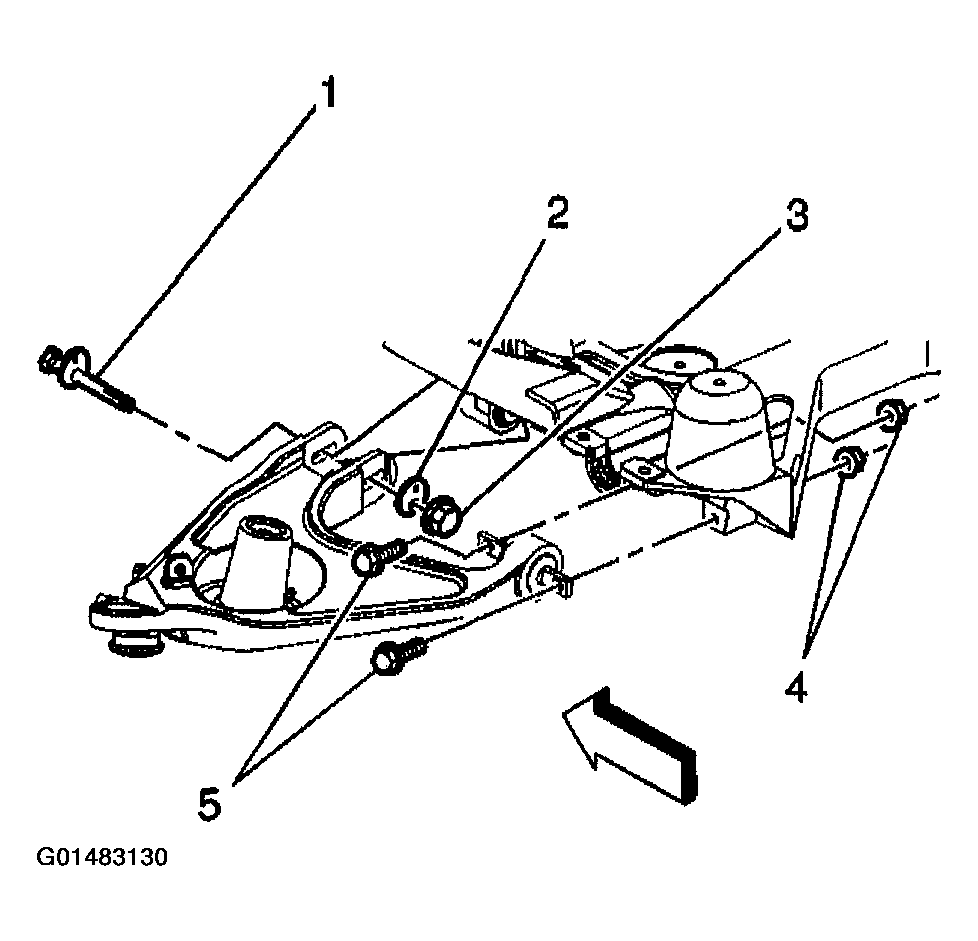

    Fig 1: Loosening Rear Lower Control Arm Mounting Nuts
    G01483130Courtesy of GENERAL MOTORS CORP.
