Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM  in Airbag.
  2. Remove the steering wheel from the steering column. Refer to STEERING WHEEL REPLACEMENT   .
  3. Remove the tilt lever assembly. Refer to TILT LEVER REPLACEMENT   .
  4. Remove the 2 pan head tapping screws (2) from the lower trim cover (1).
  5. Remove the lower trim cover (1).
    Fig 1: Removing 2 Pan Head Tapping Screws
    G01483006Courtesy of GENERAL MOTORS CORP.
  6. Remove the TORX® head screw (1) from the upper trim cover (2).

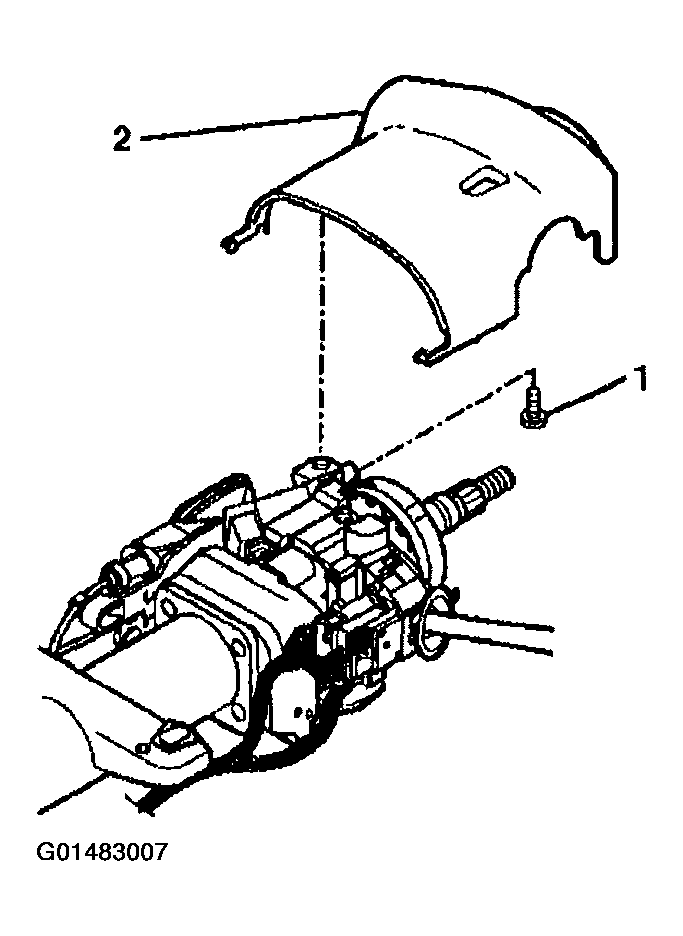

    Fig 2: Removing TORX® Head Screw
    G01483007Courtesy of GENERAL MOTORS CORP.
  7. Remove the upper trim cover (2).
  8. If necessary, remove the trim cover protector (1) from the lower trim cover (2).
  9. Remove the shift lever. Refer to SHIFT LEVER REPLACEMENT   .

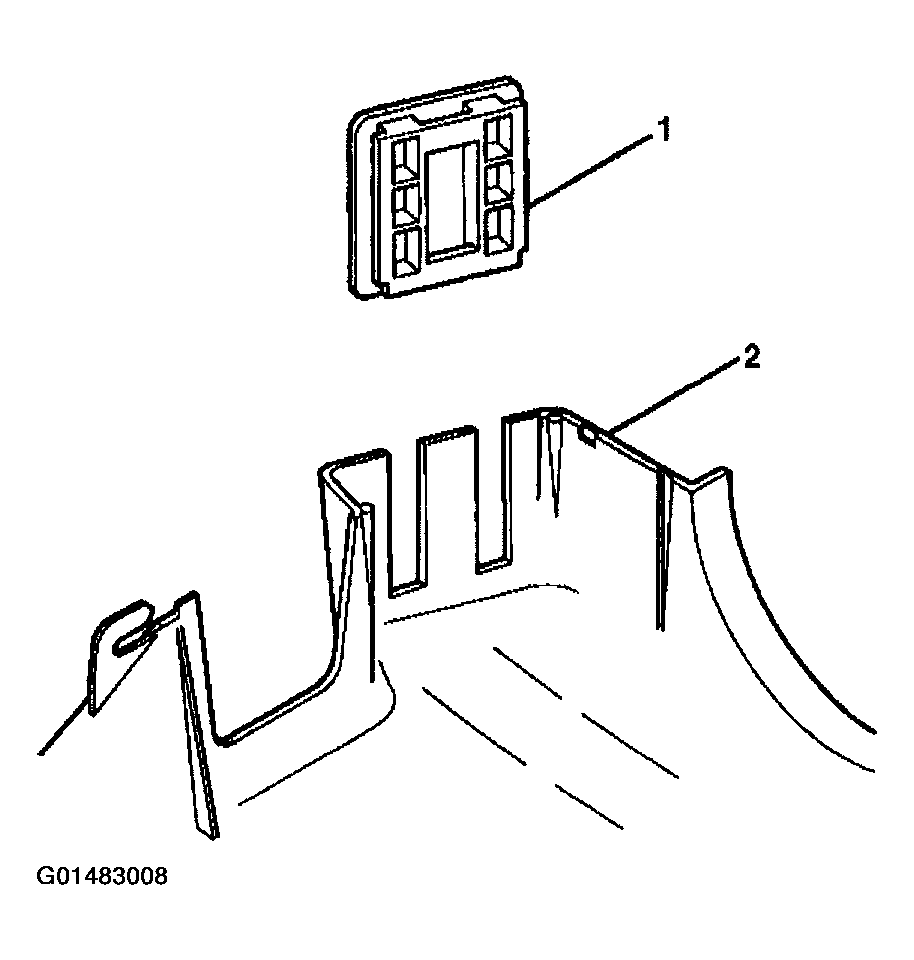

    Fig 3: Removing Trim Cover Protector
    G01483008Courtesy of GENERAL MOTORS CORP.
