Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. If necessary, install the trim cover protector (1) to the lower trim cover (2).
  2. Install the shift lever. Refer to SHIFT LEVER REPLACEMENT   .
    Fig 1: Installing Trim Cover Protector
    G01483009Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the upper trim cover (2) and secure by using the TORX® head screw (1).

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

    Fig 2: Installing Upper Trim Cover
    G01483010Courtesy of GENERAL MOTORS CORP.
  4. Install the lower trim cover (1) and secure by using 2 pan head tapping screws (2).

    Tighten

    Tighten the screws to 3.5 N.m (31 lb in).

  5. Install the tilt lever assembly. Refer to TILT LEVER REPLACEMENT   .
  6. Install the steering wheel onto the column. Refer to STEERING WHEEL REPLACEMENT   .
  7. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM  in Airbag.

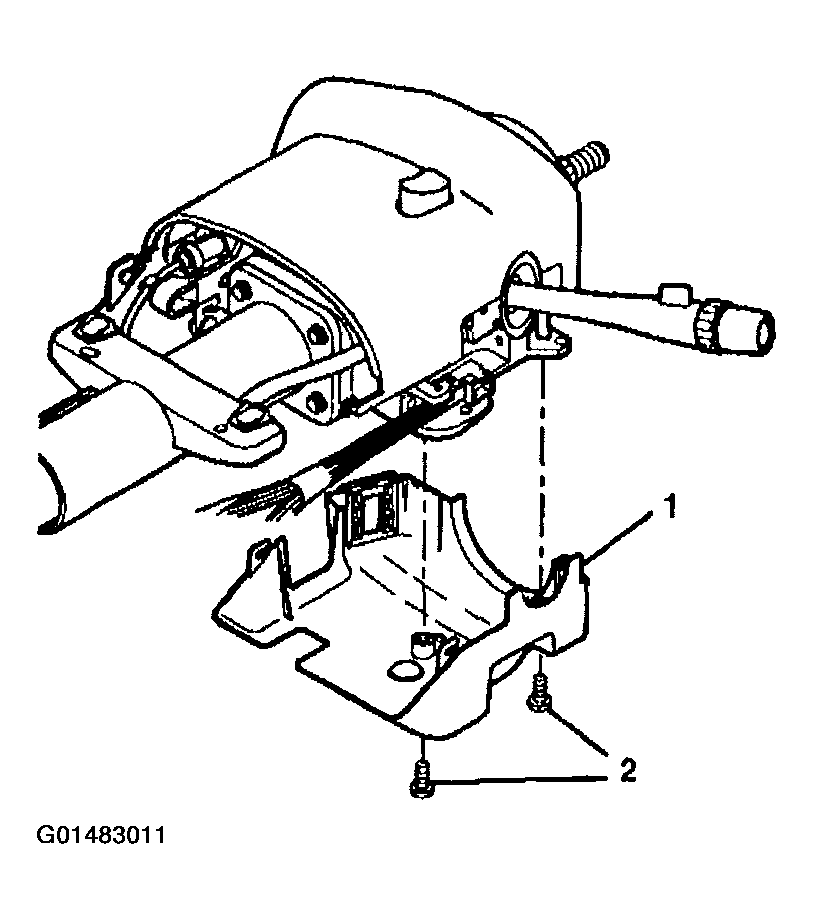

    Fig 3: Installing Lower Trim Cover
    G01483011Courtesy of GENERAL MOTORS CORP.
