Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT  in Instrument Panel, Gages and Console.
  2. Remove the steering column upper nut.
  3. Remove the center console.

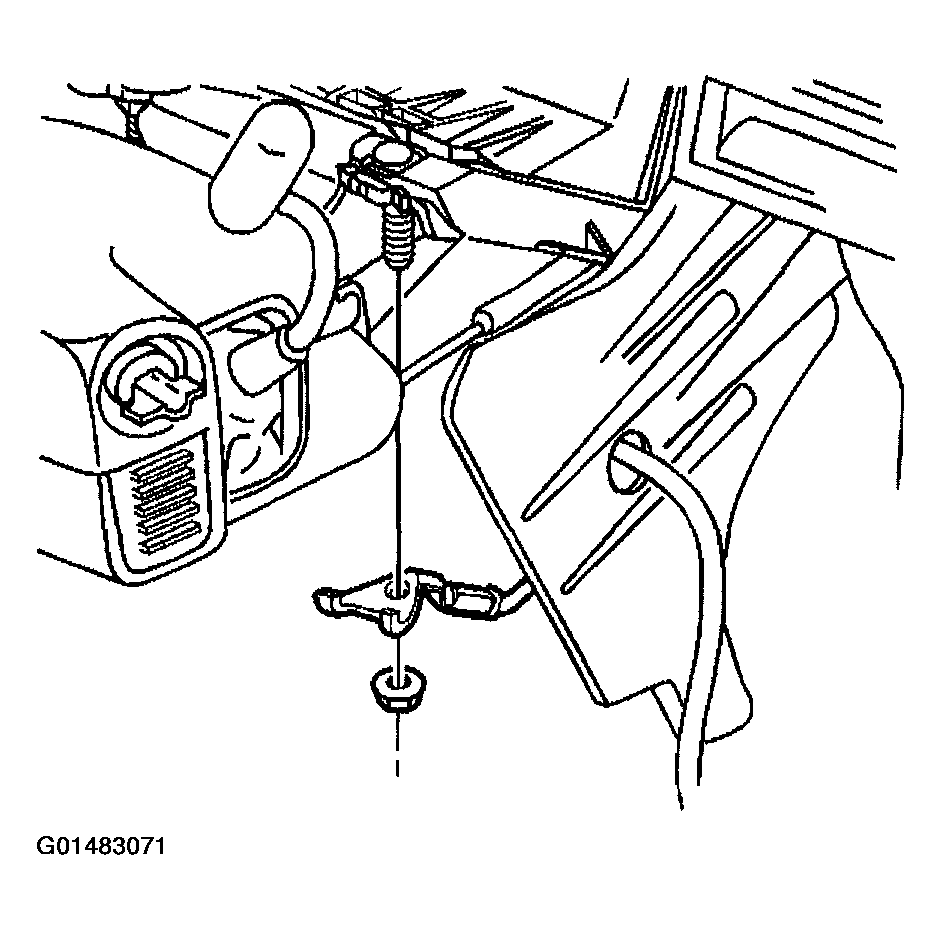

    Fig 1: Removing Steering Column Upper Nut
    G01483071Courtesy of GENERAL MOTORS CORP.
  4. Remove the anchor cable nut from the center console bracket.
  5. Remove the anchor cable.

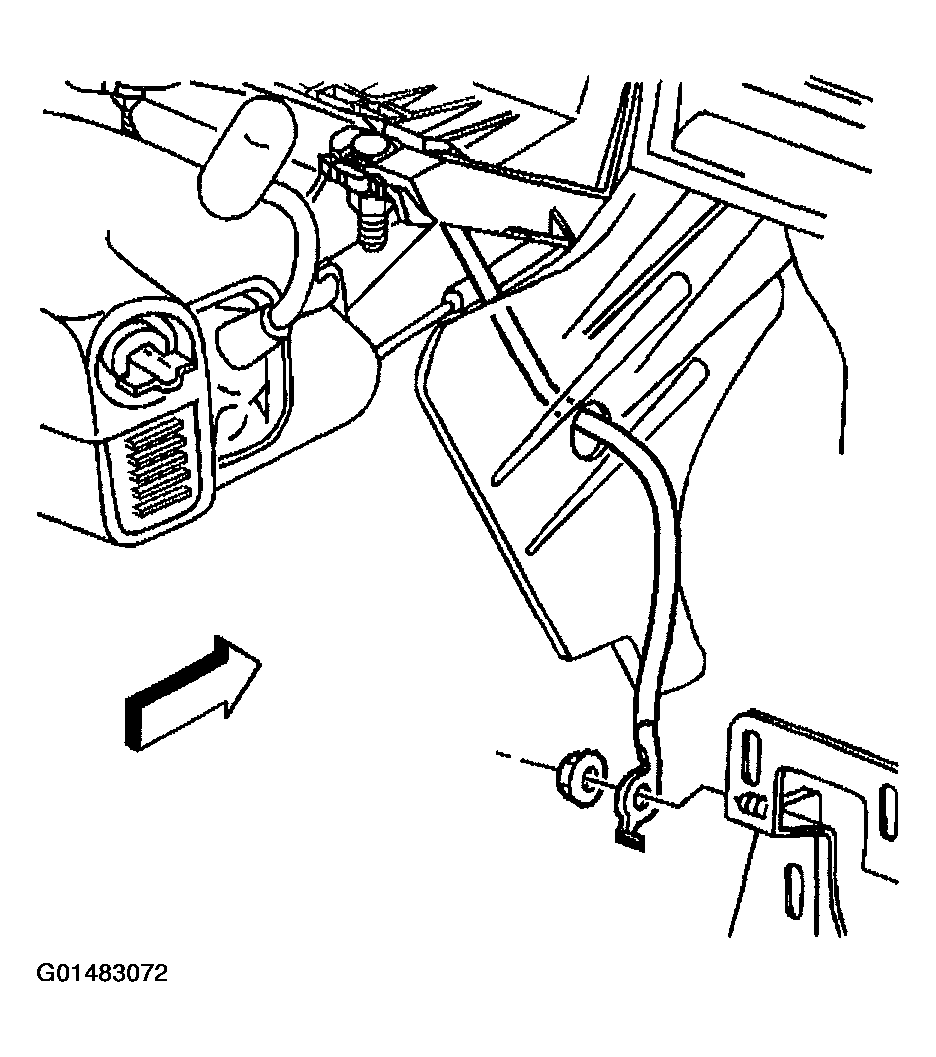

    Fig 2: Removing Anchor Cable Nut From Center Console Bracket
    G01483072Courtesy of GENERAL MOTORS CORP.
