Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Properly route the steering column anchor cable.
  2. Install the anchor cable to the center console bracket stud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the anchor cable nut to the center console bracket stud.

    Tighten

    Tighten the nut to 10 N.m (14 lb ft).

  4. Install the anchor cable end to the steering column stud.

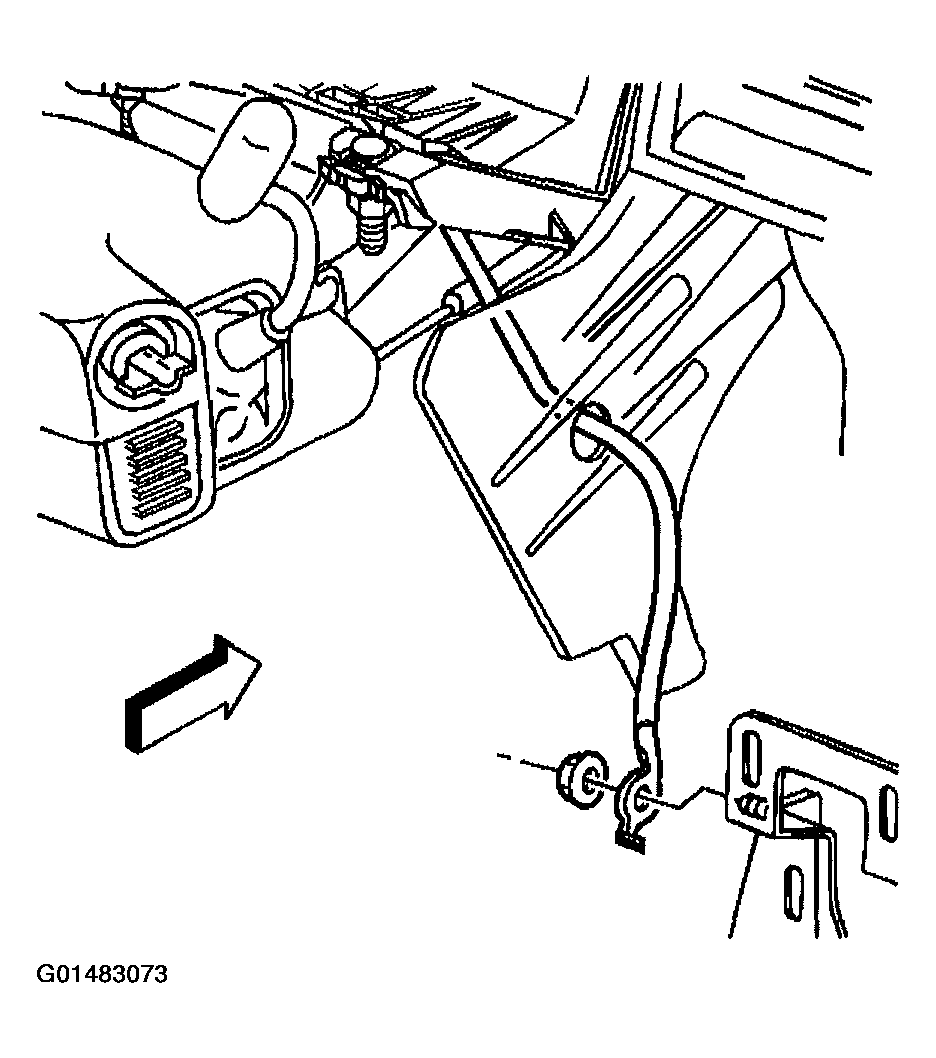

    Fig 1: Installing Anchor Cable Nut To Center Console Bracket Stud
    G01483073Courtesy of GENERAL MOTORS CORP.
  5. Install the steering column nut. Refer to STEERING COLUMN REPLACEMENT   .
  6. Install the center console.
  7. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT  in Instrument Panel, Gages and Console.

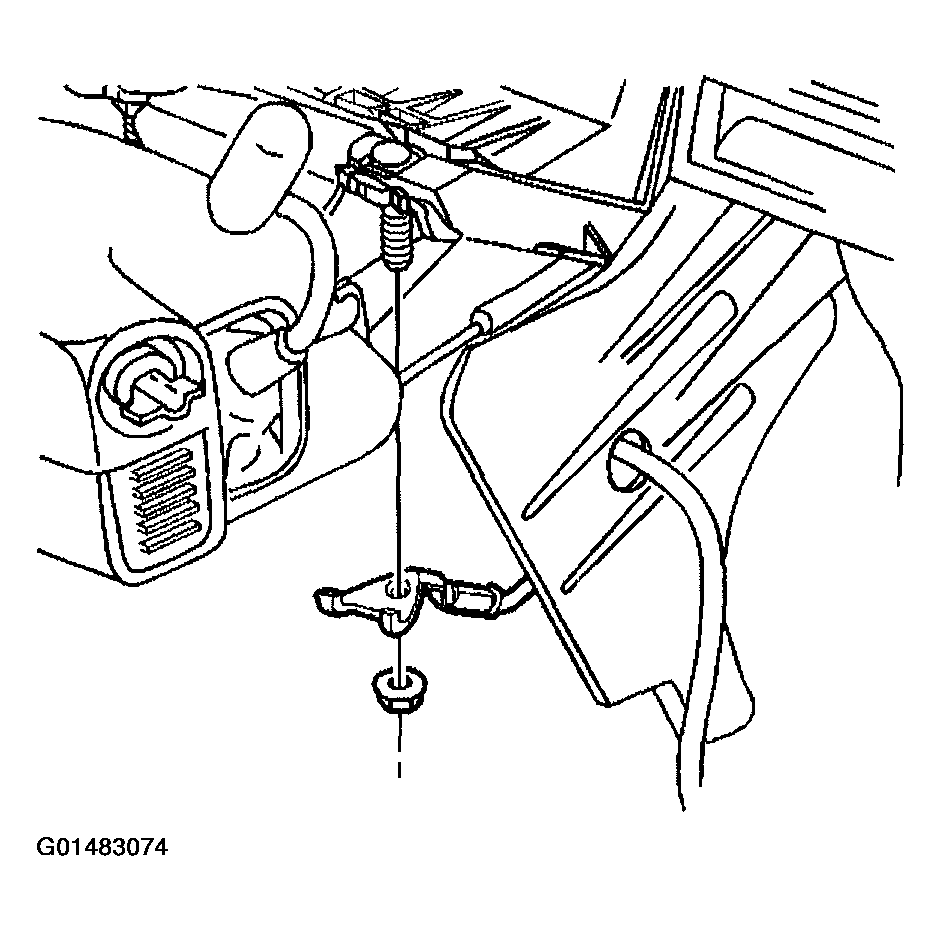

    Fig 2: Installing Steering Column Nut
    G01483074Courtesy of GENERAL MOTORS CORP.
