Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the intermediate shaft lower seal over the intermediate shaft and to the steering gear.
  2. Install the intermediate shaft upper seal over the lower seal and to the instrument panel.
  3. Connect the intermediate shaft to the steering column. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT   .
  4. Install the intermediate shaft seal to the steering column.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the intermediate shaft seal bolts.

    Tighten

    Tighten the bolts to 3 N.m (27 lb in).

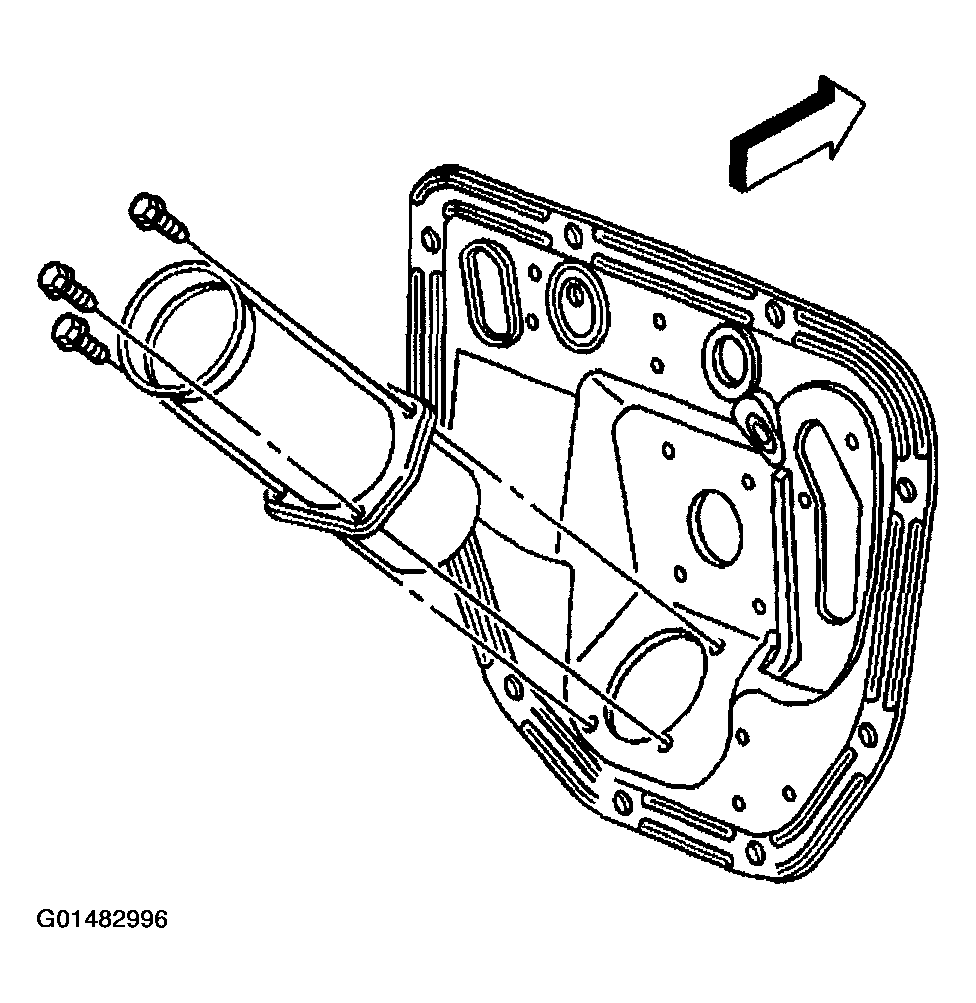

    Fig 1: Installing Intermediate Shaft Seal Bolts
    G01482996Courtesy of GENERAL MOTORS CORP.
