Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Position the intermediate steering shaft into place. Install the intermediate steering shaft upper pinch bolt at the steering column.

    Tighten

    Tighten the bolt to 48 N.m (35 lb ft).

    Fig 1: Installing Intermediate Steering Shaft Upper Pinch Bolt
    G01483000Courtesy of GENERAL MOTORS CORP.
  2. Install the intermediate steering shaft seal onto the steering column.
  3. Raise and support the vehicle. Refer to JACKING AND LIFTING in General information.
  4. Install the intermediate steering shaft (1) to the power steering gear stub shaft (2).
  5. Install the intermediate steering shaft lower pinch bolt at the power steering gear stub shaft.

    Tighten

    Tighten the bolt to 48 N.m (35 lb ft).

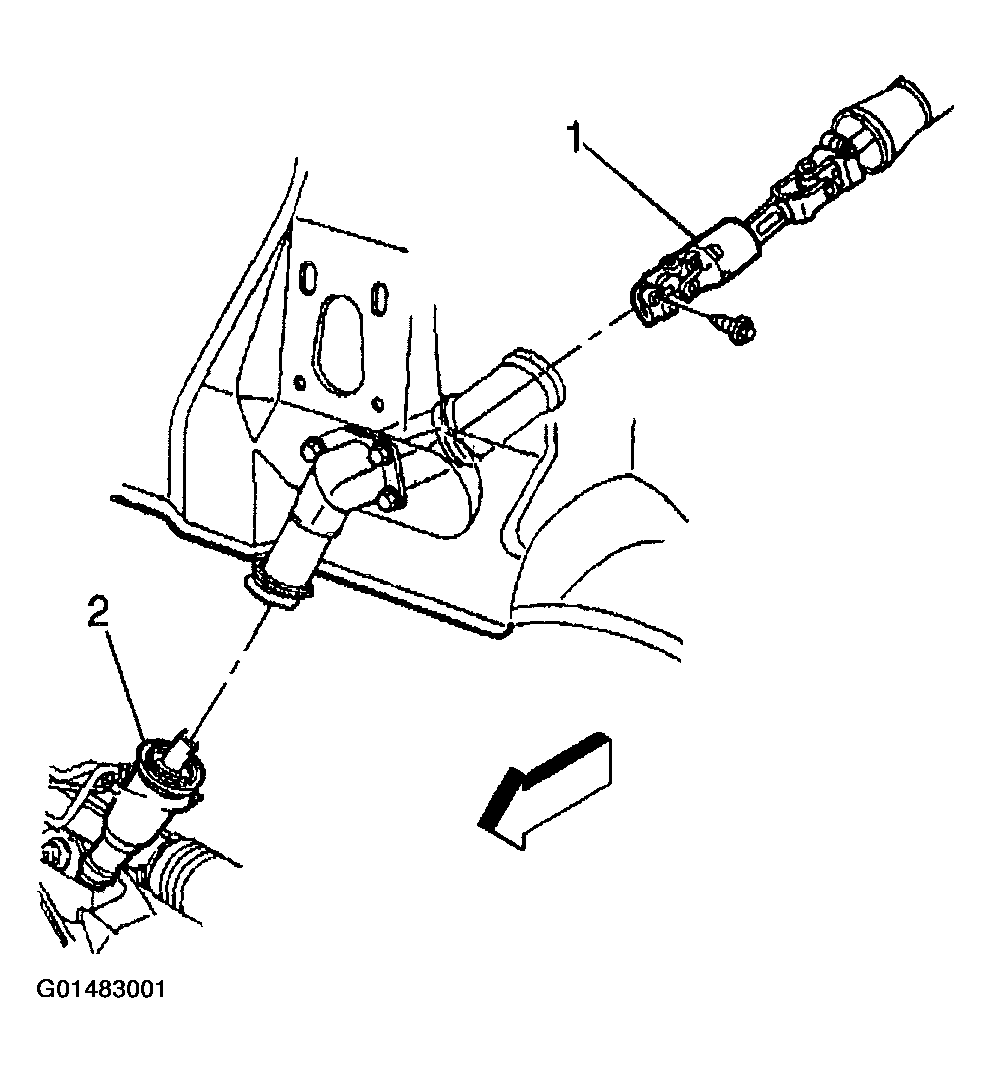

    Fig 2: Installing Intermediate Steering Shaft To Power Steering Gear Stub Shaft
    G01483001Courtesy of GENERAL MOTORS CORP.
  6. Install the intermediate steering shaft seal onto the power steering gear.
  7. Lower the vehicle.
  8. Install the left knee bolster. Refer to KNEE BOLSTER REPLACEMENT  in Instrument Panel, Gages, and Console.

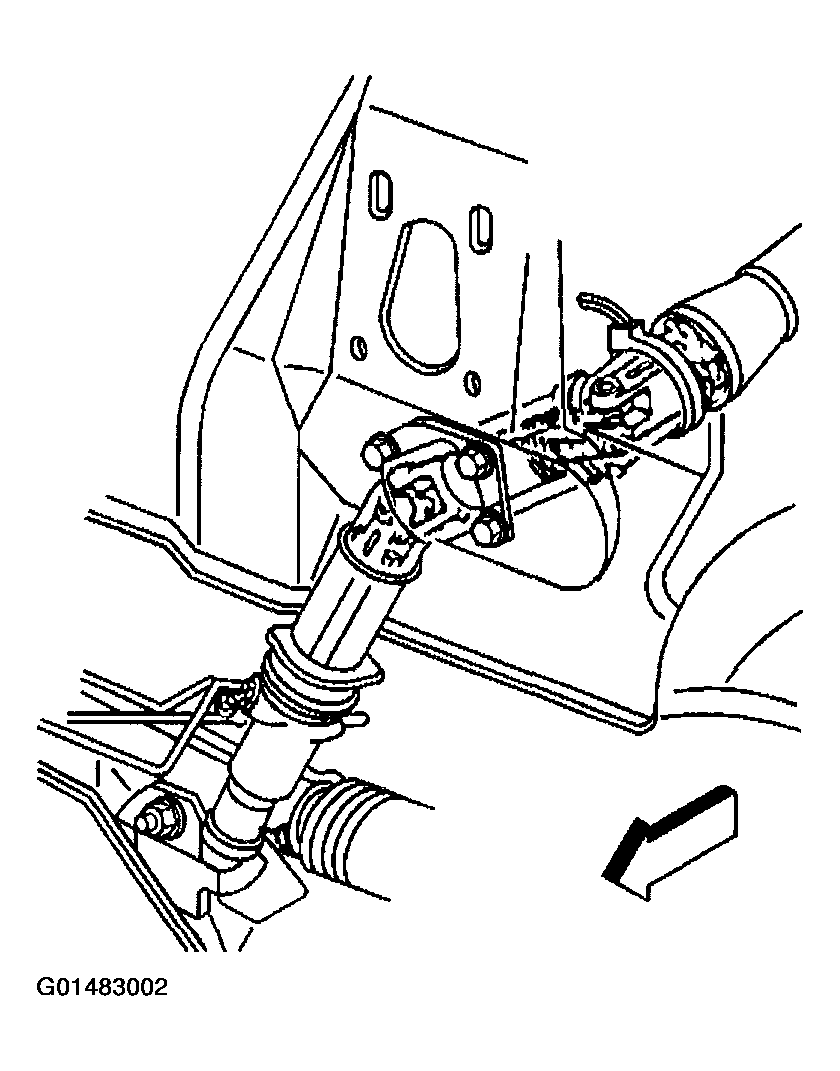

    Fig 3: Installing Intermediate Steering Shaft Seal Onto Power Steering Gear
    G01483002Courtesy of GENERAL MOTORS CORP.
