Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the ignition lock cylinder case assembly (1) and secure by using 3 pan head tapping screws (2).

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

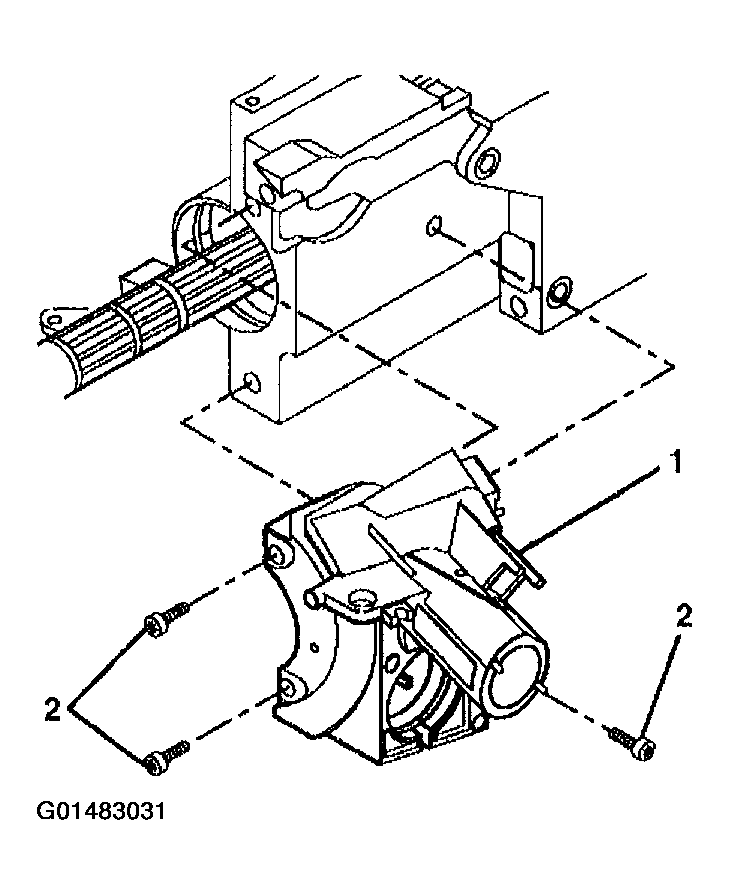

    Fig 1: Installing Ignition Lock Cylinder Case Assembly
    G01483031Courtesy of GENERAL MOTORS CORP.
  2. Connect the park lock cable assembly (1)
    • The lock cylinder should be in the OFF-LOCK position.
    • Install the locking tab at the end of the park lock cable assembly (1) into the ignition lock cylinder case assembly.
    Fig 2: Connecting Park Lock Cable Assembly
    G01483032Courtesy of GENERAL MOTORS CORP.
  3. Adjust the park lock cable assembly.
    1. 3.1 Use the gear shift lever to put the column in the PARK position.
    2. 3.2 Put the ignition switch in the OFF-LOCK position. Remove the key.
    3. 3.3 Unlock the adjuster ring (1) on the park lock cable assembly with J 41396.
    4. 3.4 Pull on the cable until the park lock latch contacts the gear shift lever. Release the cable.
    5. 3.5 Lock the adjuster ring (1) securely in place on the park lock cable assembly with J 41396.

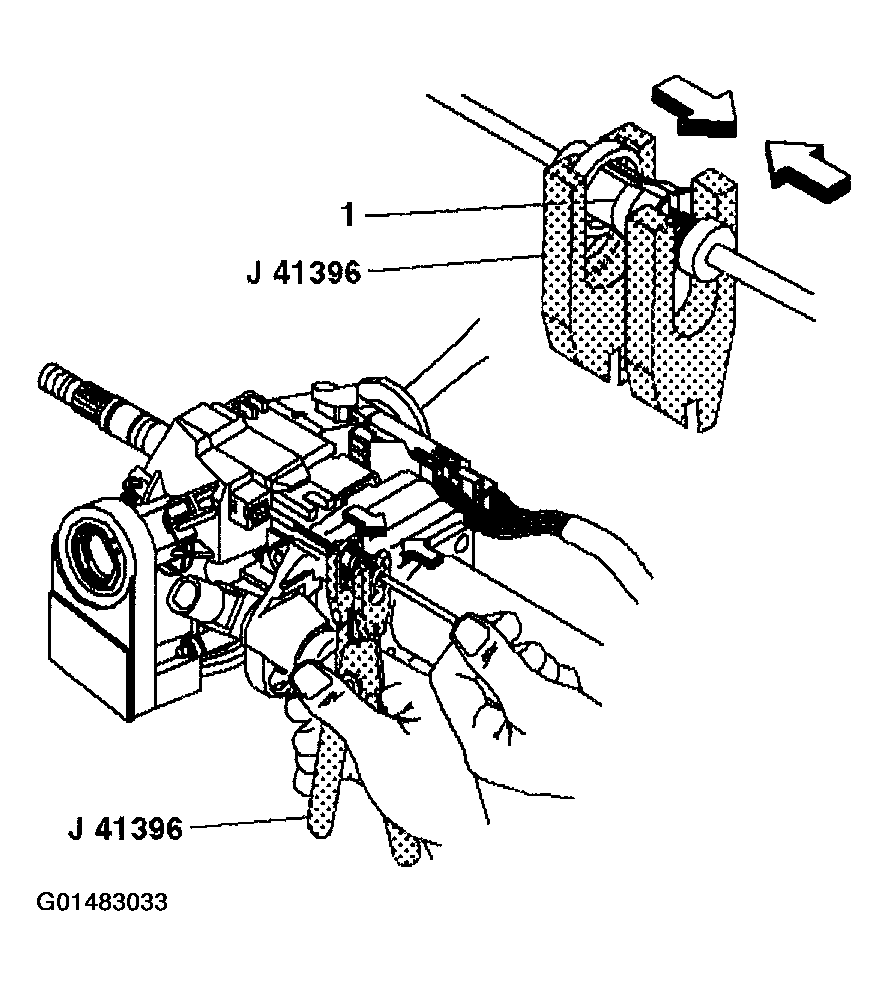

    Fig 3: Adjusting Park Lock Cable Assembly
    G01483033Courtesy of GENERAL MOTORS CORP.
  4. Inspect the park lock cable assembly.
    1. 4.1 Put the lock cylinder in the OFF-LOCK position. The gear shift lever should not be able to shift out of the PARK position.
    2. 4.2 Turn the key to the RUN position and put the gear shift lever in the NEUTRAL position.
    3. 4.3 With the gear shift lever in the NEUTRAL position the lock cylinder should not be able to go into the OFF-LOCK position.
    4. 4.4 Put the gear shift lever in the PARK position.
    5. 4.5 Put the lock cylinder in the OFF-LOCK position and then remove the key.
  5. Install the ignition switch assembly. Refer to IGNITION SWITCH REPLACEMENT   .
  6. Install the turn signal cancel cam. Refer to TURN SIGNAL CANCEL CAM AND STEERING SHAFT UPPER BEARING SPRING REPLACEMENT   .
  7. Install the steering column into the vehicle. Refer to STEERING WHEEL REPLACEMENT   .
  8. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM  in Airbag
