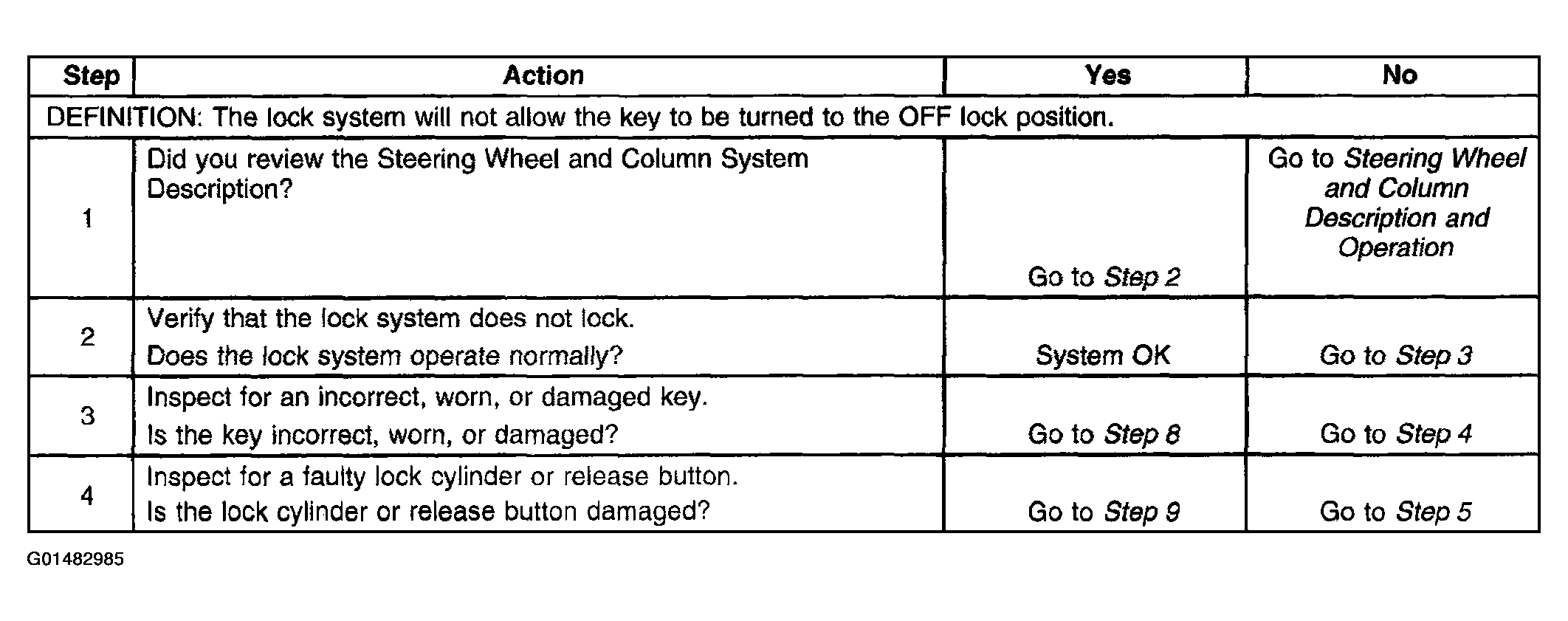

Fig 1: Lock System Does Not Lock Specification (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

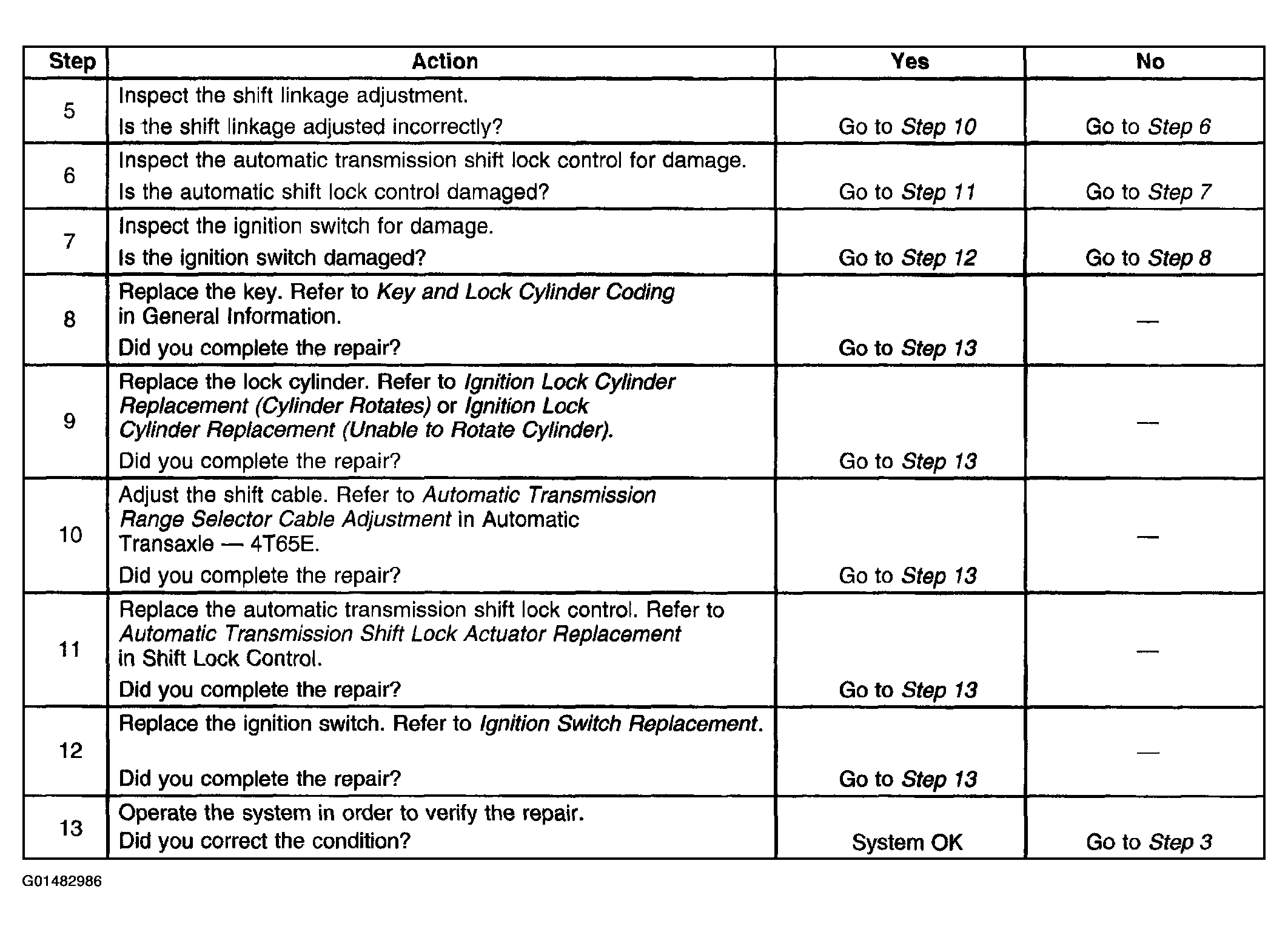

Fig 2: Lock System Does Not Lock Specification (2 Of 2)
