Disassembly Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. To remove the rack and pinion boot. Refer to RACK AND PINION BOOT REPLACEMENT - OFF VEHICLE   .
  2. Place the gear in a vise.
    NOTE: Do not change the steering gear preload adjustment before moving the inner tie rod from the steering gear. Changing the steering gear preload adjustment before moving the inner tie rod could result in damage to the pinion and the steering gear.
  3. Remove the shock dampener (4) from the inner tie rod assembly (6).
  4. Slide the shock dampener (4) back on the rack (5).
    NOTE: Refer to PIPE WRENCH POSITIONING NOTICE in Cautions and Notices.
  5. Place a pipe wrench on the rack (5) next to the inner tie rod housing (6).
  6. Place a wrench on the flats of the inner tie rod housing (6).
  7. Rotate the inner tie rod housing (6) counterclockwise, while holding the rack stationary, until the inner tie rod separates from the rack (5).

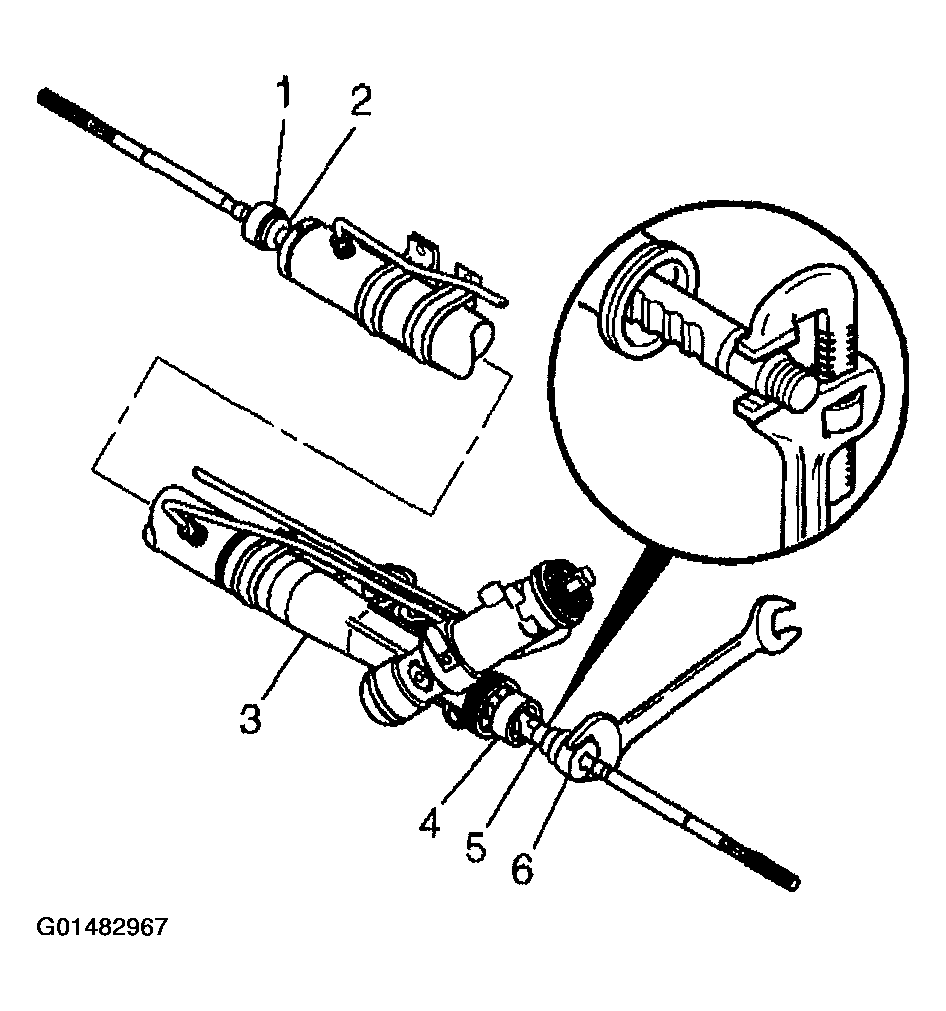

    Fig 1: Replacing Tie Rod Disassembly Procedure (1 Of 3)
    G01482967Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not change the steering gear preload adjustment before moving the inner tie rod from the steering gear. Changing the steering gear preload adjustment before moving the inner tie rod could result in damage to the pinion and the steering gear.
  8. Remove the shock dampener (3) from the inner tie rod housing (2).
  9. Slide the shock dampener (3) back on the rack (5).
    NOTE: Refer to PIPE WRENCH POSITIONING NOTICE in Cautions and Notices.
  10. Place a pipe wrench on the rack.
  11. Place a wrench on the flats of the inner tie rod housing (2).
  12. Rotate the inner tie rod housing (2) counterclockwise, while holding the rack stationary, until the inner tie rod (1) separates from the rack (5).

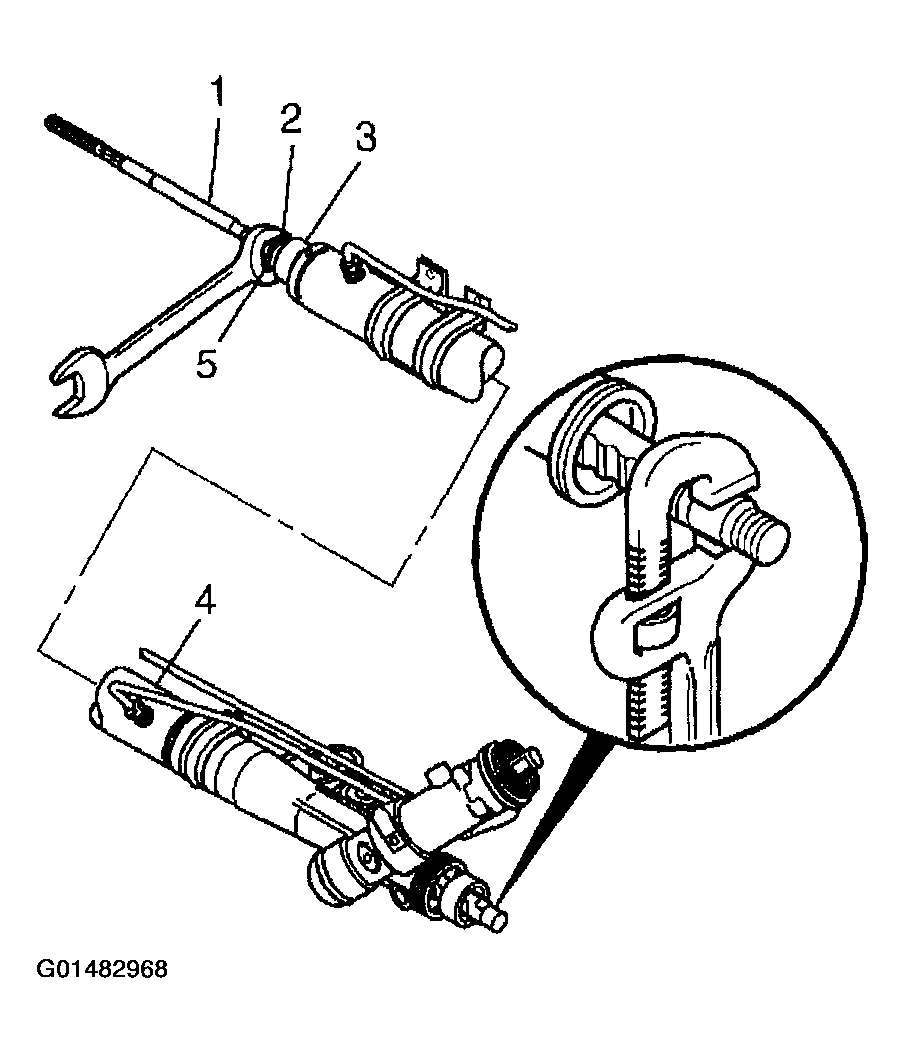

    Fig 2: Replacing Tie Rod Disassembly Procedure (2 Of 3)
    G01482968Courtesy of GENERAL MOTORS CORP.
  13. If female rack (1) and male inner tie rod (3), remove the old LOCTITE® from the threads (2) of the inner tie rod and the rack.

    If male rack (5) and female inner tie rod (4) LOCTITE® will not be present.

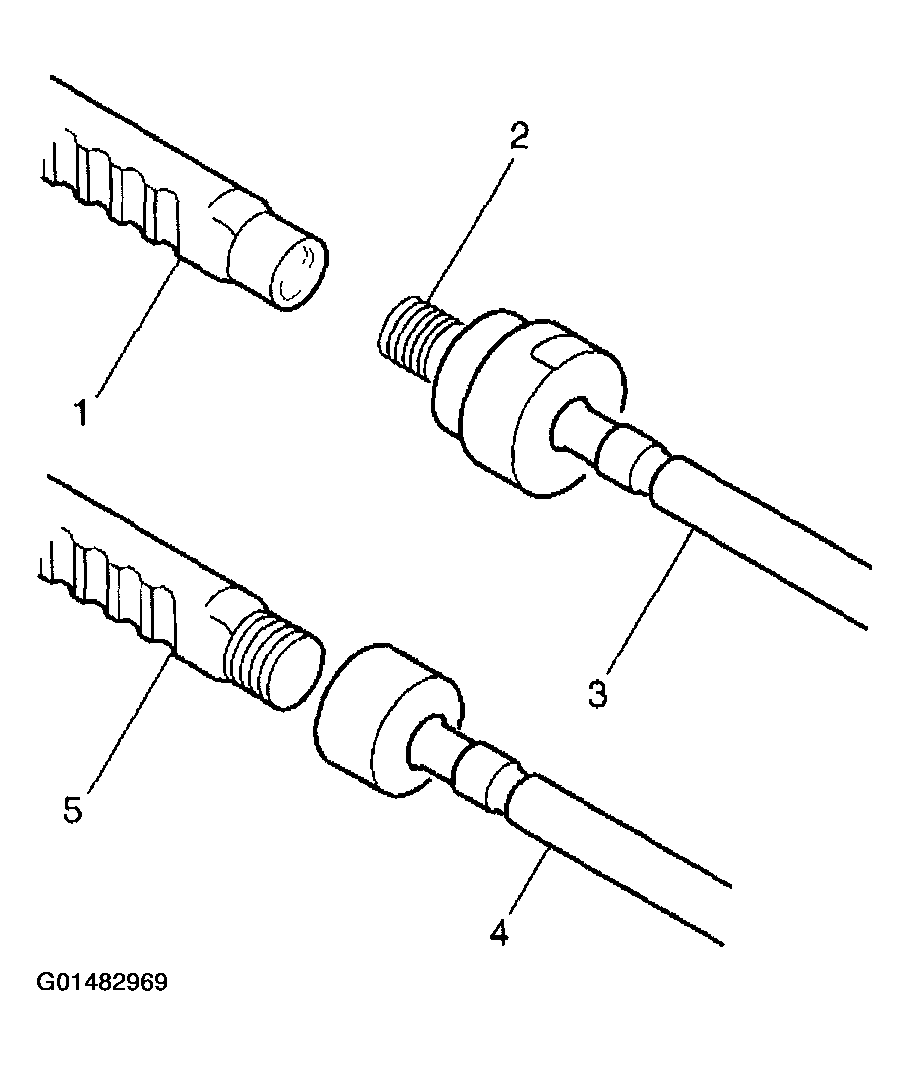

    Fig 3: Replacing Tie Rod Disassembly Procedure (3 Of 3)
    G01482969Courtesy of GENERAL MOTORS CORP.
