Disassembly Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen both cylinder line fittings on the cylinder end of the gear assembly.
  2. Loosen both fittings on the cylinder line assemblies (1) at the valve end of the gear assembly.
  3. Remove both cylinder line assemblies (1) from the rack and pinion gear assembly (2).
    Fig 1: Removing Both Cylinder Line Assemblies From Rack And Pinion Gear Assembly
    G01482975Courtesy of GENERAL MOTORS CORP.
  4. Remove the O-ring seals (1) from the valve end of line.
  5. Discard the O-ring seals (1).

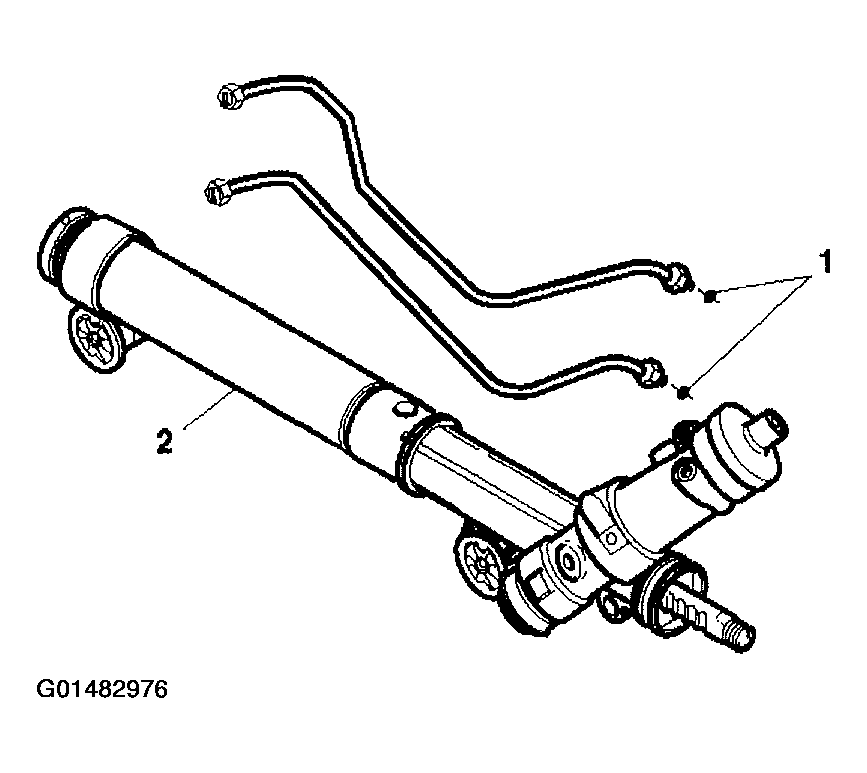

    Fig 2: Removing O-Ring Seals From Valve End Of Line
    G01482976Courtesy of GENERAL MOTORS CORP.
