Disassembly Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

To remove the outer tie rod; refer to TIE ROD END REPLACEMENT - OUTER .
Remove the hex jam nut (2) from the inner tie rod assembly (1).

Fig 1: Removing Hex Jam Nut From Inner Tie Rod Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the tie rod end clamp (2) from the rack and pinion boot (1).

Fig 2: Removing Tie Rod End Clamp From Rack And Pinion Boot
Courtesy of GENERAL MOTORS CORP.
Remove the boot clamp (1) from the rack and pinion boot with side cutters.
Discard the boot clamp (1).

Fig 3: Removing Boot Clamp From Rack And Pinion Boot With Side Cutters
Courtesy of GENERAL MOTORS CORP.

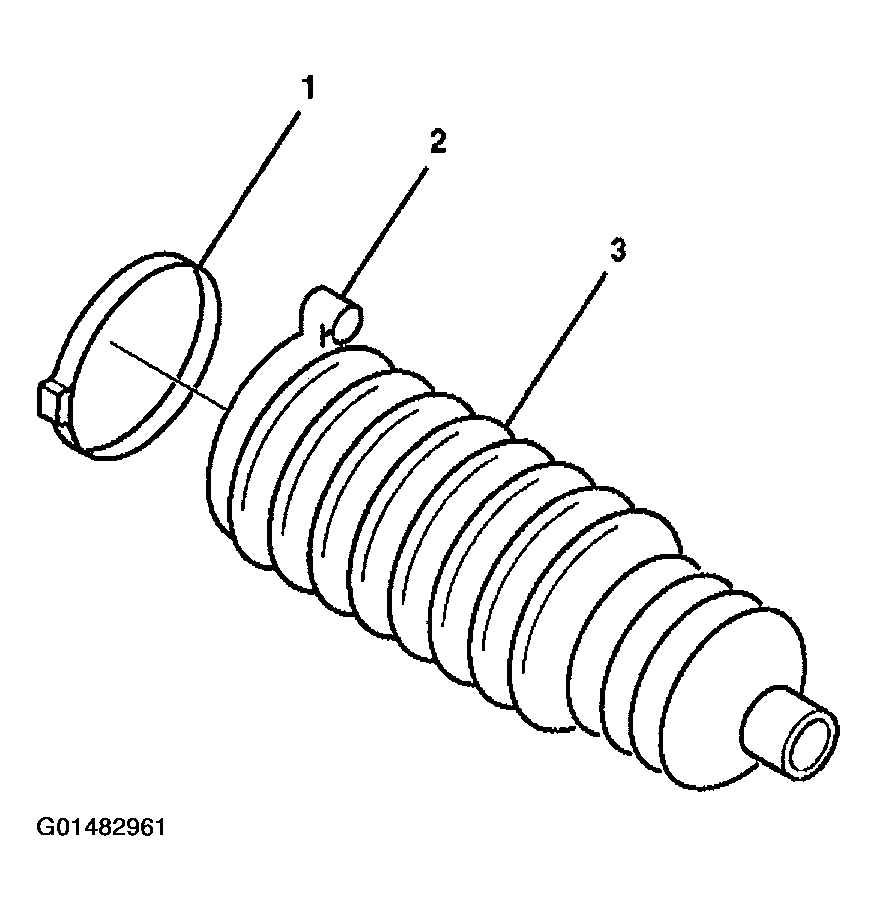

Remove the rack and pinion boot (1) from the rack and pinion gear assembly.

Fig 4: Removing Rack And Pinion Boot From Rack And Pinion Gear Assembly
