Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt from the pump. Refer to DRIVE BELT REPLACEMENT  in Engine Mechanical - 3.4L.
  2. Remove the pressure hose from the pump.

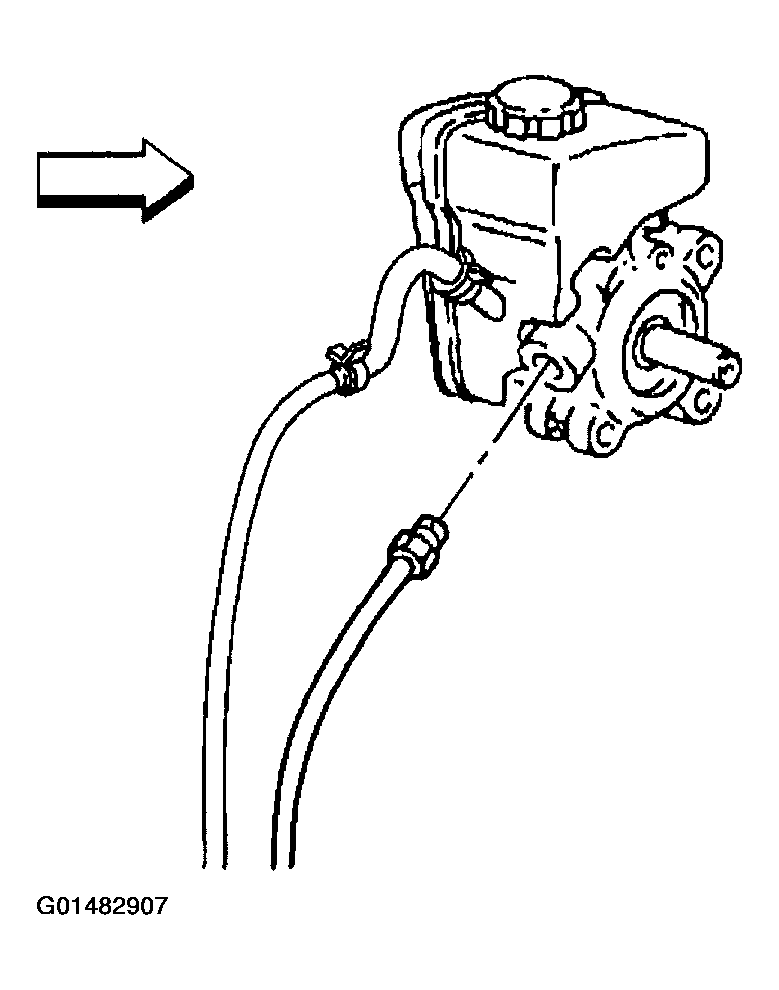

    Fig 1: Removing Pressure Hose From Pump
    G01482907Courtesy of GENERAL MOTORS CORP.
  3. Remove the return hose from the pump.

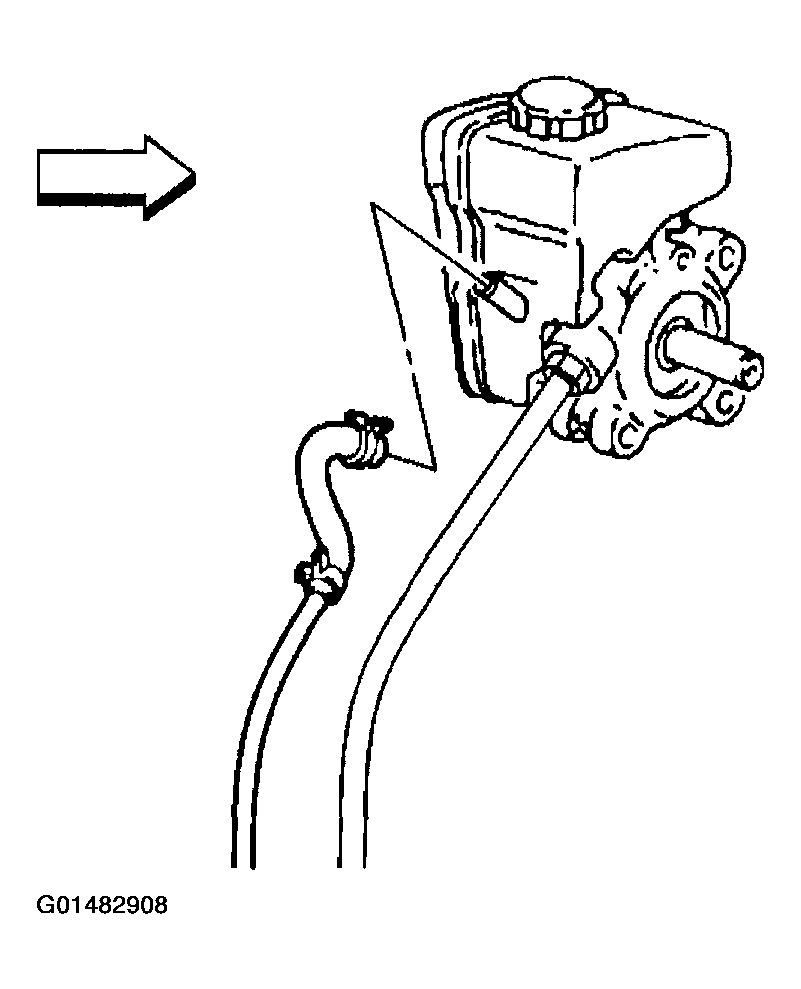

    Fig 2: Removing Return Hose From Pump
    G01482908Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts from the pump.
  5. Remove the power steering pump from the vehicle.
  6. Remove the power steering pump pulley from the pump. Refer to POWER STEERING PULLEY REPLACEMENT   .
  7. Remove the reservoir from the pump.

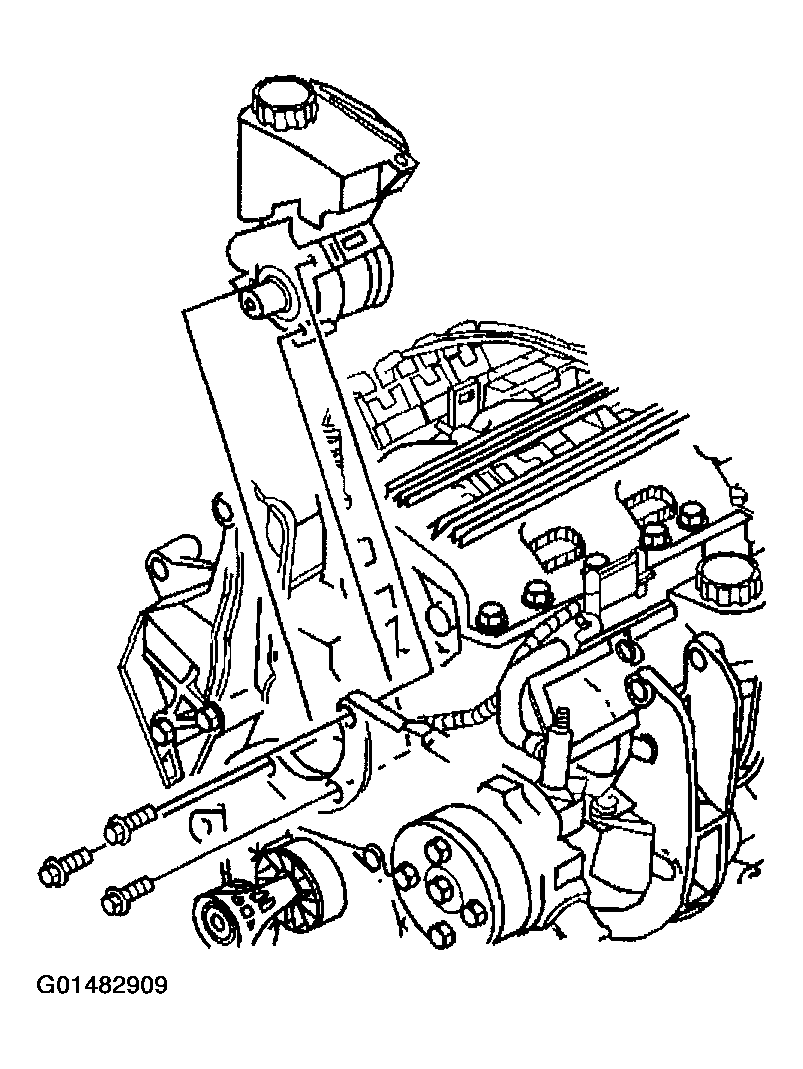

    Fig 3: Removing Bolts From Pump
    G01482909Courtesy of GENERAL MOTORS CORP.
